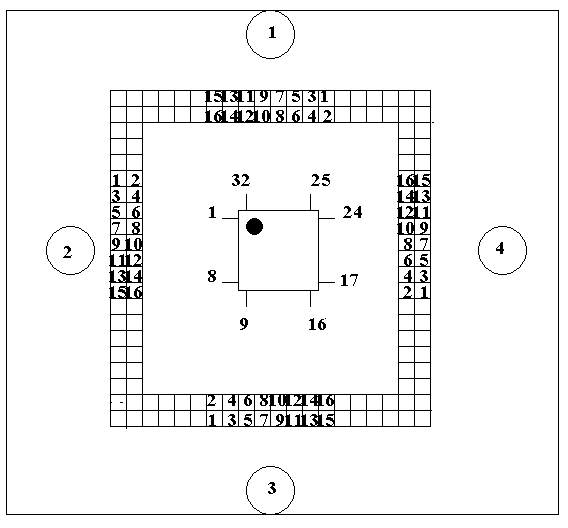

Connections:
| 32 Pin LQFP Socket | Signal Name | Header/pin number HE10 connector |
Comments |
| 1 | PTA7PIA7/ADP7/ IRQ | 2-3 | |
| 2 | VDD | 2-4 | |
| 3 | VSS | 2-6 | |
| 4 | PTG0/EXTAL | 2-7 / 2-8 | |
| 5 | PTG1/ XTAL | 2-9 | |
| 6 | !RESET | 2-10 | |
| 7 | PTE0/ TXD1 | 2-12 / 2-13 | |
| 8 | PTE1/ RXD1 | 2-14 | |
| 9 | PTE2/ !SS | 3-3 | |
| 10 | PTE3/SPSCK | 3-4 / 3-5 | |
| 11 | PTE4/ SCL/ MOSI | 3-6 | |
| 12 | PTE5/SDA//MISO | 3-8 | |
| 13 | PTE6/ TXD2/ TXCAN | 3-9 | |
| 14 | PTE7/ RXD2 / RXCAN | 3-11 | |
| 15 | PTD0/ PID0/ TPM2CH0 | 3-12 / 3-13 | |
| 16 | PTD1/ PID1/ TPM2CH1 | 3-14 | |
| 17 | PT2/PID2/TPM1CH0 | 4-3 | |
| 18 | PTD3/ PID3/ TPM1CH1 | 4-4 / 4-5 | |
| 19 | PTD4/ PID4/ TPM1CH2 | 4-6 | |
| 20 | PTD5/PID5/ TPM1CH3 | 4-8 | |
| 21 | BKGD/MS | 4-9 / 4-10 | |
| 22 | PTB0/ PIB0/ ADP8 | 4-11 | |
| 23 | PTA0/ PIA0/ ADP0/ MCLK | 4-12 / 4-13 | |
| 24 | PTB1/PIB1/ADP9 | 4-14 | |
| 25 | PTA1/ADP1/ACMP+ | 1-3 | |
| 26 | PTA2/ADP2/ACMP- | 1-4 /1-5 | |
| 27 | PTA3/ADP3/ACMP0 | 1-6 | |
| 28 | VSSA/ VREFL | 1-7/1-8 | |
| 29 | VDDA/ VREFH | 1-9 | |
| 30 | PTA4/ PIA4/ ADP4 | 1-11 | |
| 31 | PTA5/PIA5/ ADP5 | 1-12 / 1-13 | |
| 32 | PTA6/ PIA6/ ADP6 | 1-14 |
