Various transistors pinouts - Brochages des transistors les
plus courants
|

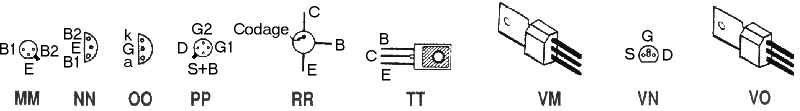

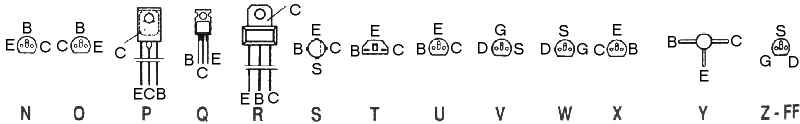

Part Number
|
Pinout
|
type
|
package
|
|
AC126/01 |
B |
PNP |
TO39 |
|
BC 107 |
H |
NPN |
TO18 |
|
BC 108 |
H |
NPN |
TO18 |
|
BC 109 |
H |
NPN |
TO18 |
|
BC 140 |
K |
NPN |
TO39 |
|
BC 141 |
J |
NPN |
TO39 |
|
BC 160 |
K |
PNP |
TO39 |
|
BC 161 |
K |
NPN |
TO39 |
|
BC 177 |
H |
PNP |
TO18 |
|
BC 178 |
H |
PNP |
TO18 |
|
BC 237 |
N |
NPN |
X10 |
|
BC 238 |
N |
NPN |
X10 |
|
BC 239 |
N |
NPN |
X10 |
|
BC 307 |
N |
PNP |
X10 |
|
BC 308 |
N |
PNP |
X10 |
|
BC 327 |
N |
PNP |
X10 |
|
BC 328 |
N |
PNP |
X10 |
|
BC 337 |
N |
NPN |
X10 |
|
BC 338 |
N |
NPN |
X10 |
|
BC 368 |
M |
NPN |
X10 |
|
BC 369 |
M |
PNP |
X10 |
|
BC 517 |
N |
NPN |
X10 |
|
BC 546 |
N |
NPN |
TO92 |
|
BC 547 |
N |
NPN |
TO92 |
|
BC 548 |
N |
NPN |
TO92 |
|
BC 549 |
N |
NPN |
TO 92 |
|
BC 550 |
N |
NPN |
TO92 |
|
BC 556 |
N |
PNP |
TO92 |
|
BC 557 |
N |
PNP |
TO92 |
|
BC 558 |
N |
PNP |
TO92 |
|
BC 559 |
N |
PNP |
TO92 |
|
BC560 |
N |
PNP |
TO92 |
|
BC 639 |
N |
NPN |
TO92 |
|
BC 640 |
N |
PNP |
TO92 |
|
BD 135 |
P |
NPN |
TO126 |
|
BD 136 |
P |
PNP |
TO126 |
|
BD 137 |
P |
NPN |
TO126 |
|
BD 138 |
P |
PNP |
TO126 |
|
BD 139 |
P |
NPN |
TO126 |
|
BD 140 |
P |
PNP |
TO126 |
|
BD 201 |
TT |
NPN |
TOP66 |
|
BD 202 |
TT |
PNP |
TOP66 |
|
BD 203 |
Q |
NPN |
TOP66 |
|
BD 204 |
Q |
NPN |
TOP66 |
|
BD 237 |
P |
NPN |
TO126 |
|
BD 238 |
P |
PNP |
TO126 |
|
BD 241 |
Q |
NPN |
TO220 |
|
BD 242 |
Q |
PNP |
TO220 |
|
BD 243 |
Q |
NPN |
TO220 |
|
BD 244 |
C |
NPN |
TO220 |
|
BD 245 |
AA |
NPN |
SOT93 |
|
BD 246 |
AA |
PNP |
SOT93 |
|
BD 437 |
P |
NPN |
TO126 |
|
BD 438 |
P |
PNP |
TO126 |
|
BD 535 |
Q |
NPN |
TO220 |
|
BD 536 |
Q |
PNP |
TO220 |
|
BD 645 |
Q |
NPN |
TO220 |
|
BD 646 |
Q |
PNP |
TO220 |
|
BD 647 |
Q |
NPN |
TO220 |
|
BD 648 |
Q |
PNP |
TO220 |
|
BD 649 |
Q |
NPN |
TO220 |
|
BD 650 |
Q |
PNP |
TO220 |
|
BD 651 |
Q |
NPN |
TO220 |
|
BD 652 |
Q |
PNP |
TO220 |
|
BD 675 |
P |
NPN |
TO126 |
|
BD 676 |
P |
PNP |
TO126 |
|
BD 677 |
P |
NPN |
TO126 |
|
BD 678 |
P |
PNP |
TO126 |
|
BD 679 |
P |
NPN |
TO126 |
|
BD 680 |
P |
PNP |
TO126 |
|
BD 711 |
Q |
NPN |
TO220 |
|
BD 712 |
Q |
PNP |
TO220 |
|
BD 911 |
Q |
NPN |
TO220 |
|
BD 912 |
Q |
PNP |
TO220 |
|
BDV 64 |
AA |
PNP |
SOT93 |
|
BDV 65 |
AA |
NPN |
SOT93 |
|
BDW 51 |
C |
NPN |
TO3 |
|
BDW 52 |
C |
PNP |
TO3 |
|
BDW 93 |
Q |
NPN |
TO220 |
|
BDW 94 |
Q |
PNP |
TO220 |
|
BDX 18 |
C |
PNP |
TO3 |
|
BDX 33 |
Q |
NPN |
TO220 |
|
BDX 34 |
Q |
PNP |
TO220 |
|
BDX 53 |
Q |
NPN |
TO220 |
|
BDX 54 |
Q |
PNP |
TO220 |
|
BDX 66 |
C |
PNP Darl |
TO3 |
|
BDX 67 |
C |
NPN |
TO3 |
|
BF 173 |
G |
NPN |
TO72 |
|
BF 245 |
W |
J-FET |
TO92 |
|
BF 259 |
J |
NPN |
TO39 |
|
BF 422 |
M |
NPN |
TO92 |
|
BF 470 |
R |
NPN |
X17 |
|
BF 494 |
U |
NPN |
TO92 |
|
BF 758 |
P |
NPN |
X17 |
|
BF 869 |
¨P |
NPN |
TO202 |
|
BF 870 |
P |
PNP |
TO202 |
|
BF 871 |
P |
NPN |
X37 |
|
BF 872 |
P |
PNP |
TO202 |
|
BF 960 |
MOS |
FET N |
X95 |
|
BF 970 |
RR |
PNP |
X38 |
|
BFR 90 |
Y |
NPN |
SOT37 |
|
BFR 91 |
Y |
NPN |
SOT37 |
|
BFW 92 |
RR |
NPN |
X32 |
|
BS 170 |
VN |
V.MOS.N |
TO92 |
|
BU 208A |
C |
NPN |
TO3 |
|
BU 208D |
C |
NPN |
TO3 |
|
BU 326A |
C |
NPN |
TO3 |
|
BU 406 |
Q |
NPN |
TO220 |
|
BU 407 |
Q |
NPN |
TO220 |
|
BU 408 |
Q |
NPN |
TO220 |
|
BU 426A |
AA |
NPN |
TO3 |
|
BU 508A |
AA |
NPN |
TOP3 |
|
BU 508D |
AA |
NPN |
TOP3 |
|
BU 806 |
C |
NPN Darl |
TO220 |
|
BU 807 |
C |
NPN Darl |
TO220 |
|
BU 826 |
AA |
NPN Darl |
TOP¨3 |
|
BUT 11A |
P |
NPN |
TO220 |
|
BUT 11AF |
P |
NPN |
TO220 |
|
BUT 12A |
P |
NPN |
TO220 |
|
BUT 12AF |
P |
NPN |
TO220 |
|
BUV 20 |
C |
NPN |
TO3 |
|
BUV 48 |
AA |
NPN |
TOP3 |
|
BUX 37 = BU 931R |
C |
NPN |
TO3 |
|
BUX 81 |
C |
NPN |
TO3 |
|
BUX 84 |
AA |
NPN |
TO220 |
|
BUY 69 |
C |
NPN |
TO3 |
|
BUZ 11 |
VO |
MOS.FET.N |
T220AB |
|
IRF 520 |
MOS.FET.N |
T220AB |
|
|
IRF 530 |
MOS.FET.N |
T220AB |
|
|
IRF 540 |
MOS.FET.N |
T220AB |
|
|
MJ 2501 |
C |
PNP |
TO3 |
|
MJ 2955 |
C |
PNP |
TO3 |
|
MJ 3001 |
C |
NPN Darl |
TO3 |
|
MJ 15004 = 15024 |
C |
NPN |
TO3 |
|
MJE 2955 |
KK |
PNP |
TO220 |
|
MJE 3055 |
KK |
NPN |
TO220 |
|
MPSA 42 |
O |
NPN |
TO92 |
|
MPSA 55 |
O |
PNP |
TO92 |
|
MFR 477 |
KK |
NPN |
TO220 |
|
MFR 455 |
LL |
PNP |
X57F |
|
S2000A |
AA |
NPN |
ISO218 |
|
S2000A3 |
AA |
NPN |
ISO218 |
|
S2000AF |
AA |
NPN |
ISO218 |
|
S2055A |
AA |
NPN |
ISO218 |
|
S2055AF |
AA |
NPN |
ISO218 |
|
S2530A |
C |
NPN |
TO3 |
|
TIP 29 |
Q |
NPN |
TO220 |
|
TIP 30 |
Q |
PNP |
TO220 |
|
TIP 31 |
Q |
NPN |
TO220 |
|
TIP 32 |
Q |
PNP |
TO220 |
|
TIP 33 |
AA |
NPN |
TOP3 |
|
TIP 34 |
AA |
PNP |
TOP3 |
|
TIP 35 |
AA |
NPN |
TOP3 |
|
TIP 41 |
Q |
NPN |
TO220 |
|
TIP 42 |
Q |
PNP |
TO220 |
|
TIP 111 = 112 |
Q |
NPN Darl |
TO220 |
|
TO 121 |
Q |
NPN Darl |
TO220 |
|
TIP 126 |
Q |
PNP Darl |
TO220 |
|
TIP 141 |
AA |
NPN Darl |
TOP3 |
|
TIP 147 |
AA |
PNA Darl |
TOP3 |
|
TIP 2955 |
AA |
PNP |
TOP3 |
|
TIP 3055 |
AA |
PNP |
TOP3 |
|
2N 1613 |
J |
NPN |
TO5 |
|
2N 1711 |
J |
NPN |
TO5 |
|
2N1893 |
J |
NPN |
TO5 |
|
2N 2219A |
J |
NPN |
TO5 |
|
2N 2222A Métal |
H |
NPN |
TO18 |
|
2N 2222 Plastique |
O |
NPN |
TO92 |
|
2N 2369 = BSX20 |
H |
NPN |
TO18 |
|
2N 2369 Plast |
O |
NPN |
TO92 |
|
2N 2484 |
H |
NPN |
TO18 |
|
2N2646 |
MM |
UJT |
TO18 |
|
2N 2894 |
K |
PNP |
TO18 |
|
2N 2905A |
J |
PNP |
TO5 |
|
2N 2907A Métal |
H |
PNP |
TO18 |
|
2N 2907A Plastique |
O |
PNP |
TO92 |
|
2N 3053 |
J |
PNP |
TO5 |
|
2N 3055 |
C |
NPN |
TO3 |
|
2N 3442 |
C |
NPN |
TO3 |
|
2N 3771 |
C |
NPN |
TO3 |
|
2N 3772 |
C |
NPN |
TO3 |
|
2N 3773 |
C |
NPN |
TO3 |
|
2N 3819 |
V |
FET.N |
TO92 |
|
2N3866 |
J |
NPN |
TO39 |
|
2N 3904 |
O |
NPN |
TO92 |
|
2N 3906 |
O |
PNP |
TO92 |
|
2N 4392 |
VN |
J.FET.N |
TO18 |
|
2N 4416 |
DD |
MOS.FET.N |
TO92 |
|
2N 5416 |
J |
PNP |
TO39 |
M-à-j: le 14 juillet, 2015
