Carte EGA Bus PC AT/XT EG-3000
Made in Taiwan R.O.C. serial GM 007133

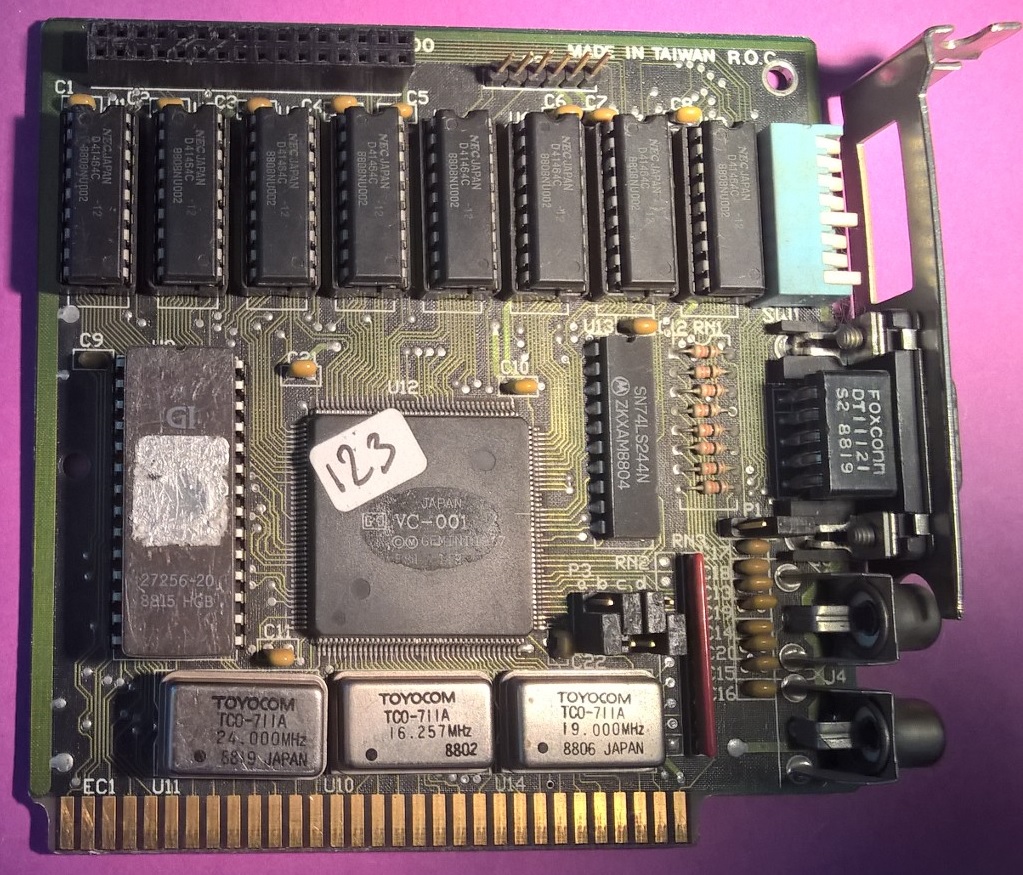

This EGA card EGA-3000 contains the following chips:

- 8 DRAM memories U1..U8 DRAM NEC UPD41464C DYNAMIC NMOS RAM on sockets (dip-16)
- one buffer U13 74LS244 datecode 8804
- one controller U12 VC-001 (c) GEMINI 1987 PQFP-
- une EPROM U9 General INstruments (GI) 27256-20 (32ko) GEMINI VC-001 IBM Compatible EGA Bios (V.2.3) Copyright (c) Gemini Technology Inc 1987-1988 (CS 9A7E)
- 3 oscillators TOYOCOM type TCO-711A U10 16.257 MHz, U14 19.000 MHz et U11 24.000 MHz (on socket).
- network BI Technologies M10-1-472J
- one 8-pins dipswitch piano set as 1,4 OFF.
- jumpers P1 coté partie connecteur, P3 a,d bottom et P3 b,c top
- connector P2 HE14 6 points , connector J1 HE10 Femelle 32 points.
- 2 RCA composite outputs and one SUBD-9 EGA output


Configuration settings

Driver Zip EG3000.ZIP (Shift-Click to Download 422Kb) formerly hosted by http://tw.dfi.com.tw/ftp/video_cards/ISA/eg3000/

Also go back thru parent directories,
this is a dfi site with any manuals and
info on dfi products, .

QUADRAM EGAVGA 17-9076-01

CHIPS P82C435 (plcc-84) Japan

CHIPS P82A436 (plcc-68) Japan

EPROM 28-pin TMS27C128--2JL (Texas)

Fujitsu MB81464-12 (x8)

Texas SN74LS245N (x3)

Texas SN74LS153N

Grayhill 4-position dip-swictch

RCA outputs (x2) and SUB-D9 EGA output

24.0000MHz & 16.257MHz oscillators

J6 32-pin double HE-10 female connector extension



(c) 1987 ASSY 22610 OEM 5.1 REV.1 (made in USA) EGA card




PARADISE 38315B PEGA2A (plcc-84)

PARADISE PBI38306C datecode 8841 (plcc-68)

General Instruments (GI) 27C256B

Texas SN74LS245N

Hitachi HD74LS244P

Sharp LH8264 (x8)

Hitachi HD74LS153P

32-pin double HE10 option connector

25.0000MHz, 16.257MHz and 27.256MHz oscillators

5-positions dip-switch

RCA outputs (x2) and Subd-9 EGA Output

**********

Si vous recherchez des informations pour cette carte EGA , vous pouvez me contacter par e-mail : matthieu.benoit@free.fr .

De même si vous avez des informations sur cette carte EGA, n'hésitez pas à contribuer à cette page.

If you look further informations about this EGA card, Please Contact me by email : matthieu.benoit@free.fr

Also if you have data about this EGA card do not hesitate to contribute to this page.

link to get settings for UNIDENTIFIED boards https://arvutimuuseum.ee/th99/z/cunid_1.htm

link https://arvutimuuseum.ee/th99/#5 Jumper settings for 18655 devices

See http://old.vgamuseum.info/home/270-gemini-vc-001.html

http://greyghost.mooo.com/eg3000/

If you are looking forward some data or repair parts about this electronic card, you can contact me by e-mail at matthieu.benoit@free.fr
