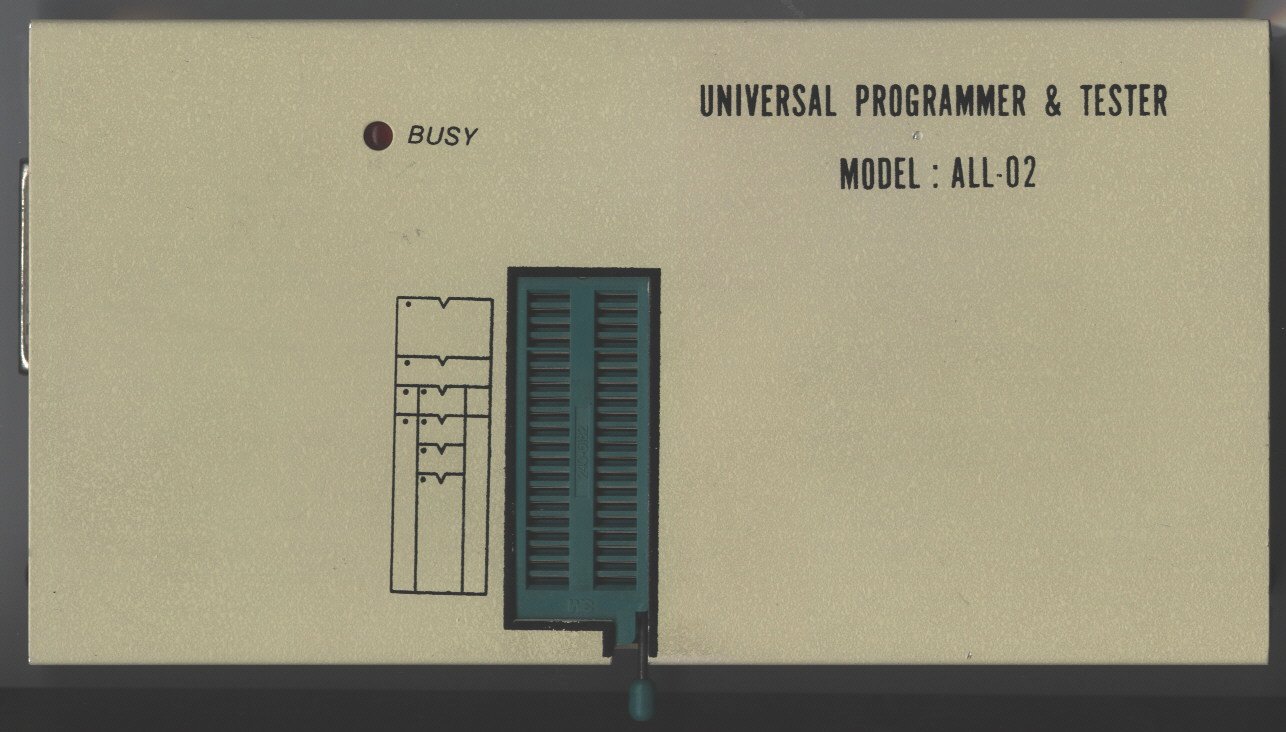

HILO ALL-02 Universal Programmer and Tester

All02 Manual (MOD-MUP programmer)
(PDF, 47 pages - 1.63 Mb)
Tha ALL02 programmer it seems to me that it is identical to MCT MOD-MUP Universal Logic Programmer (Modular Circuit Technology, the software for the MOD-MUP is in ftp://ftp.jdr.com/programmers/ )


Interface Card CSA-03


this programmer was also rebranded with JDR and Xeltek brands.

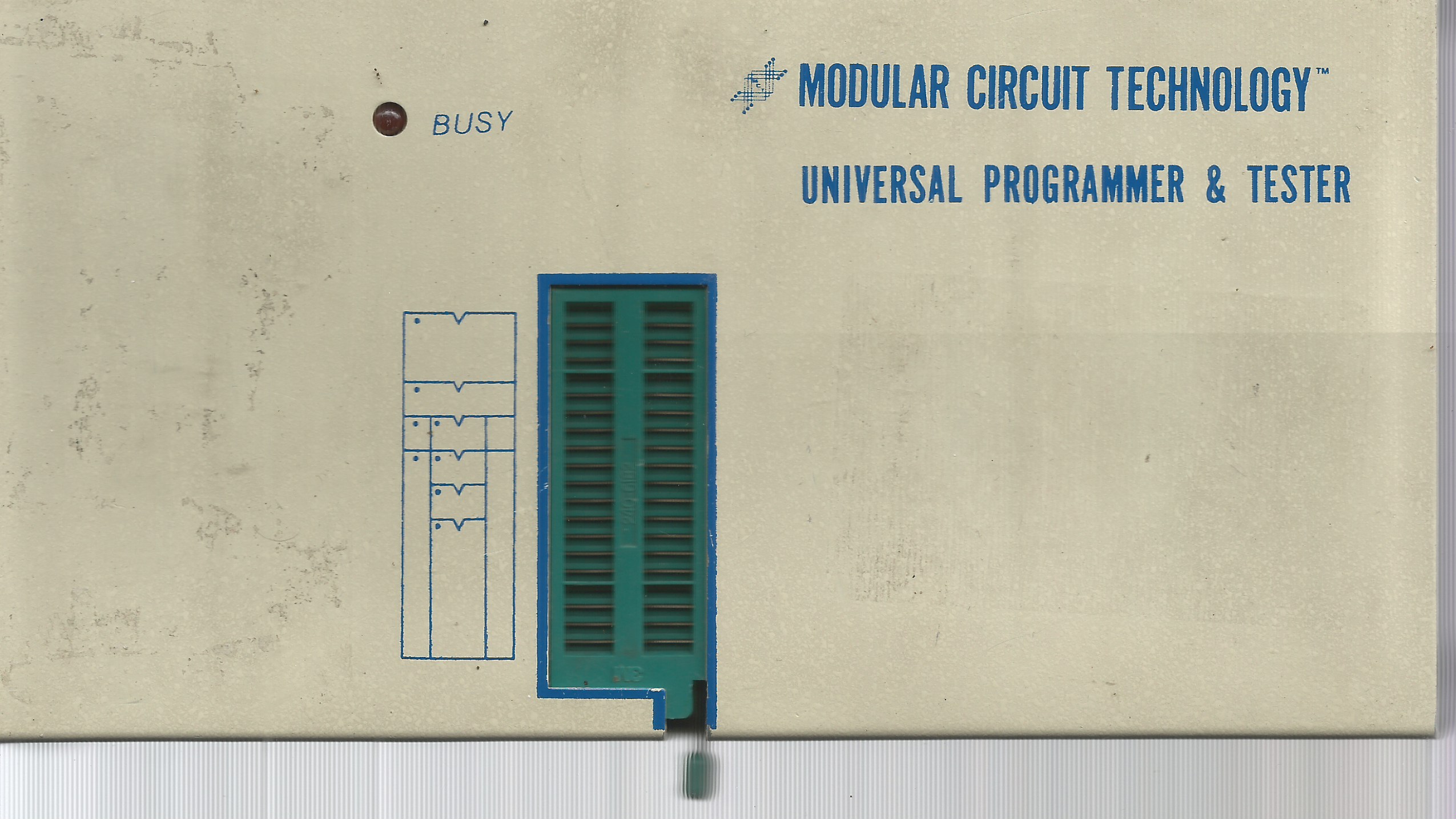

"MCT" (Modular Circuit Technology") is the house brand of JDR Microdevices. See http://www.jdr.com



Software for Modular Circuit Technology universal programmer & tester software : archive floppy disk (.ZIP - 206Kb)

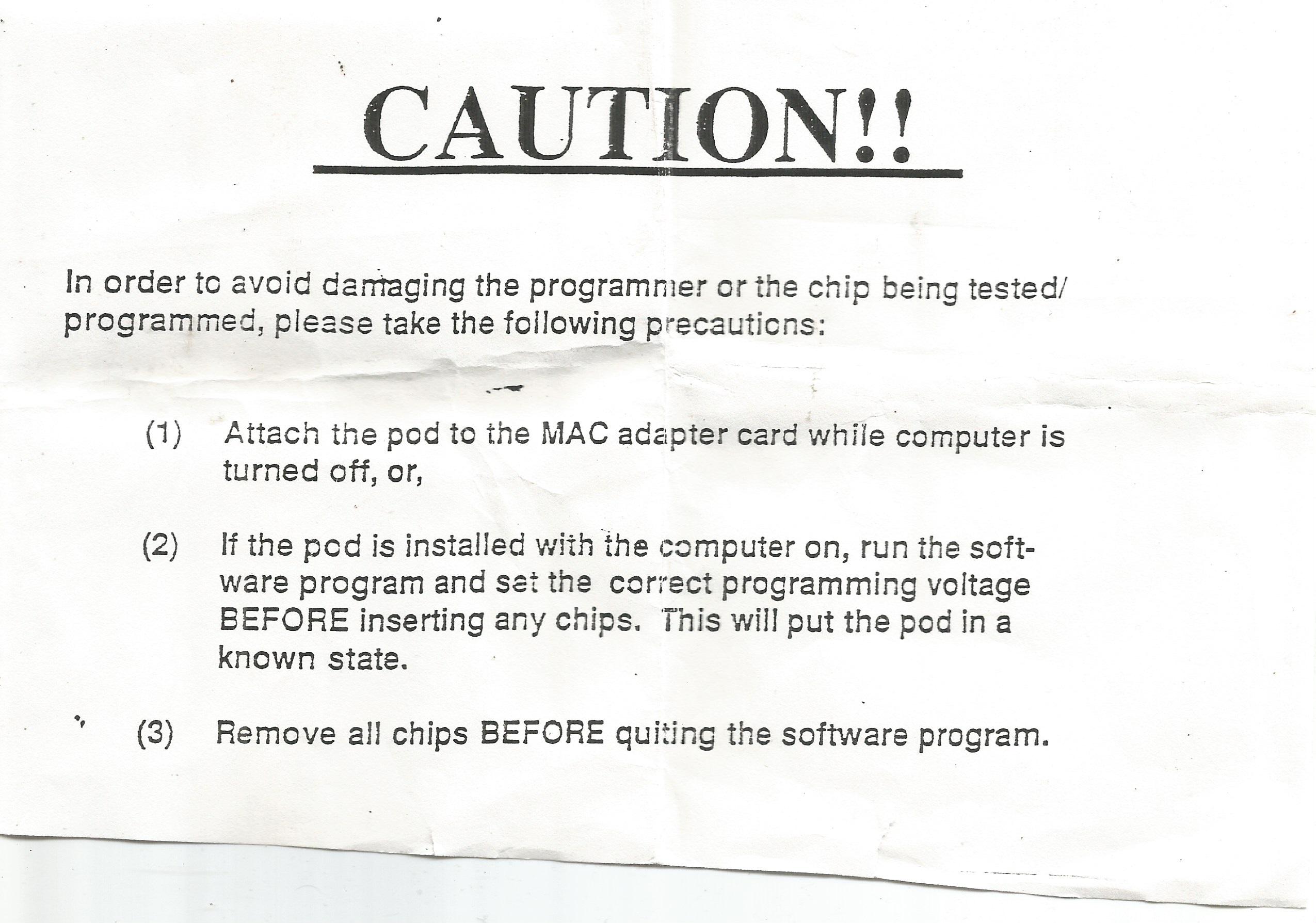

Warning

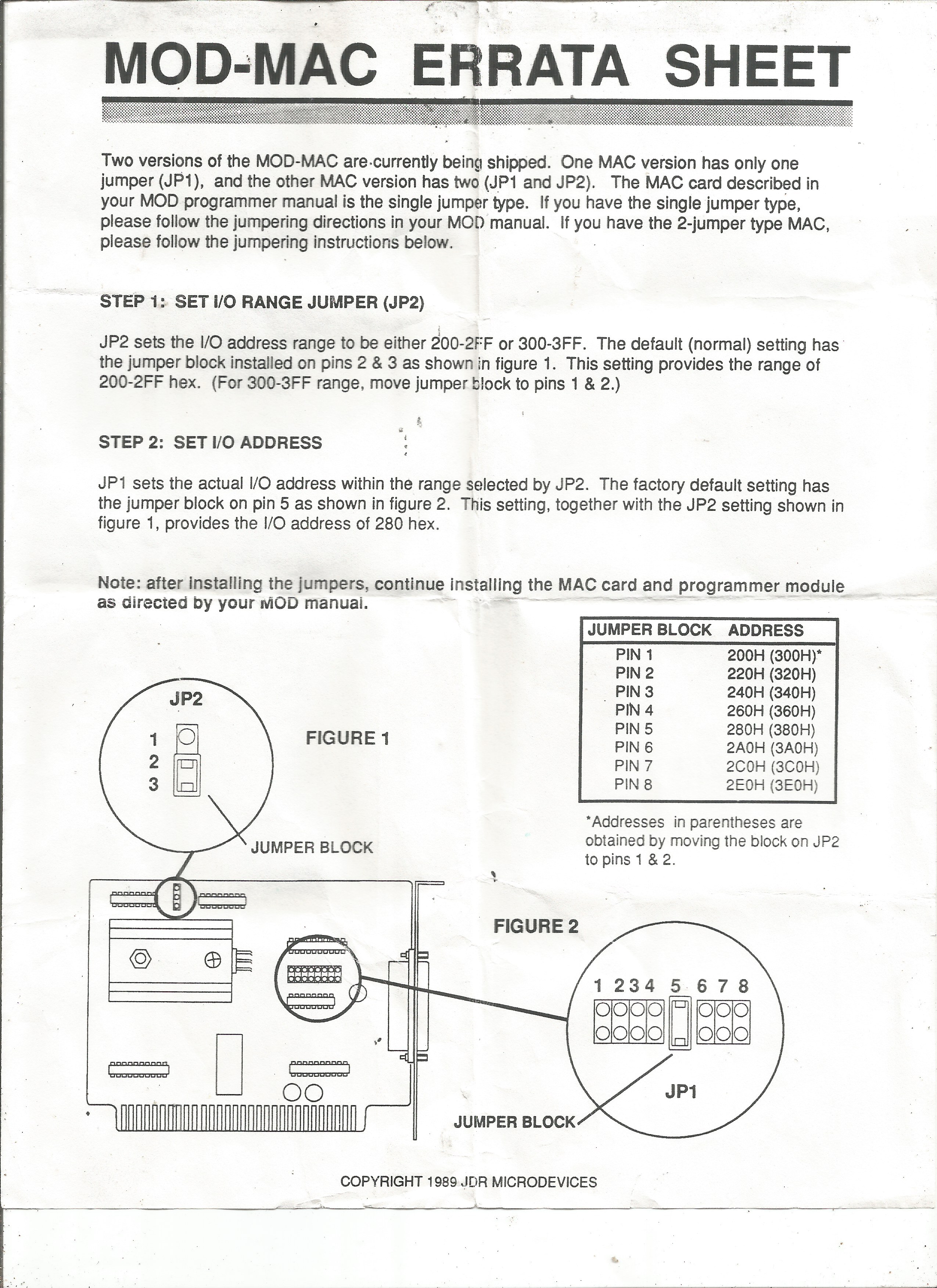

MOD-MAC ERRATA SHEET

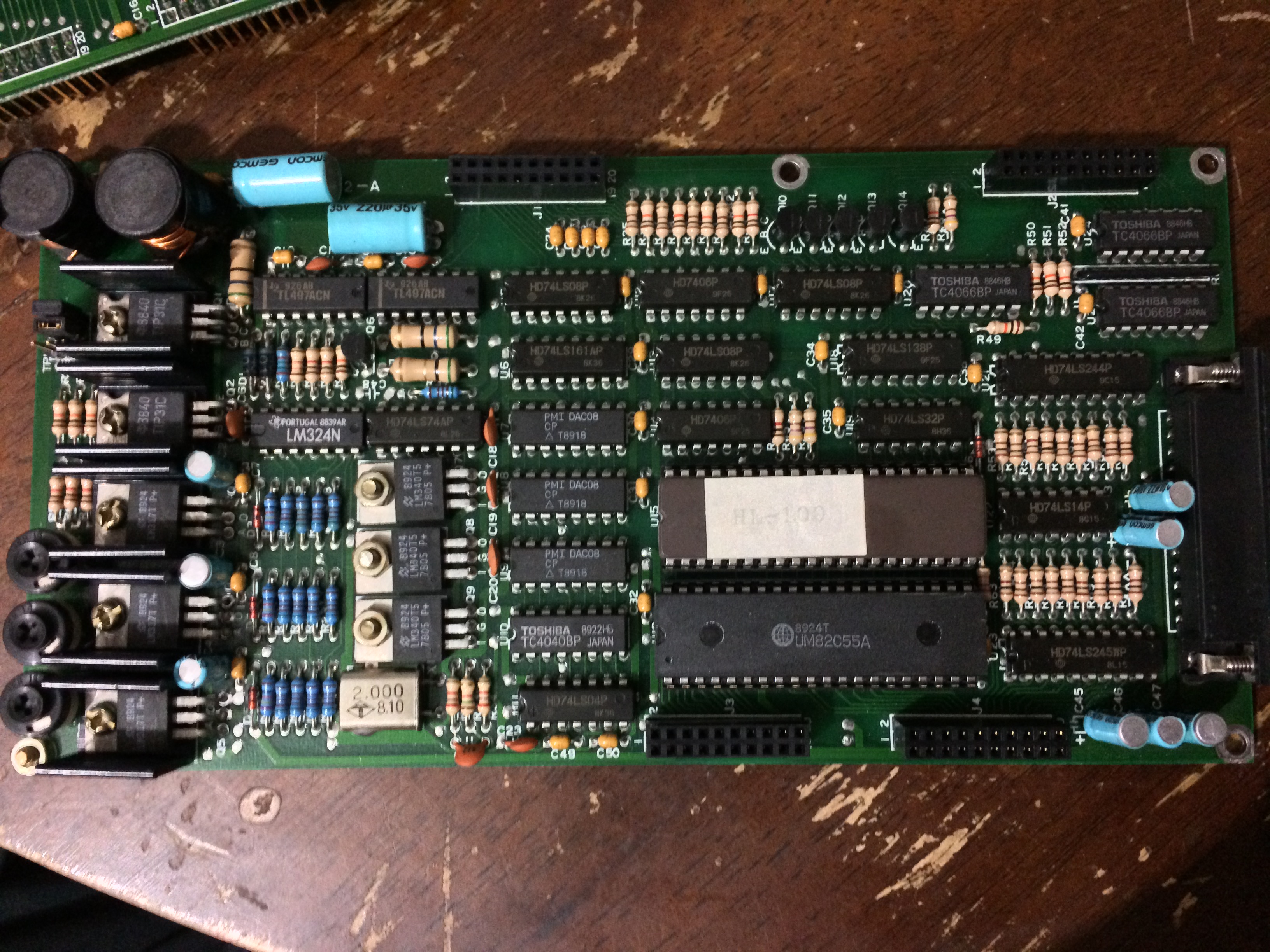

MCT programmer_lower_card includes a NEC D8741AD and UMC UM82C55A U15 HL-100



<Click on image to enlarge>

lower card solder_side

<Click on image to enlarge>

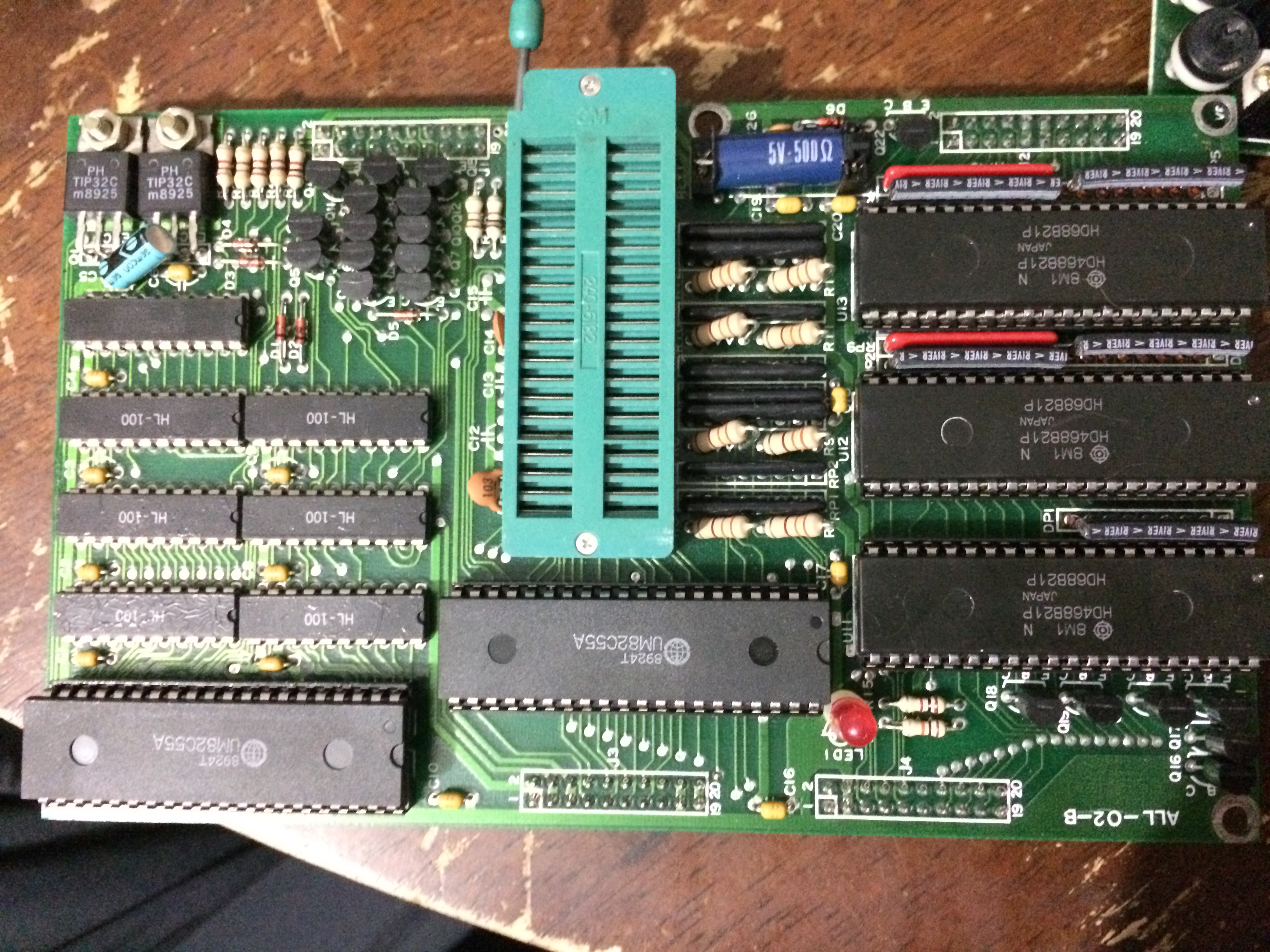

upper card top includes Hitachi HD6821P & UMC UM82C55A chips; U2-U8 HL-100 (top plate) UDN2987A


<Click on image to enlarge>

MCT_programmer top card _solder side

<Click on image to enlarge>

Software

- newest Release software to use with hilo all-02 programmer (3 floppy disks content inside this archive) all02.zip (ZIP Archive - 415 Kb)- This archive contains :
1st orginal : 9/2/'89
2nd update : 10/26/'89
a. Error on palform PLC20V8.FRM(disk # 2) for Signetics GAL(PLC20V8) solved.
3rd update : 11/14/'89
a. Add A-series GAL 16V8A & 20V8A.
4th update : 12/19/'89
a. Error on "column 32" for GAL 20V8A solved.
5th update : 1/25/'90 to modify "Programming algorithm" of NS EPROM (27c64 27c128 27c256 27c512).
6th update : 1. Modify "programming algorithm" for EPP02.EXE V3.5.
2. Add 2M bits EPROM for EPP02.EXE
All of the documentation files are written by using "WORD STAR".
-----------------------------------------------------------------------------------------------------------------------

The Software upgraded as showned below.

NOTE : 1. Using " HEXOBJ.EXE & HEXOBJ2.EXE " to instead of " HEXOBJ02.EXE ".

Disk #1 :
EPP02.EXE
1.v3.0 -- 1st edition.
2.v3.4 -- "system hold" solved.
Modify EPROM type.
3.v3.5 -- to modify "Programming algorithm" of NS
EPROM.
3.v3.6 -- 1. to modify "Programming algorithm" on V3.5.
2. Add 2M bits EPROM for INTEL, NEC & TOSHIBA.
BPP02.EXE
1.v3.0 -- 1st edition.
2.v3.1 -- Increase pulse width for AMD.
3.v3.2 -- Increase pulse width for TI.
3.v3.3 -- Error on AMD 27S12/27S13 solved
48P02.EXE
1.v3.0 -- 1st edition.
2.v3.3 -- Drop programming voltage for 8742.
2.v3.4 -- Error on reading & programming 8742 (by FUJITSU & MITSUBISHI) are solved.
51P02.EXE
1.v3.0 -- 1st edition.
2.v3.4 -- Add 8753H,87C521,87C541 for AMD.
Z8P02.EXE
1.v3.0 -- 1st edition.
2.v3.2 -- a. Add Zilog ome time PROM Z86E21.
b. Modify programming Voltage for SGS-Z86E11/21
DMT02.EXE
1.v3.0 -- 1st edition.
2.v3.1 -- Error on " TTL 51,75,90,92,93 " solved.
HEXOBJ.EXE
1.v3.0 -- 1st edition.
2.v4.0 -- new software for 64k HEX file.
HEXOBJ2.EXE
1.v3.0 -- 1st edition.
2.v4.0 -- new software for 128k HEX file.
DASM48.EXE
1.v3.0 -- 1st edition.
SETUP02.EXE
1.v3.0 -- 1st edition.
Disk #2 :
PAP02.EXE
1.v3.0 -- 1st edition.
2.v3.4 -- a. Delete TIPAL.
b. Increase PLUS16R4,16R6,16R8,16L8,20R4,20R6, 20R8,20L10 for Signetics.
c. Modify TIBPAL20L10 & MMI-B type.
PAPA02.EXE
1.v3.0 -- 1st edition.
2.v3.2 -- Add MMI-Ctype & SAMSUNG
IOCHK02.EXE
1.v3.0 -- 1st edition.
DASM51.EXE
1.v3.0 -- 1st edition.
20G10-02.EXE
1.v3.0 -- 1st edition.
PARTS02.LST
1.v3.0 -- 1st edition.
2.V3.1 -- Modified.
PALFORM <DIR>
1.v3.0 -- 1st edition.
2.v3.4 -- a. Add palform for 22VP10 22G10 PLC16L8 PLC16R4 PLUS16R8 PLUS20L8 PLUS20R4 PLUS20R6 PLUS20R8 PLC18V8Z PLC22V8Z AmPAL18P8
3.v3.5 -- error on palform PLC20V8.FRM solved. AUG. 26 '89
Disk #3
22V10-02.EXE
1.v3.0 -- 1st edition.
2.v3.4 -- a. Error on " TICPAL-22V10 " solved.
b. Error on " TIBPAL-22V10 " solved.
c. Add TIBPAL-22VP10, MMI-CPAL22V10.
GAL02.EXE
1.v3.0 -- 1st edition.
2.v3.1 -- File load error solved.
3.v3.20 -- 11/14/'89. Add A-series GAL 16V8A & 20V8A.
4.v3.30 -- 12/18/'89. Error on "column 32" for GAL 20V8A solved.
S-GAL02.EXE
1.v3.0 -- 1st edition released.
2.v3.1 -- a. Pin assignment (by Signetics) error solved.
b. Add PLC18V8Z & 20V8Z.
3.v3.2 -- a. error on palform PLC20V8.FRM solved. AUG. 26 '89
FPL02.EXE
1.v3.0 -- 1st edition released.
2.v3.1 -- Modify programming voltage & pulse width.
A18P8-02.EXE
1.v1.0 -- 8/24/'89. 1st edition released for AMD-18p8.
PEEL02.EXE
1.v3.0 -- 1st edition released.
2.v3.1 -- Drop programming voltage.
3.v3.2 -- a. 8/16/'89. Drop programming voltage for ICT PEEL.
b. Increase programming voltage for AMI GOULD HYUNDAI.
MANUAL.DOC
1.v3.0 -- 3/30/'89. 1st edition.
2.v3.1 -- 8/24/'89. Modify page 1-2 & page 1-3.
TEST02.EXE
1.v3.0 -- 1st edition.

changes on this archive:
EPP02.EXE

Modify EPROM type.

3.v3.5 -- to modify "Programming algorithm" of NS EPROM.
3.v3.6 --1. to modify "Programming algorithm" on V3.5.

2. Add 2M bits EPROM for INTEL, NEC & TOSHIBA.

PALFORM <DIR>

3.v3.5 -- error on palform PLC20V8.FRM solved. AUG. 26 '89

GAL02.EXE 3.v3.20 -- 11/14/'89. Add A-series GAL 16V8A & 20V8A.

4.v3.30 -- 12/18/'89. Error on "column 32" for GAL 20V8A solved.


S-GAL02.EXE

3.v3.2 -- a. error on palform PLC20V8.FRM solved. AUG. 26 '89
