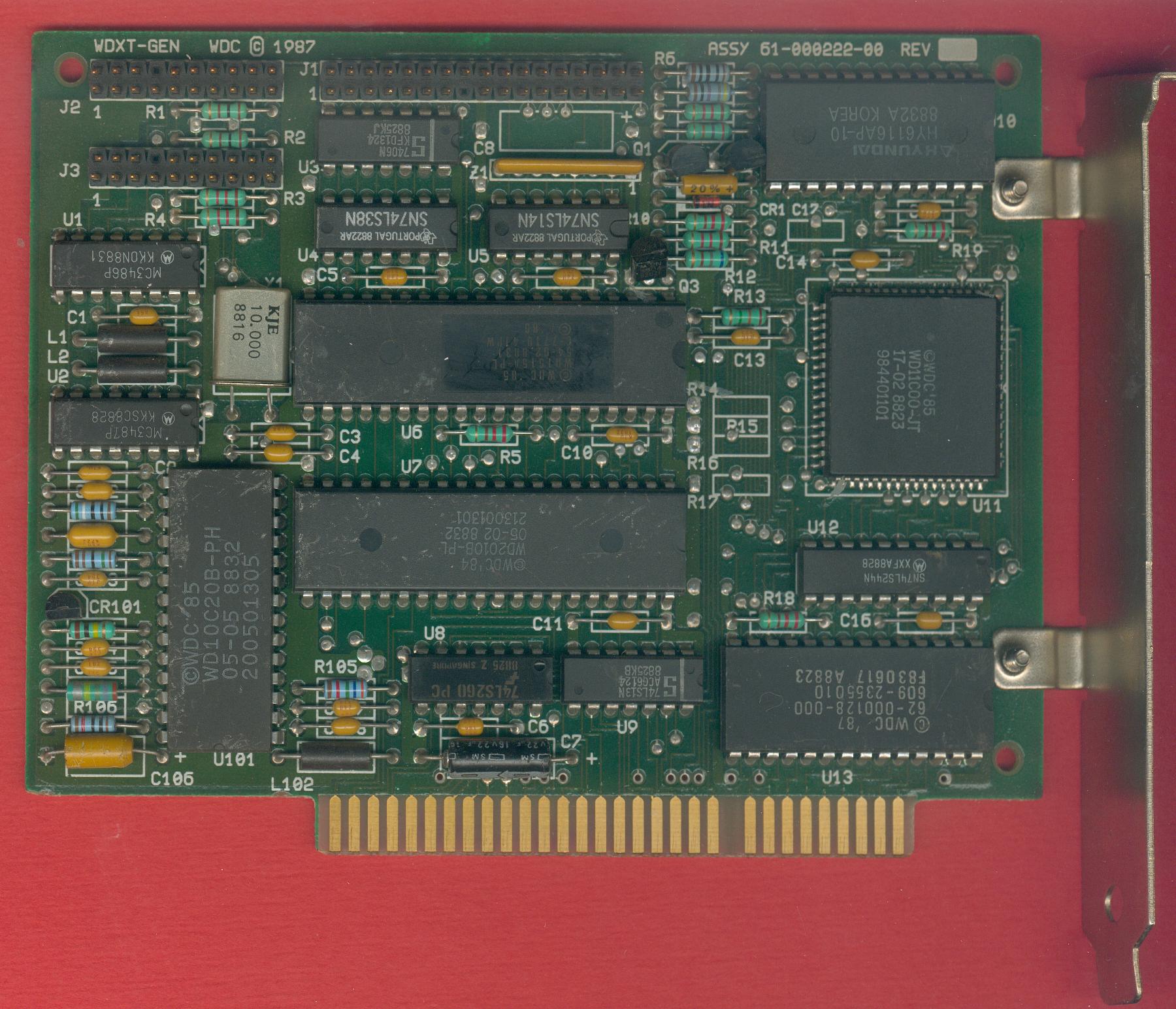

Western Digital WDXT-GEN ISA Card FLOPPY HDD (c) 1987

ASSY 61-000222-00 WDXT-GEN WDC (c) 1987

Resources page

61-000222-06 8842 WDXTGEN F300 X12 made in Ireland

Circuits used in this card

Western Digital WD2010B-PL (c) WDC '84

WD11C00-JT 17-02 datecode 8823(PLCC-68) (c) WDC '85

HY6116 SRAM (DIP-24)

WD1015A-PL (c) WDC '85

WD10C20B-PH (c) WDC '85

62-000128-000 (c) WDC '87

7406, 74LS14, 74LS32, MC3486, MC3487, 74LS244, 74LS13, 74LS260

Western Digital Corporation Storage Management Products Handbook Addendum January, 1985

If you look forward for other information about this card, do not hesitate to contact me by e-mail at: matthieu.benoit@free.fr .
Important Notice: Also if you have any data about this kind of interface, do not hesitate to contribute to this page.
