Compaq DeskPro 466
resources page


FCC ID: CNT75MDACN4

Compaq Deskpro Desktop PC 466

hp.com home
Software & Driver Downloads - Compaq Deskpro Desktop PC 466

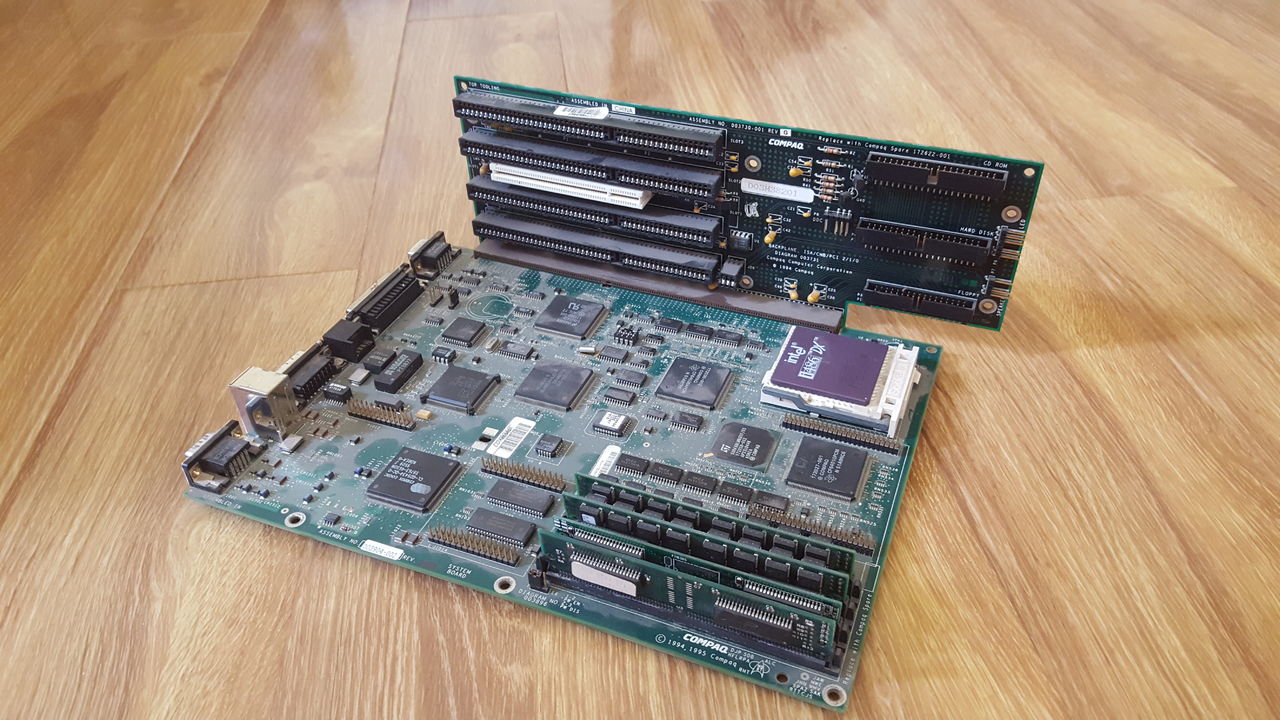

Motherboard component side (c) 1994 Compaq

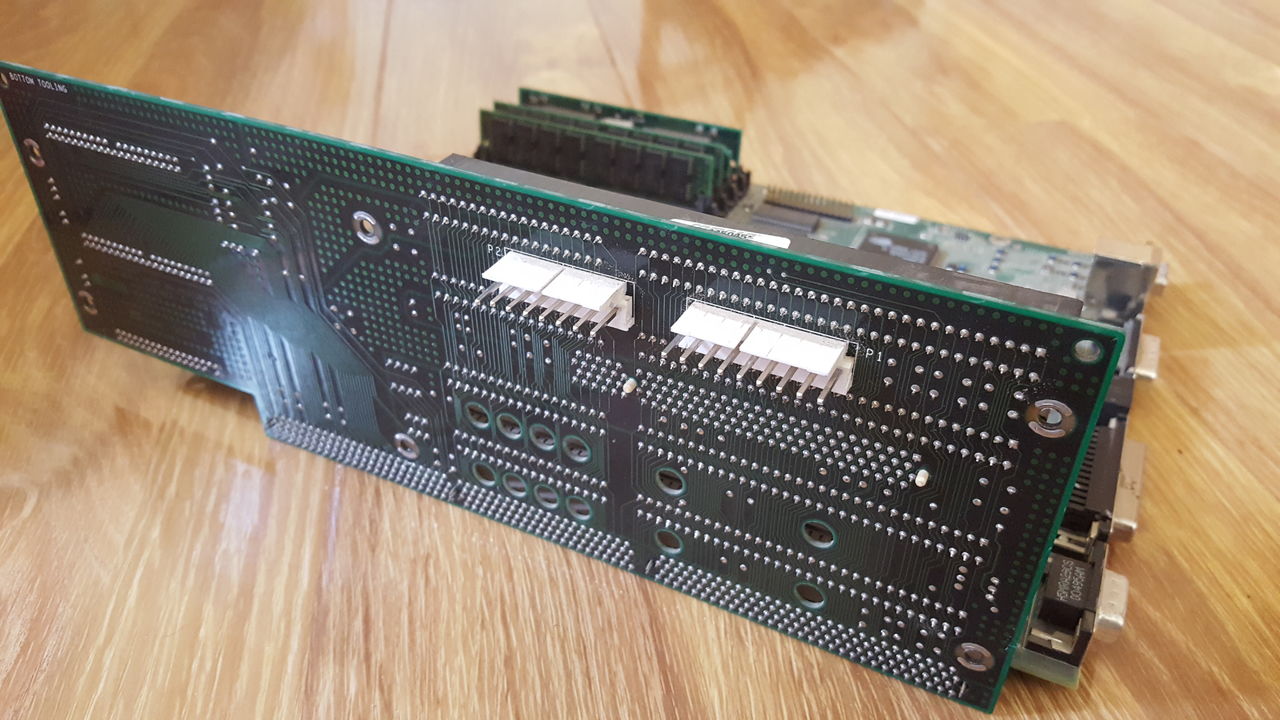

solder_side

Cirrus Logic CL-GD5434-QC-D 42782-4650N datecode 9517 Korea

AMD PCnet (tm)-PCI AM79C970KC datecode 9512 (c) 1993AMD

Intel C7 LS140878 128251-001 (c) Compaq 91 (c) Intel 1977 (plcc-44)

National Semiconductor NMC93C46N

ICS 7110 9449 ICS9158-03B (SO-24)

NEC µPD93132GD-5BD (c) Compaq 172029-002 datecode 9511 Japan

Flash Eprom (c) Compaq 1995 172587-011 (plcc-32rect) Intel N28F020-150 (M) (c) '88 '93 2048K (256K X 8) CMOS FLASH MEMORY

NEC µPD65804GDDD-024 datecode 9508 Japan

National S9506AX Compaq 129382-005 (M) NSC T2

TC5X86/133 1545-006.A00 CE 1545 REV G Kingston

Texas Instruments 172028-002 (M) Compaq CF64639AGFN 4278093-N 53-7 Korea

Texas Instrument 172027-001 (M) COMPAQ CF64010PCM N 52C043W

MT4C16257DJ (USA) video RAM x2

SEC Korea KM48C2100AJ-7 x4

VALOR ELECTRONICS PT3877

VALOR ELECTRONICS PT3983

VALOR ELECTRONICS ST7030 http://www.pulseeng.com/index.php?460

AMD AmPALCE16V8 (plcc-20)

Rayovac Lithium 3 Volts BR2335 (made in USA)



µP TC5X86/133 TurboChip Kingston 1545-006.A00 1545 Rev. G

Power Supply Series PS2025 Compaq Model PS-5151-3F

solder side

Compaq Deskpro Troubleshooting guide (PDF- 50 pages - 655Kb)

Compaq Deskpro 466 SP4703.exe (exe file - 2.10Mb)







System board:

Assembly no : 003904-001 Rev B

Board no: 003897-001 (written on the solder side/bottom)

Diagram no : 003896

Manuf.date : ‘94’95 COMPAQ

Custom Compaq + Texas Instruments chipsets CF64010PCM,CF64538APCM,CF6459APCM

Cirrus logic video chip: CL-GD5434-QC-D

Compaq label:*45045*

Barcode: *A+h3BW869J*

Riser card:

Assemblyy no: 003730-001(repl w/compaq spare 172622-001) Rev G,

Compaq label: *45045*

Manuf.date : ‘94 COMPAQ assembled in china

Diagram : 003731

Label: D03M38201 OR DO3M382O1 (0 or O ???)
