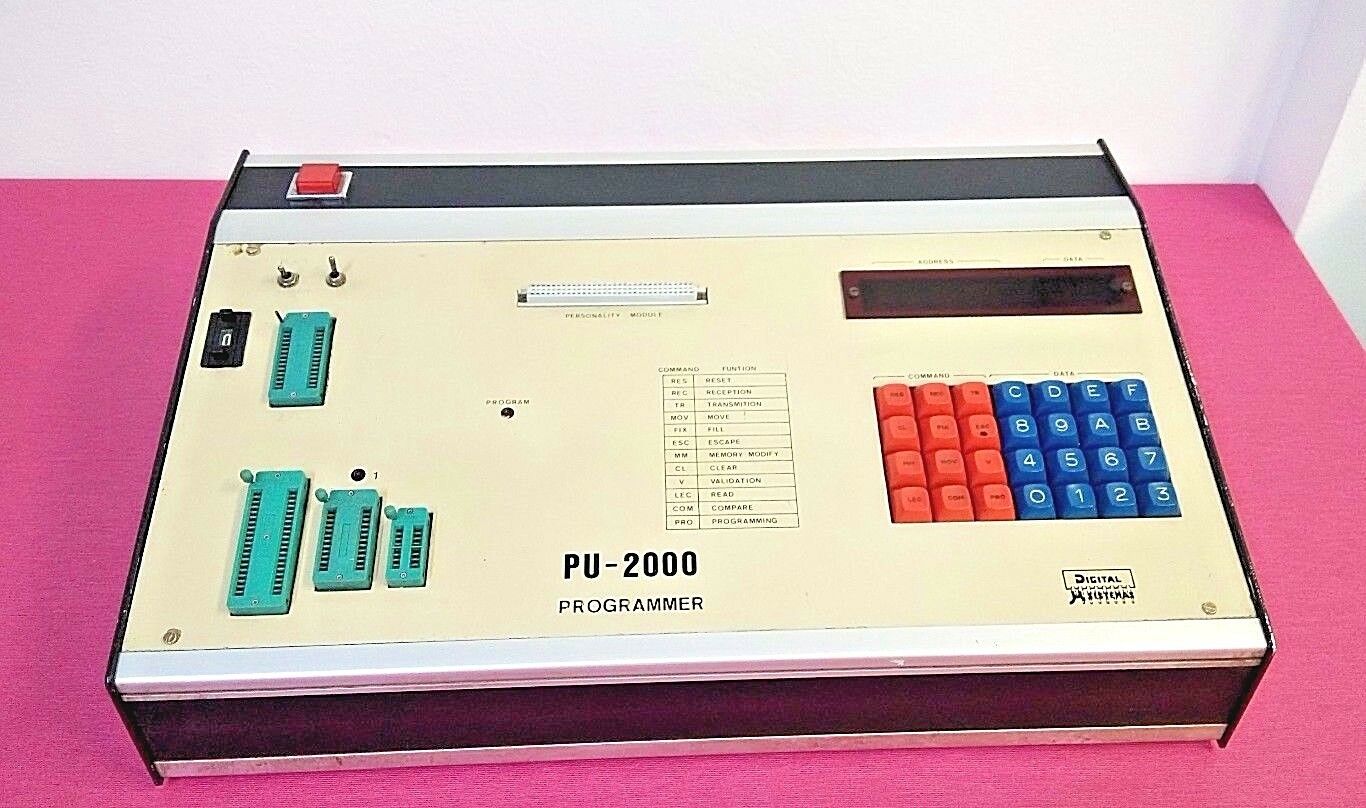

DIGITAL µSISTEMAS PU-2000 Eprom programmer resources page
digital microsistemas PU-2000 devices programmer.- resources page

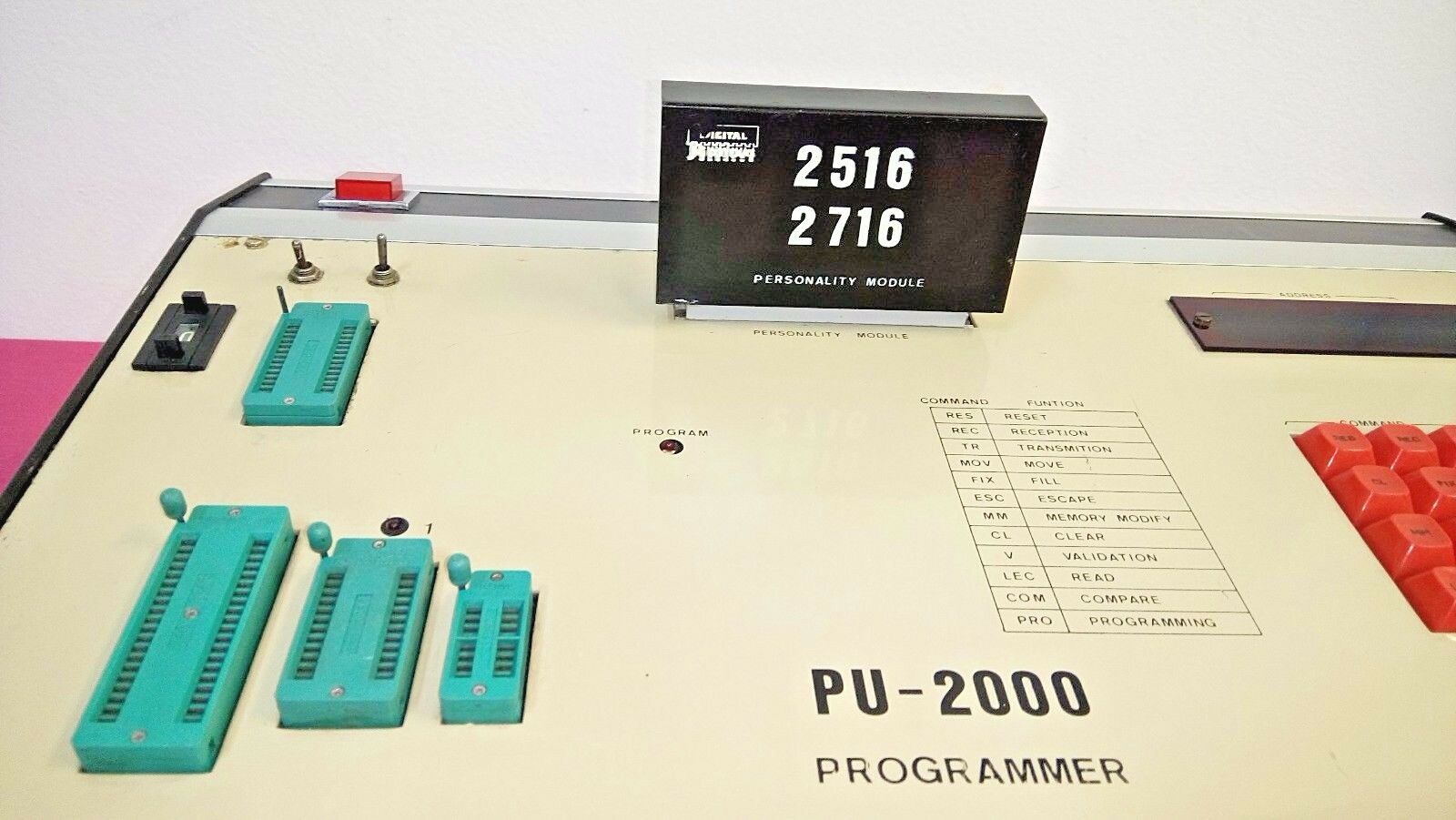

2516, 2716 personality Module , programmer with RS-232 connexion

This programmer is based on Intel D8085A @6.144 MHz
http://bitsavers.informatik.uni-stuttgart.de/components/intel/_dataBooks/1981_Intel_Component_Data_Catalog.pdf page 351

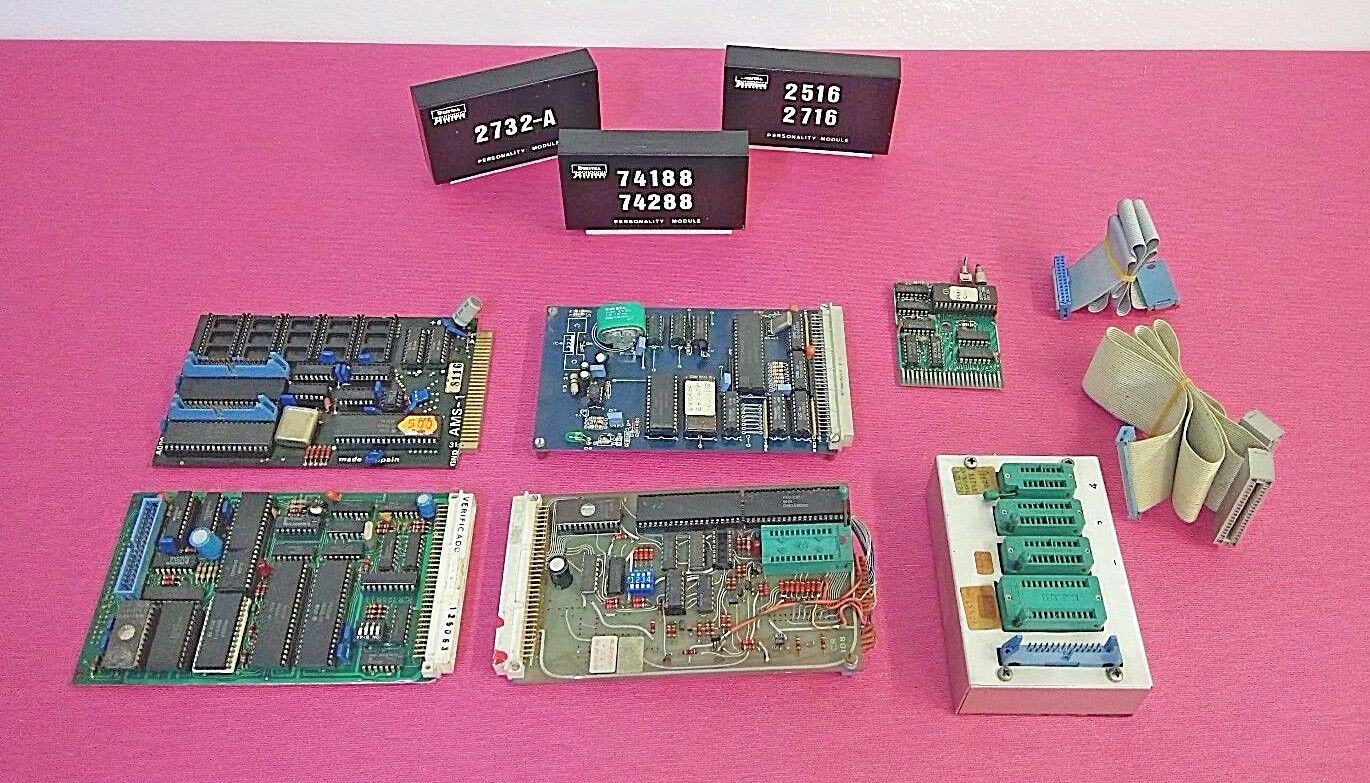

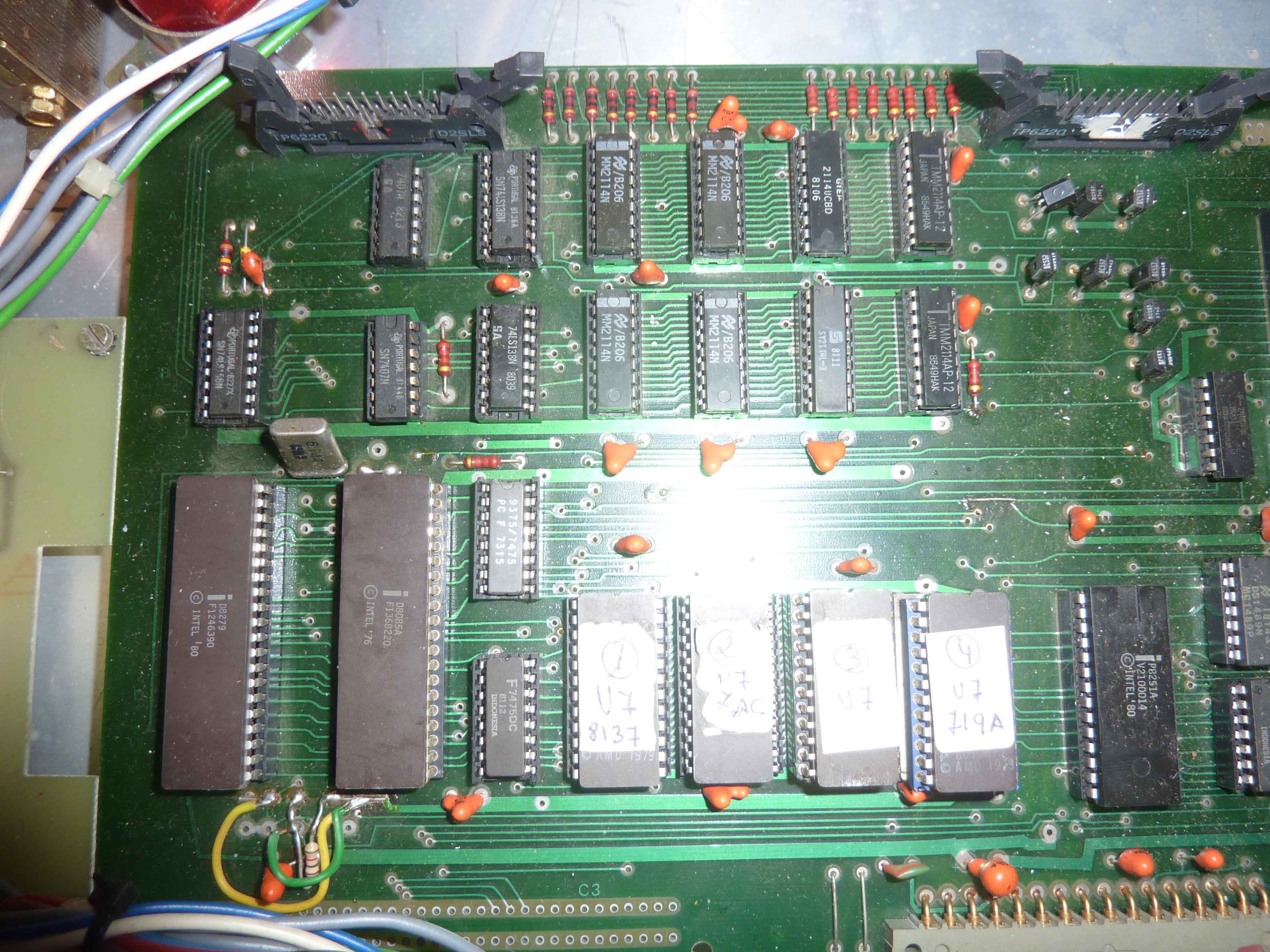

and integrates Intel D8279, D8155, P8251 and 2 P8255

has 8 2114 SRAM memory chips (4Kb of RAM) , 4 2716 Eproms (8Kb)

I am looking for any information about this programmer especially the firmware of the 4 2716 Eproms

if you have any details thank you to contact me.

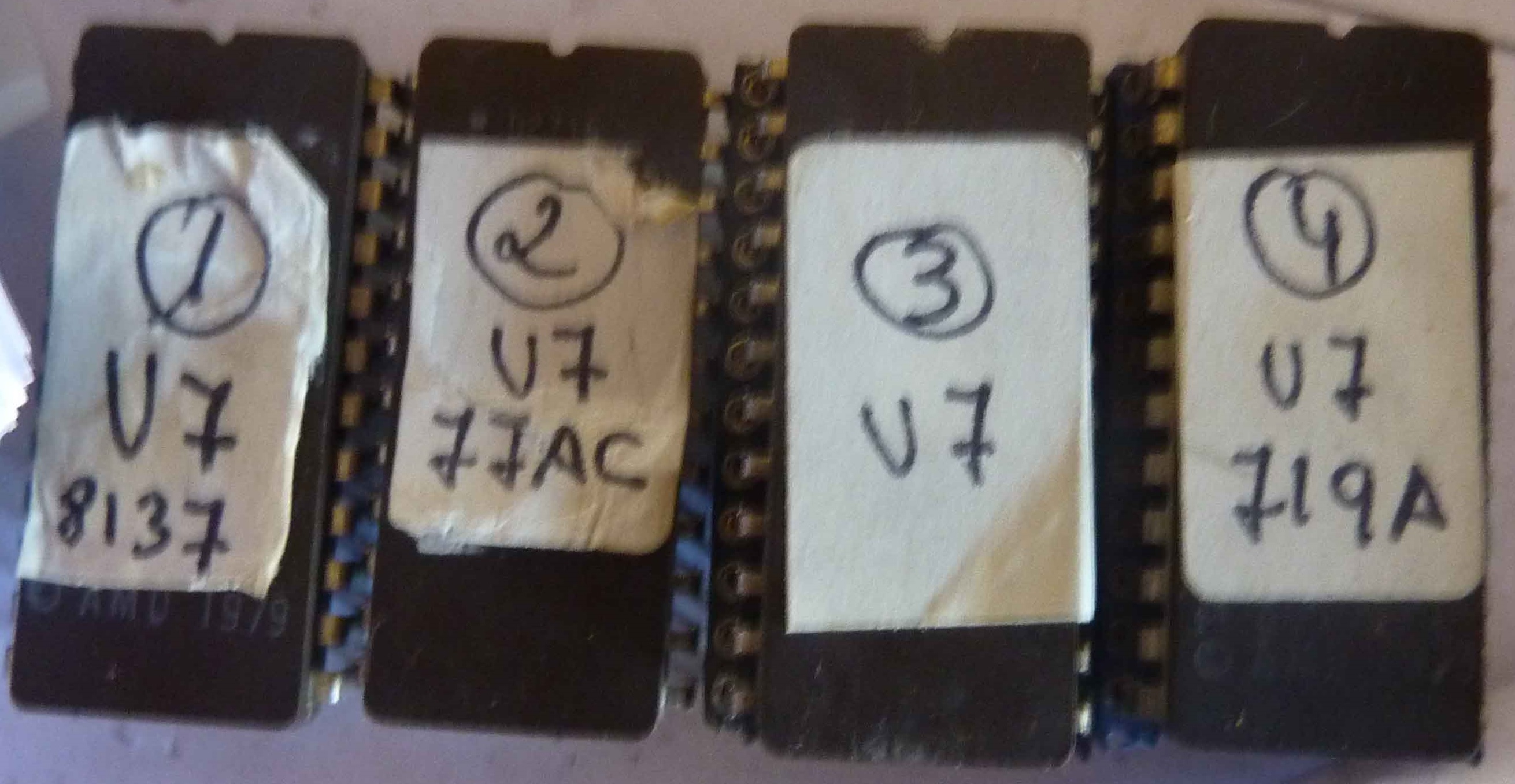

1 AM4716DC AMD
2 D2716 INTEL
3 D2716 INTEL
4 AM4716 AMD

Eprom "4" 719A has the right cheksum V7_719A_4.BIN (.BIN - 2KB) Eprom AMD AM4716A Checksum 719A

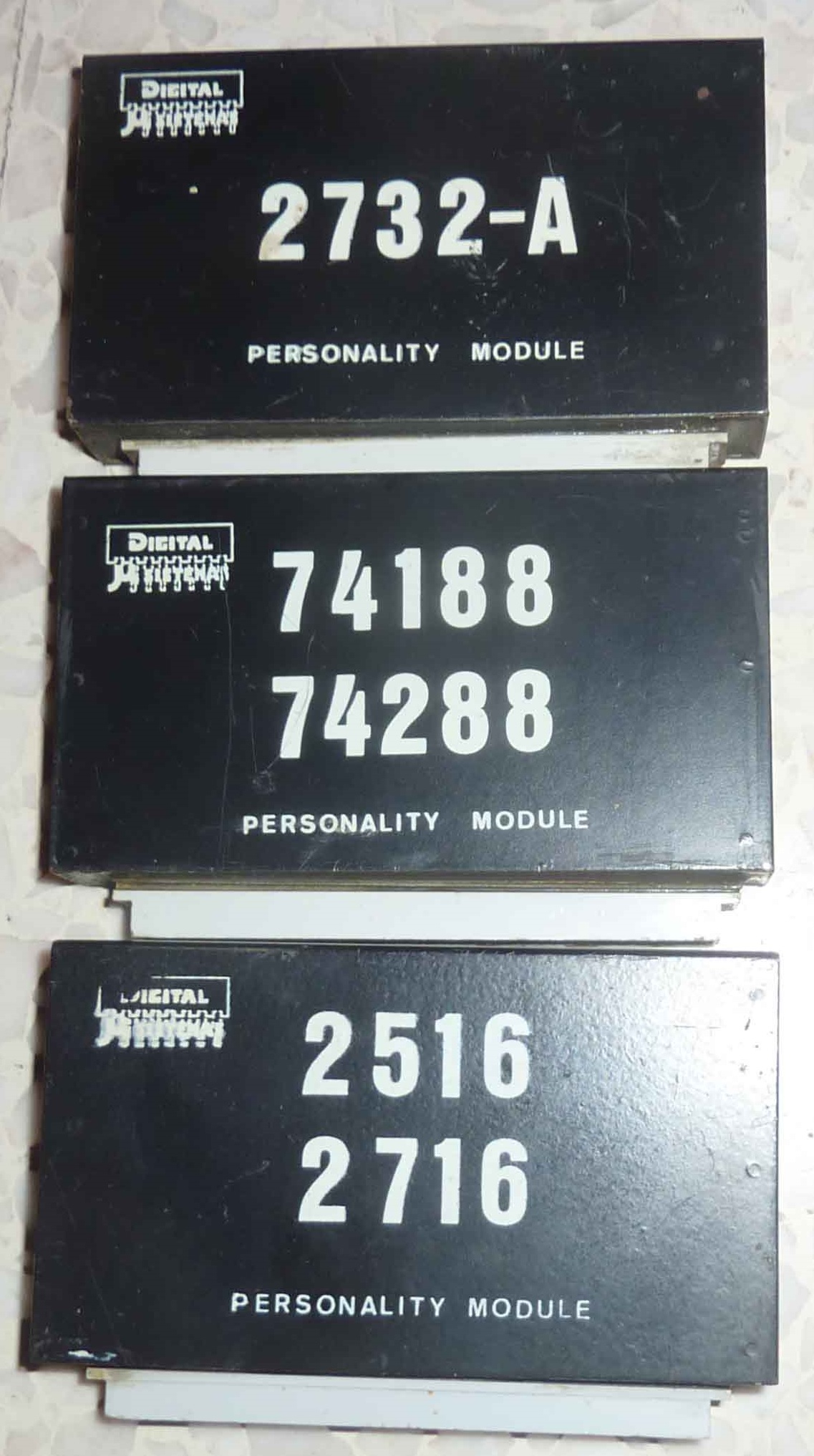

Personality Module 2716 2516 74188 74288 2732-A

















<click on image to enlarge>

******

If you look forward for other information about this card, do not hesitate to contact me by e-mail at: matthieu.benoit@free.fr .
Important Notice: Also if you have any data about this card, do not hesitate to contribute to this page.

Si vous recherchez des informations pour cette carte, vous pouvez me contacter par e-mail : matthieu.benoit@free.fr . De même si vous avez des informations sur cette carte, n'hésitez pas à contribuer à cette page.
