Digelec EP 804 programmer

resources page

also known as a "Wavetek EP804" and a "Promicon 2000"





It uses as a Z80 processor.

The programmer can also work as an EPROM simulator.

digelec 804 programmer schematics schematic diagram

digelec 804 Manual 1986 user manual

digelec 804 programming Guide

digelec804 RAM expansion card RAM upgrade installation guide

digelec 804 remote mode update december 1986 remote mode clarifications manual

firmware EPROMs and decoder PROM for Version 4.1

20414-2-04_EPROM-2764_CHKSUM-D6CC.BIN (BIN - 8Kb) .


20414-1-04_EPROM-27C128_CHKSUM-78F0.BIN (BIN - 16kb)



804-1-4_PROM-82S23_CHKSUM-0CE7.BIN (32 bytes)

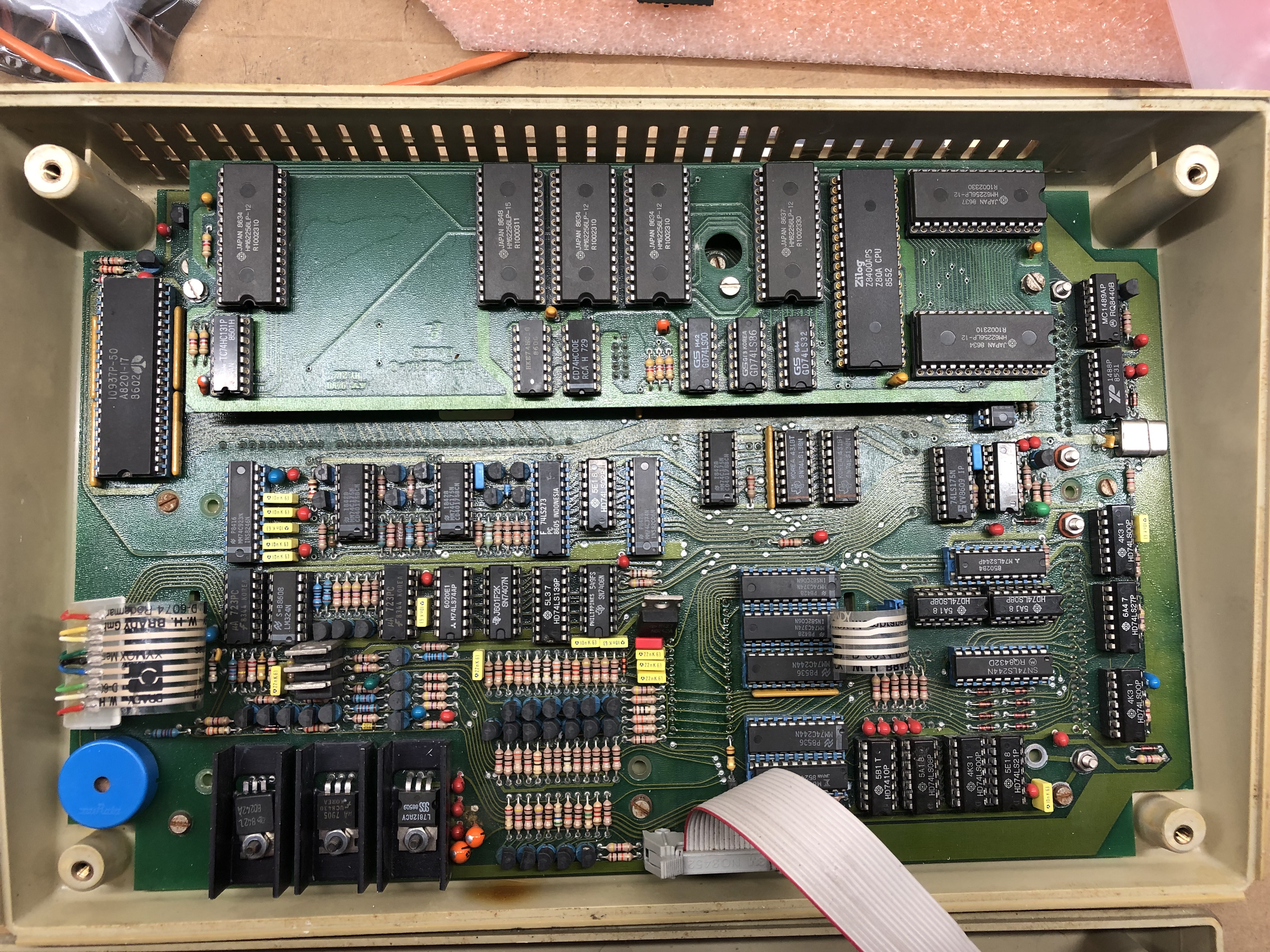

main cpu board

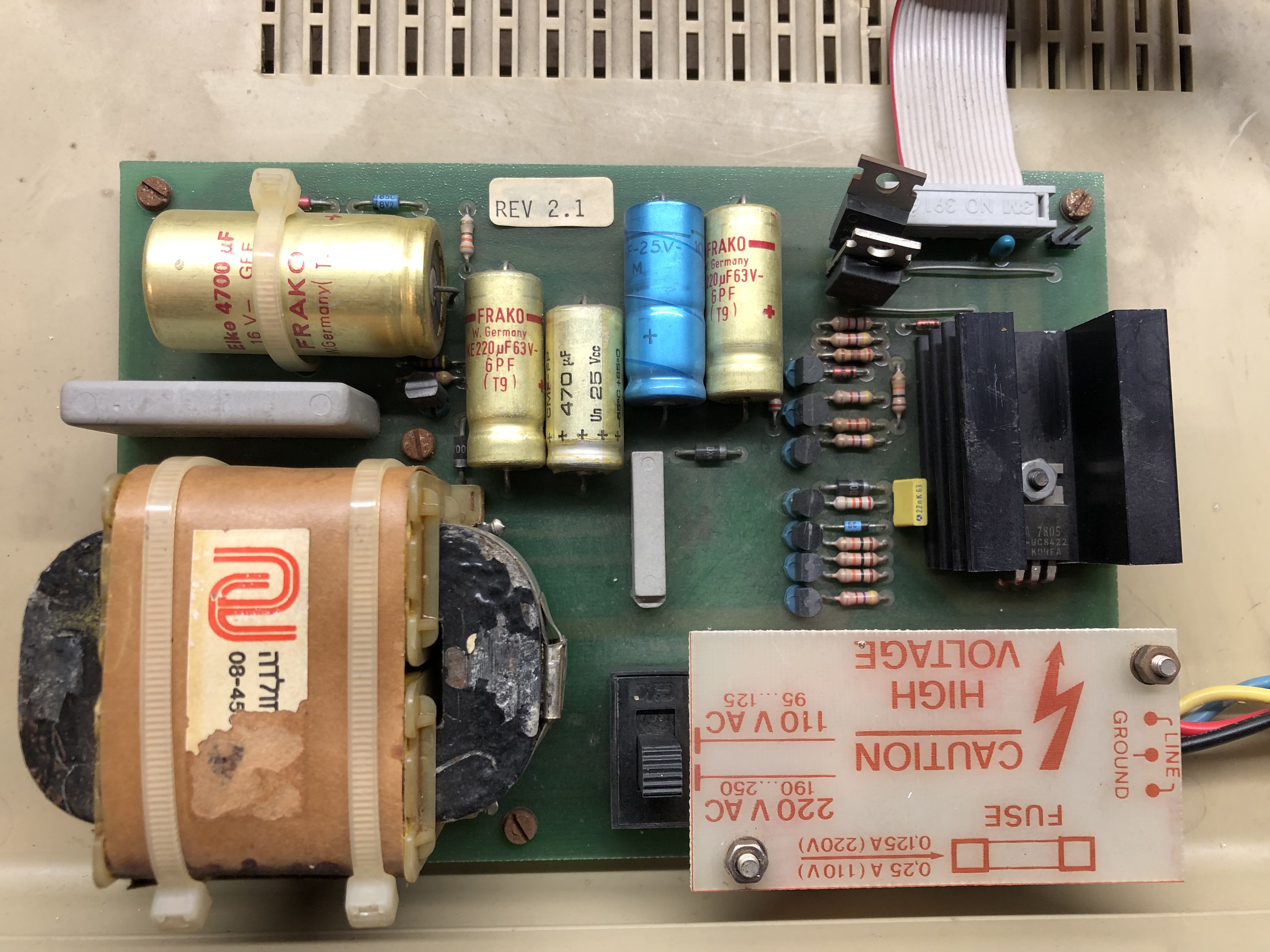

power supply
