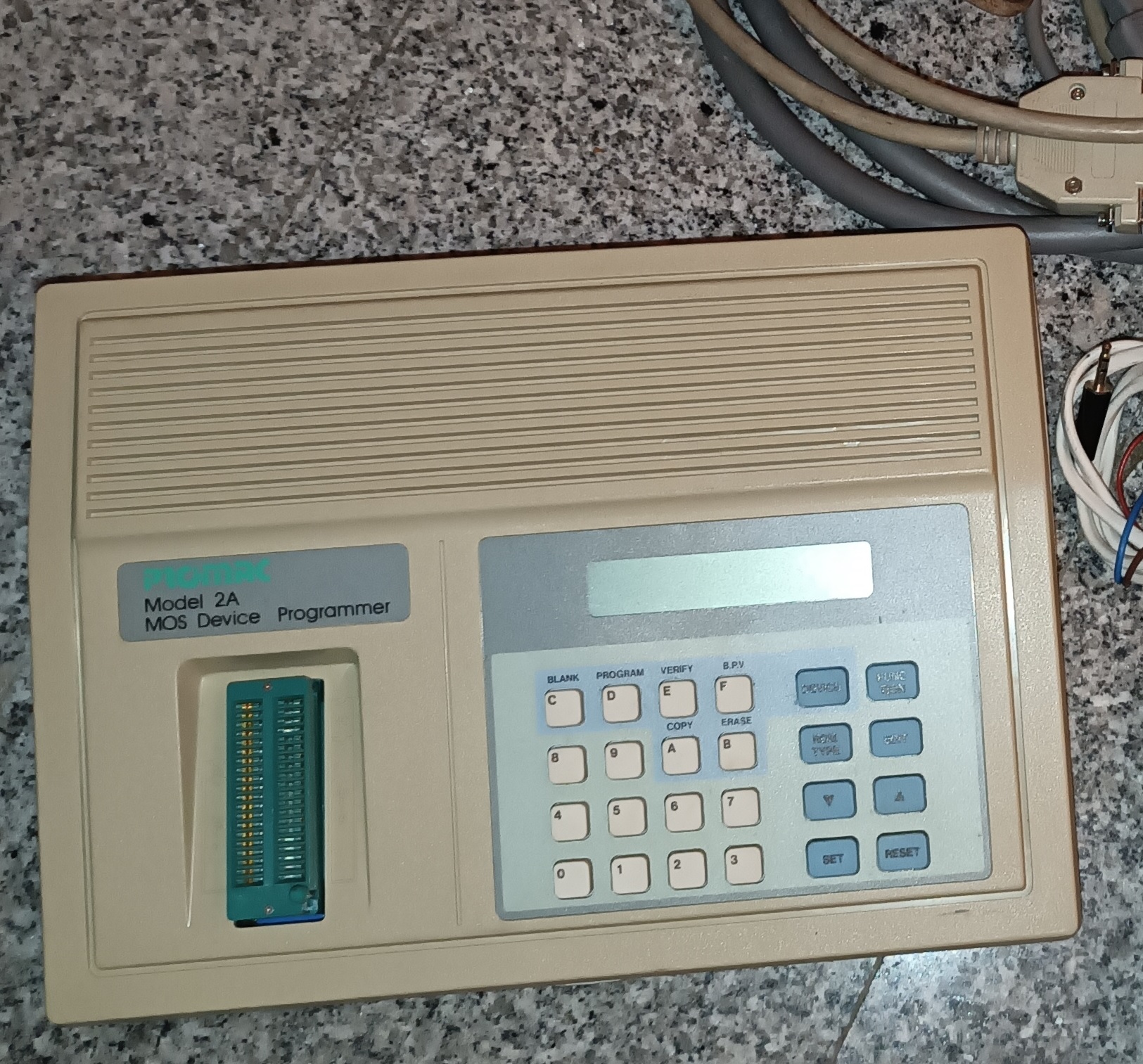

Promac model 2A MOS device programmer resources page
PROMAC 2A programmer resources page
Universal MOS Device Programmer Model
2 A User's Manual [PROMAC]
Universal MOS Device Programmer PROMAC 2A users guide (PDF-70 pages -60.4Mb)
https://archive.org/details/universal-mos-device-programmer-model-2-a-users-manual-promac/mode/2up
https://github.com/DennisD2/AndoPromacUI
software Control of vintage Eprommer via textual UI. Eprommer is accessed
via serial cable and a serial<->USB adapter.
Xon/Xoff is supported so
Tx - Rx
Rx - Tx
GND-GND
cable can be enough.
Character format 19200,8,N,1 is pretty standard.
Page 36/70 is Remote Control.
If no software is available that is your only way.
Page 38/70 has a send data example.
There, after those few initial characters, you just pick the file with correct
format and click send in terminal program.
The programmer then send something back when ready.
Raw binary file format is faster than any text based thing.
*******
links
https://www.eevblog.com/forum/beginners/promac-model-2a-mos-device-programmer-software/
If you look forward for other information about this topic, do not
hesitate to contact me by e-mail at: matthieu.benoit@free.fr
.
Important Notice: Also if you have any data about this topic, do not hesitate
to contribute to this page.
