Hilosystems ALL-01 Eprom programmer and tester resources page
ALL01 Software available here http://www.euro-arcade.de/files/all-01.zip This release includes PLAN2 from National Semiconductors ;

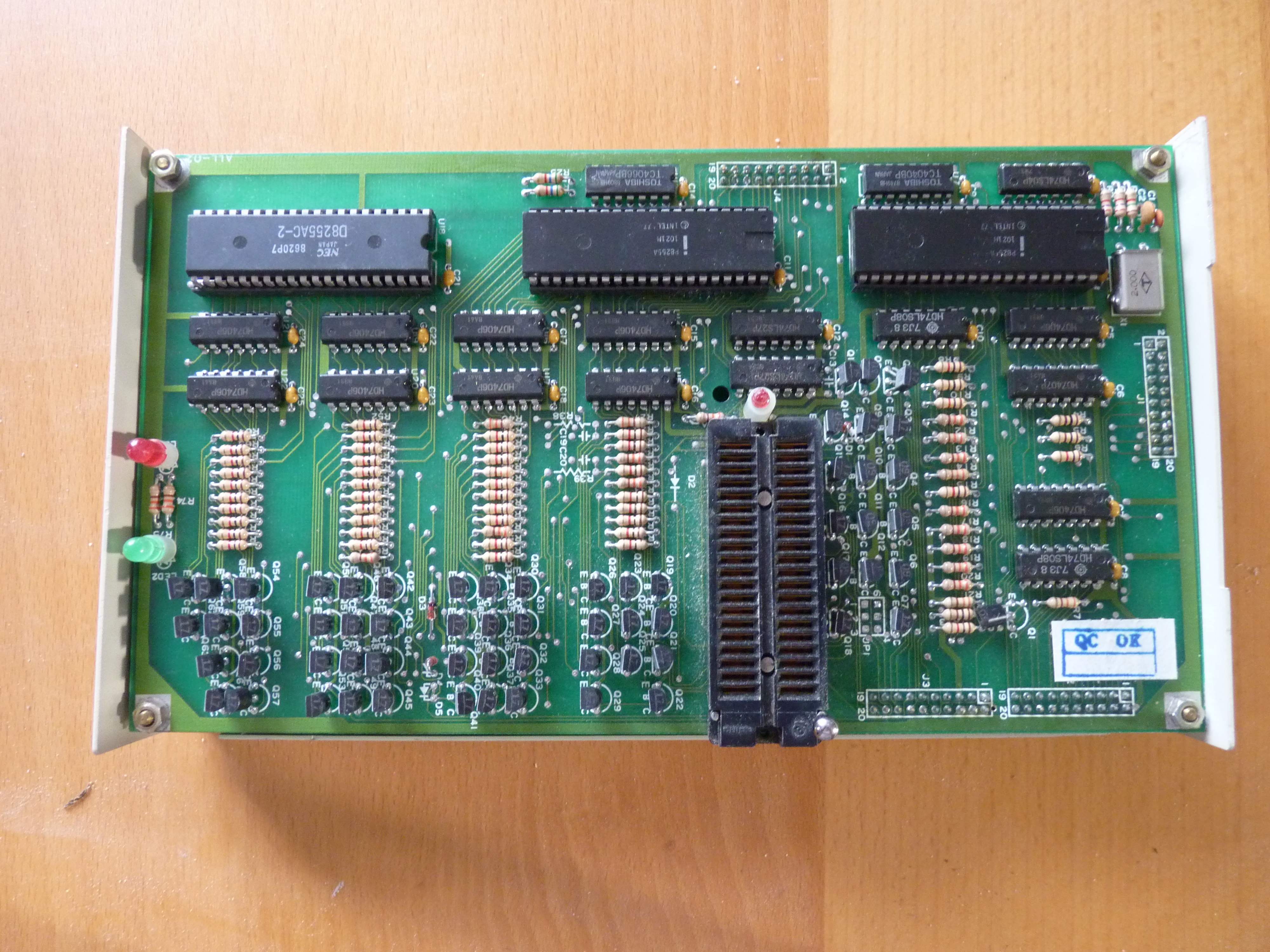

another release with different revision dates is given here all-01.zip (201 Kb) See all01 data directory. ALL-01 looks like this picture.
this programmer was also rebranded with JDR and Xeltek brands.
"MCT" (Modular Circuit Technology") is the house brand of JDR Microdevices.
See http://www.jdr.com

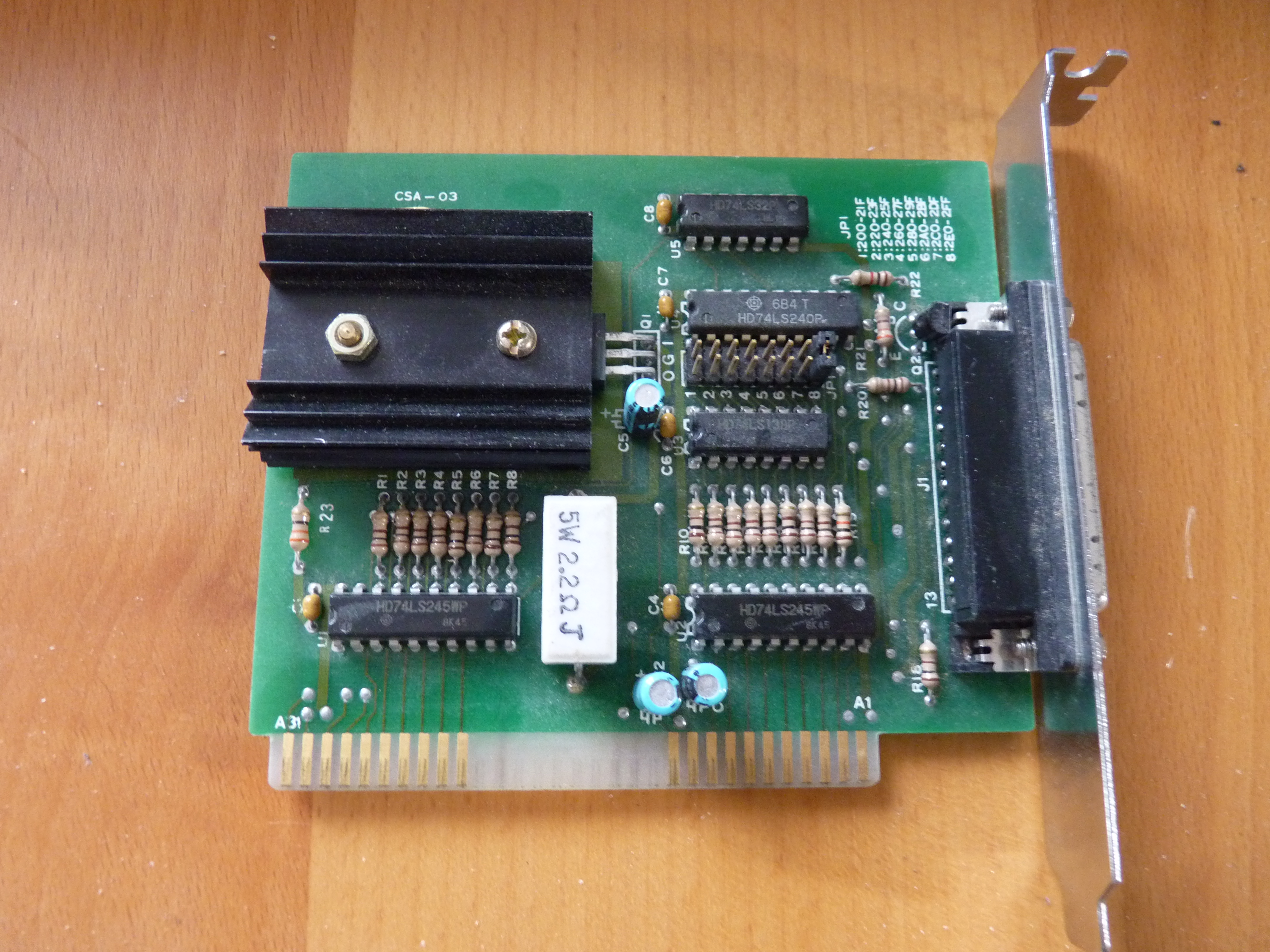

here is the schematic of the CSA-03
adapter card courtesy of Gonzalo Fernandez Val from SPAIN (PDF- 965Kb)

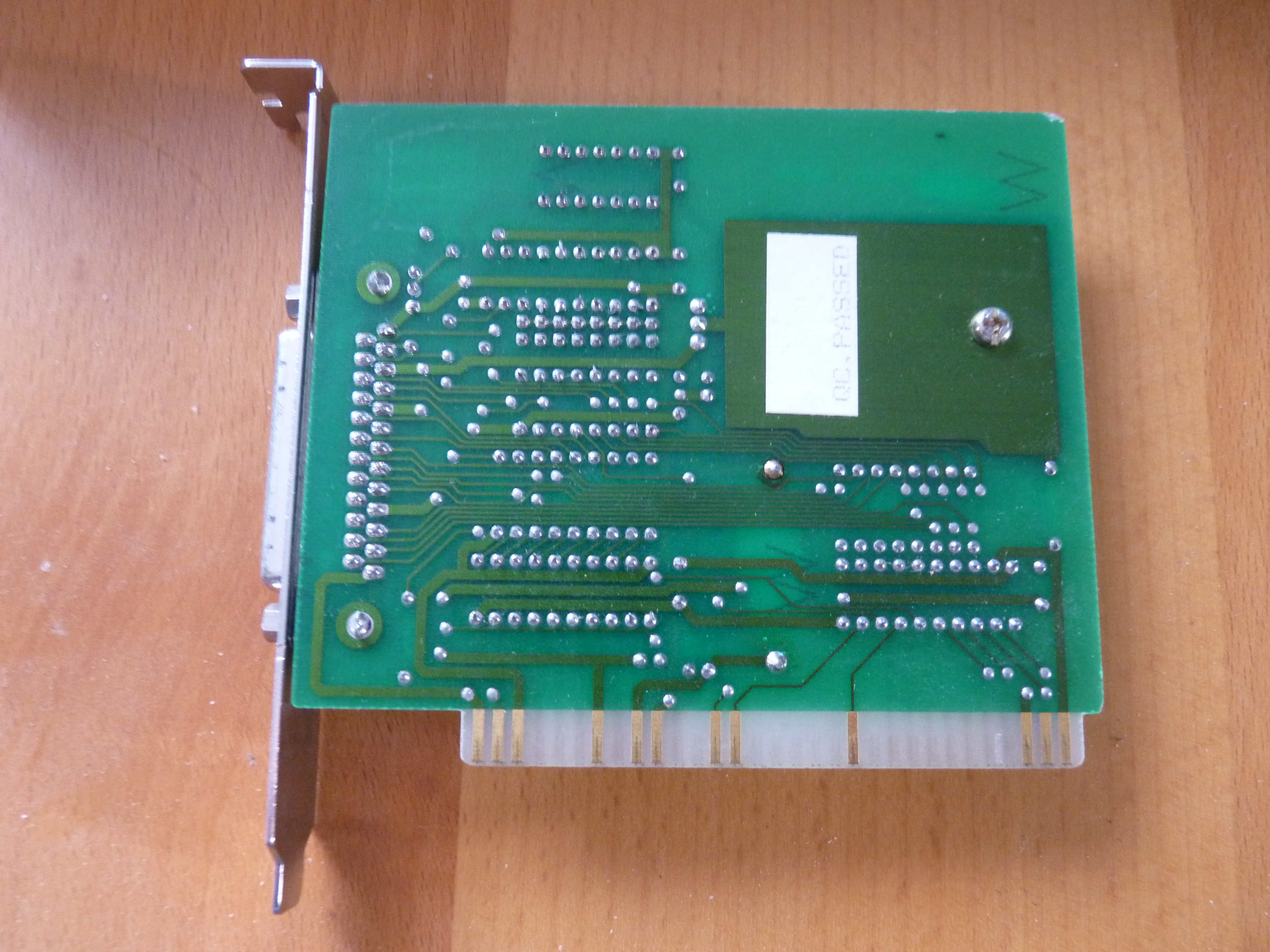

The Interface card has 8 jumpers for setting the address to: 0x200, 0x220, 0x240, 0x260, 0x280, 0x2a0, 0x2c0, and 0x2e0.
The 01 is almost same as unipro from xeltek.
The case different color power supply in box some extra parts and one chip has
ben replaced with a potted or encased module big enough for 2 or 3 chips.
The - 01 was the older one but I do not know who originaly designed it.

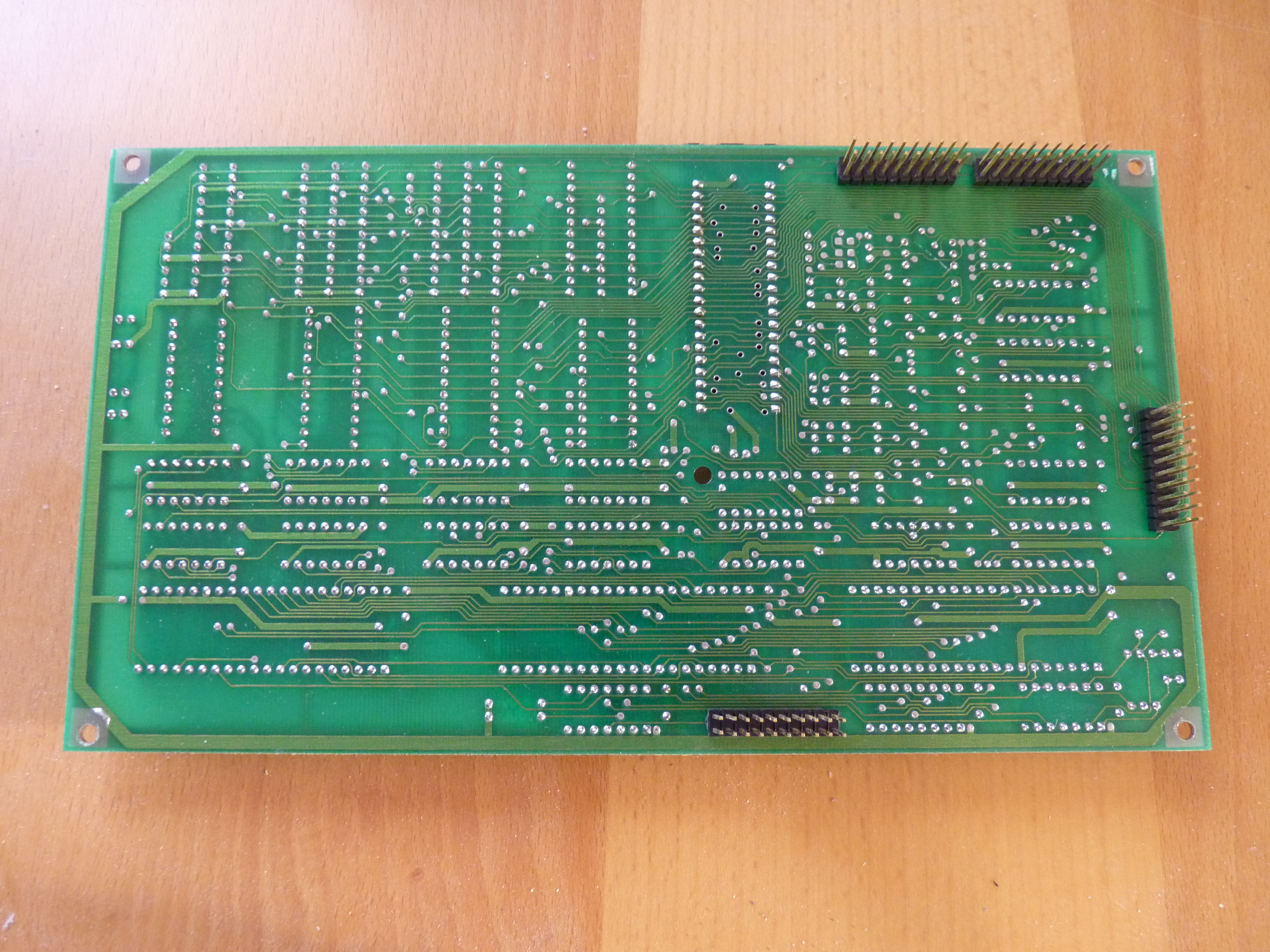

The layout of the boards are nearly the same but off just enough to not line
up correctly to plug bottom and top together from between each type.
The -01 is more different from 02 , it has larger boards some different parts
and switch for power not on -02.
The -01 software is more primative and does less chips.
Xeltek Unipro moved led to different place for busy and had no power led just
switch.
Xeltek has less power components and made in korea ALL-01 in taiwan.

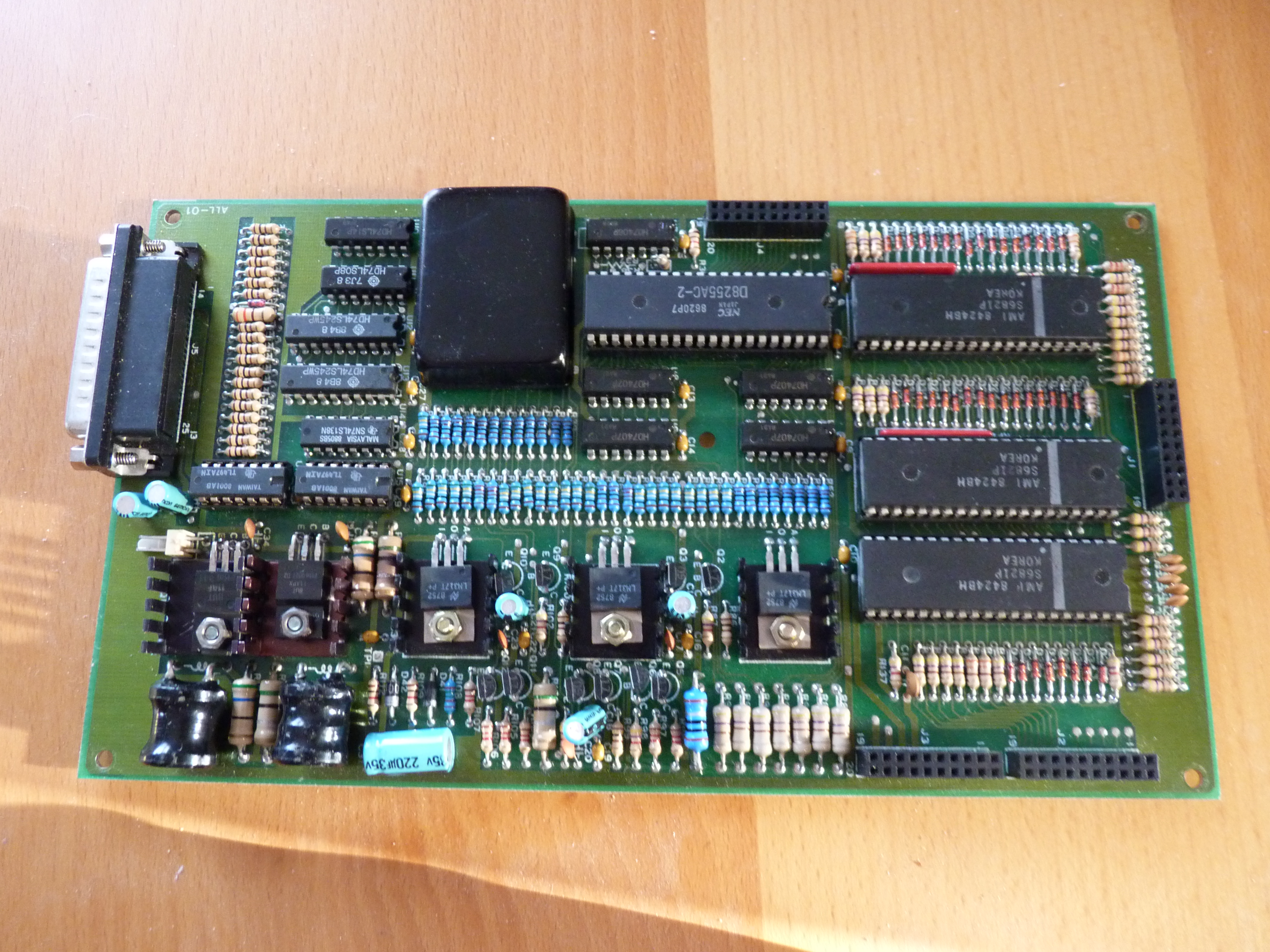

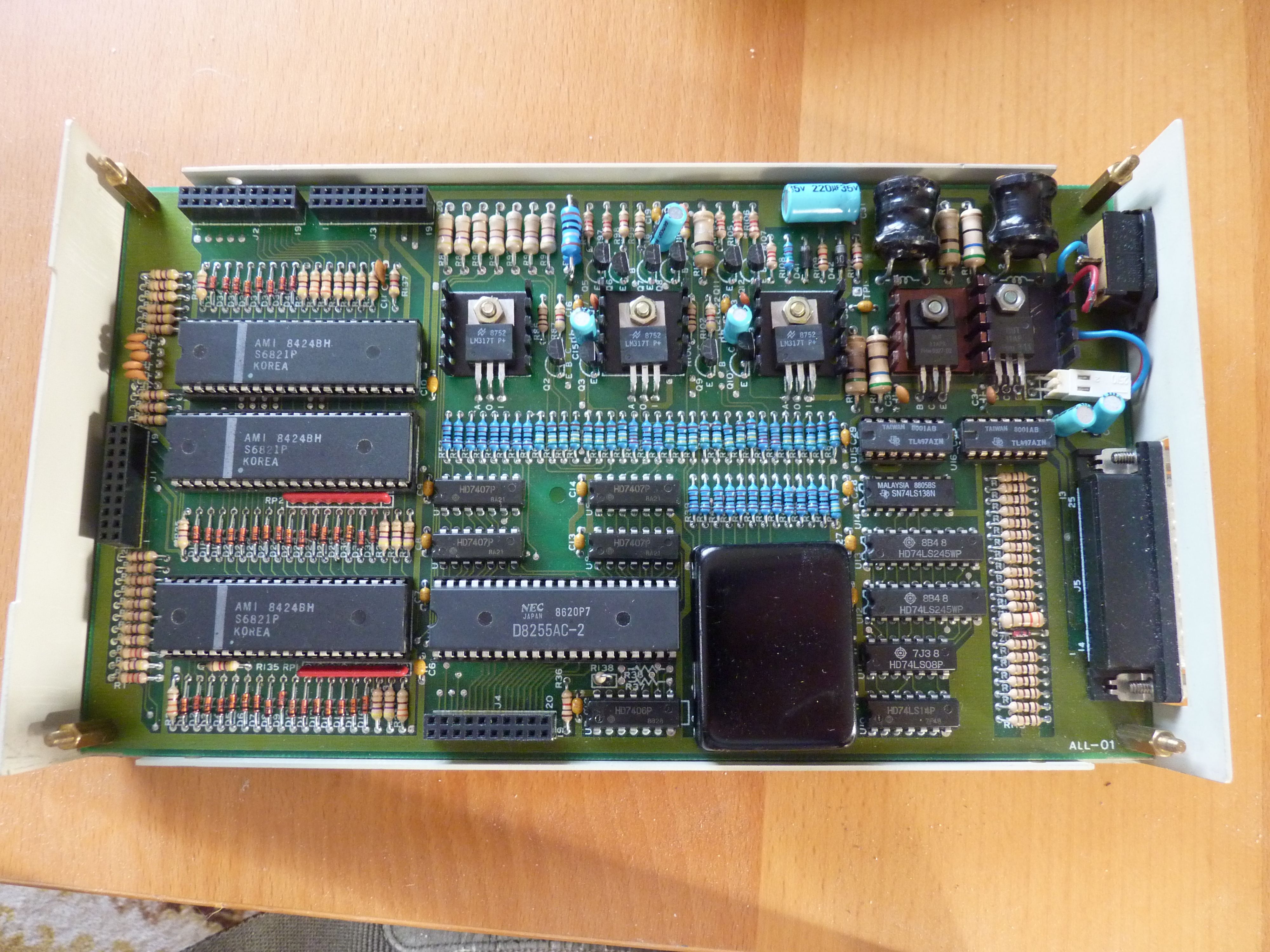

ALL - 01 had strange encaspsulated filled module containing possible 2 to 3
ic's replacing 1 or 2 of ic's from xeltek.

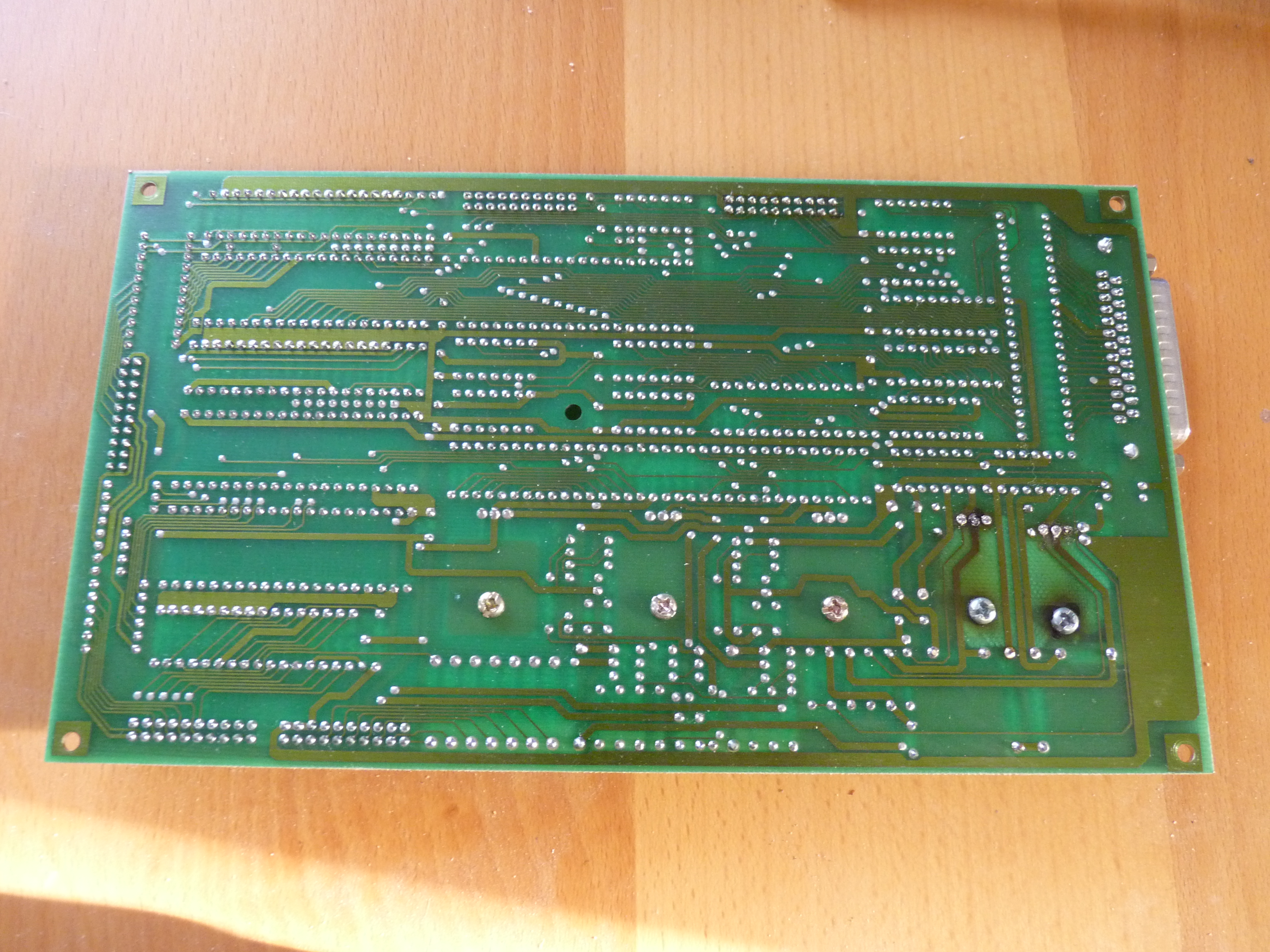

All differences seem to be on bottom board except led's.
It can use same interface as ALL - 02.
Resistor marked as different in interface needs to be 22 ohms for ALL - programmers
not DMT-01 tester. If resistor too high it may allow too high +5 volts to programmer.
.
*******
If you look forward for other information about this programmer & tester,
do not hesitate to contact me by e-mail at: matthieu.benoit@free.fr
.
