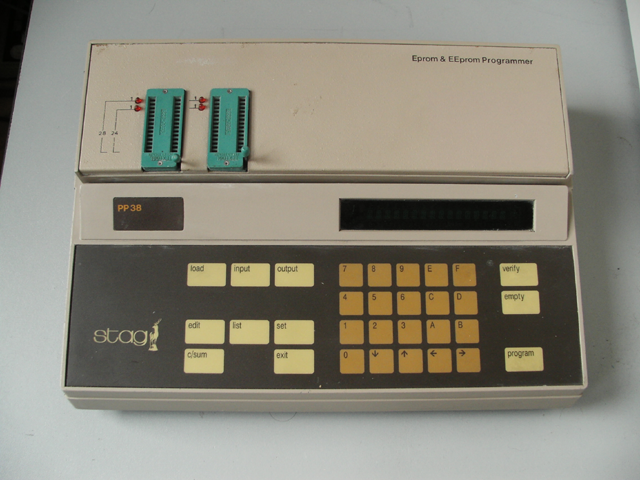

MOS Programmer PP38 Stag
Programmateur MOS EPROM-EEPROM Stag PP38.

pp38 resources page




Softwares:

StagView 1.6.2 (05/03/21) New software for stag programmers Stag PP38, PP39 , Stag PP42, Stag PP41, Stag PPZ

This new version of StagView allows the display of up to 10 ports available for use in the Connect dialog, including USB serial devices for Linux which were difficult to use before. There is a logging option in Options/other for anyone interested in the data sent and received; the software has been tested with USB serial cables.





Software Stag COM1 Last Release (8) (1993) 240Kb Shift-Click to Download (includes 39M100, 39M101, 39M200 devices list). I have noticed that this release is buggy for tranmitting binary file from programmer to the P.C. Perhaps it is depending on the firmware revision of the base Unit ?

Software StagCom1 Previous Release (7.1) (1991) 120Kb Shift-Click to Download (includes 39M100, 39M101, 39M200, 41M100, 41M101, 41M102, 41M103, 41M121, 41M200, 42M100, 42M101, PP38, Zm2000, Zm2500, Zm2800 devices list)

Software StagCom1 Previous Release (7.3) (1992) 116Kb Shift-Click to Download (includes 39M100, 39M101, 39M200, 41M100, 41M101, 41M102, 41M103, 41M111, 41M121, 41M200, 42M100, 42M101, PP38, Zm2000, Zm2500, Zm2800 devices list)

EPROM base PP38 01-00 checksum 01AE (.BIN binary file- 8Kb)

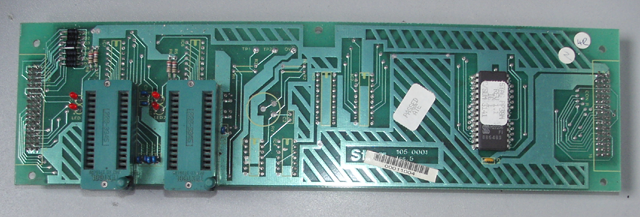

EPROM Module 01-01 checksum 3141 (.BIN binary file - 32Kb)

Stag PP38 Users Manual (PDF File 5.83Mb, 126 pages Shift-click to Download)

* To Enter Serial Port Configuration : Press SET 1 then with the arrow keys configure as so for example: BIN 19K2 8 1 --

* To go into Remote Mode: Press SET 2 SET (Note to come out from the remote mode : hold on the Exit key while powering up the programmer)

* Cable to realize : XON-XOFF configuration :

Sub-D9F(PC) Sub-D 25M (Stag)
2 - 2
3 - 3
5 - 7
You may see also Stag PP39 programmer resources page.

******



If you look forward for other information about this MOS Programmer, do not hesitate to contact me by e-mail at: matthieu.benoit@free.fr . Also if you have any data about this programmer, do not hesitate to contribute to this page.



Si vous recherchez des informations pour ce programmateur autonome, vous pouvez me contacter par e-mail : matthieu.benoit@free.fr . De même si vous avez des informations sur ce programmateur, n'hésitez pas à contribuer à cette page.
