CDROM ISA interface Card : PANASONIC, SONY, MITSUMI interfaces
resources page
Carte ISA pour CDROM : SONY, PANASONIC, MITSUMI



This card can be used with the CDROM Wearnes Digital detailed in the page 107

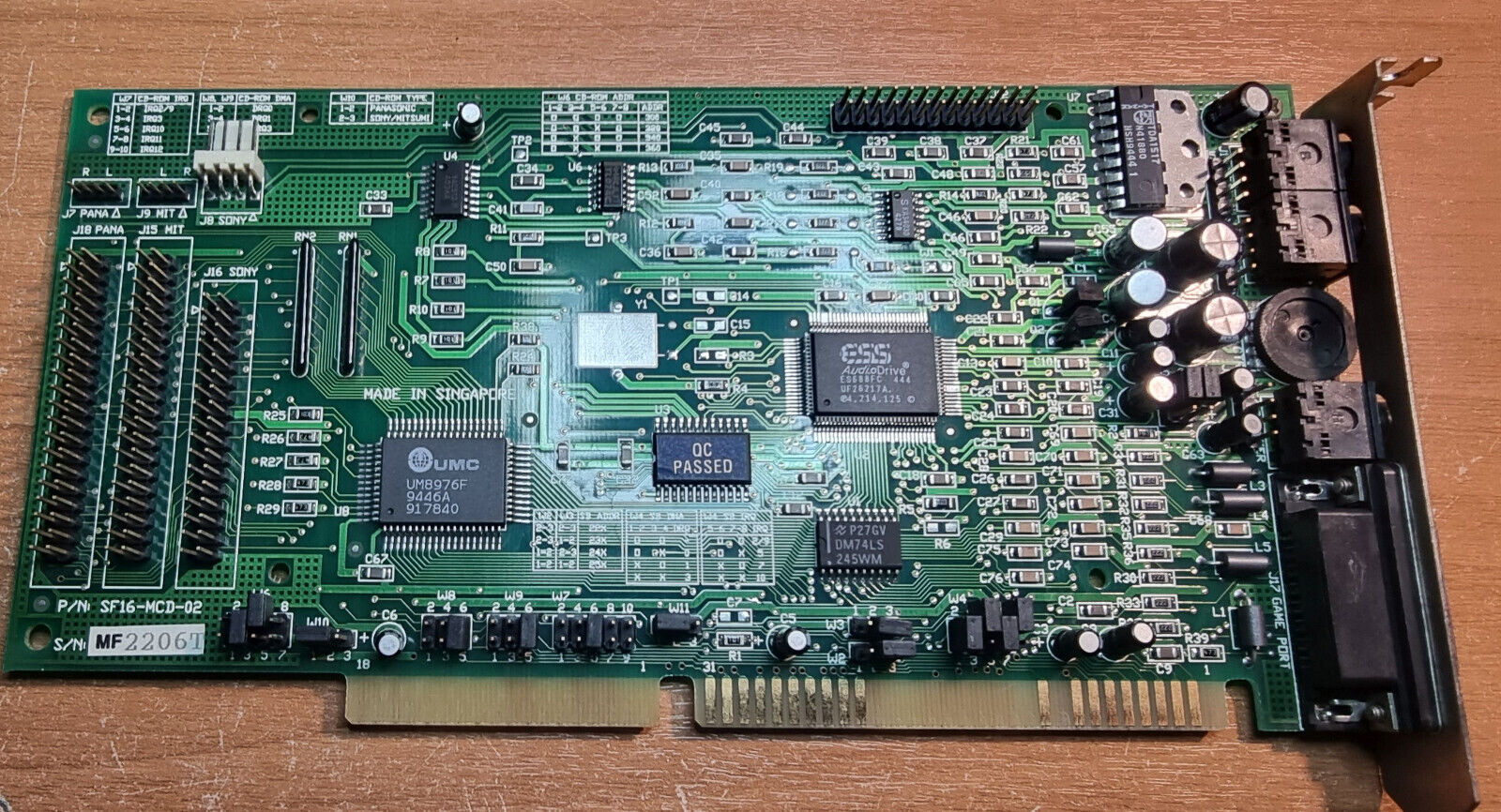

This card is based on the UMC UM8976F chip.

It supports the three Proprietary CDROM interfaces : PANASONIC, MITSUMI and SONY.

Notice de la carte mère DONATEC 286 (1.48Mb - 27 pages) This brochure details the connexions of the ISA Bus (See page 12 to 19)

Another card with the 3 CD-ROM interfaces is the sound card SC-6000 described in the page 113

Another card which can be used with the Wearnes ORCHID CDS3110 CDROM reader is the card CDC-005/6 PF-WP7011 REV.C (manufactured by WEARNES);

This card contains only TTL Logic

Documentation of this card can be found in this manual CDS-3110 CDROM User's Guide (PDF 158Kb- 20 pages)


this card contains 1 74LS374 , 1 74LS245 , 1 74LS244, 1 74LS38A, 1 74LS02, 1 74LS138A , 1 74LS00 and 1 74LS139 ; jumper can select the address from 300H, 320H, 330H, 340H, 360H ; IRQ : 3,4,5,6,7,9,10,11 ; DRQ :0,1,2,3,4,5,6,7 ; DRCK: 0, 1,2,3,4,5,6,7 .

current jumper are : address : 340H , IRQ : 9 ; DRQ : 3 , DRCK:3 .

FCC ID : JUGCDC7011






LCS-6853 REV:A1











******

If you look forward for other information about these CD-ROM ISA interface cards, do not hesitate to contact me by e-mail at: matthieu.benoit@free.fr .
Important Notice: Also if you have any data about this kind of interface, do not hesitate to contribute to this page.

Si vous recherchez des informations pour ces cartes interface CD-ROM, vous pouvez me contacter par e-mail : matthieu.benoit@free.fr . De même si vous avez des informations sur ce type de carte interface, n'hésitez pas à contribuer à cette page.
