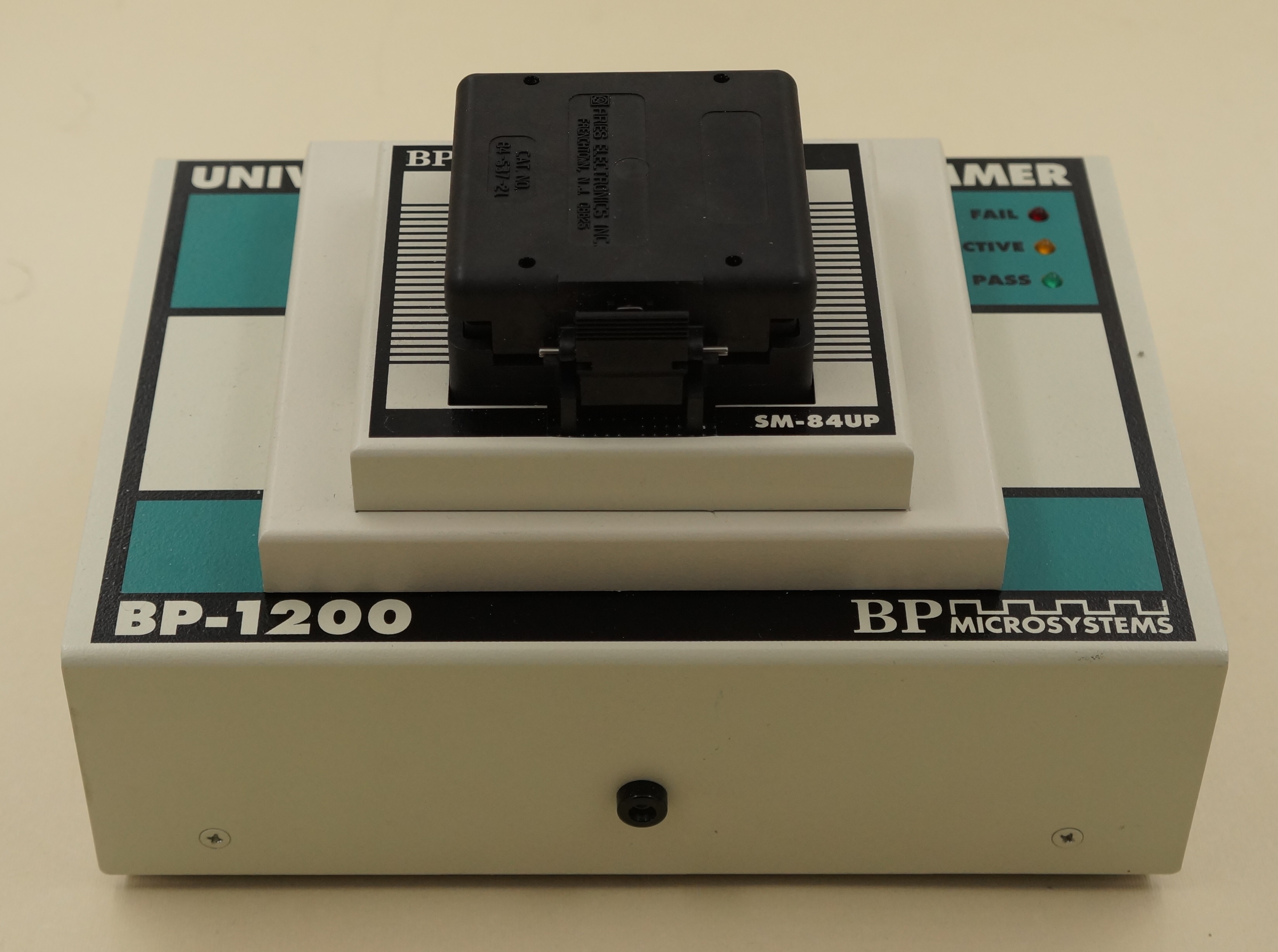

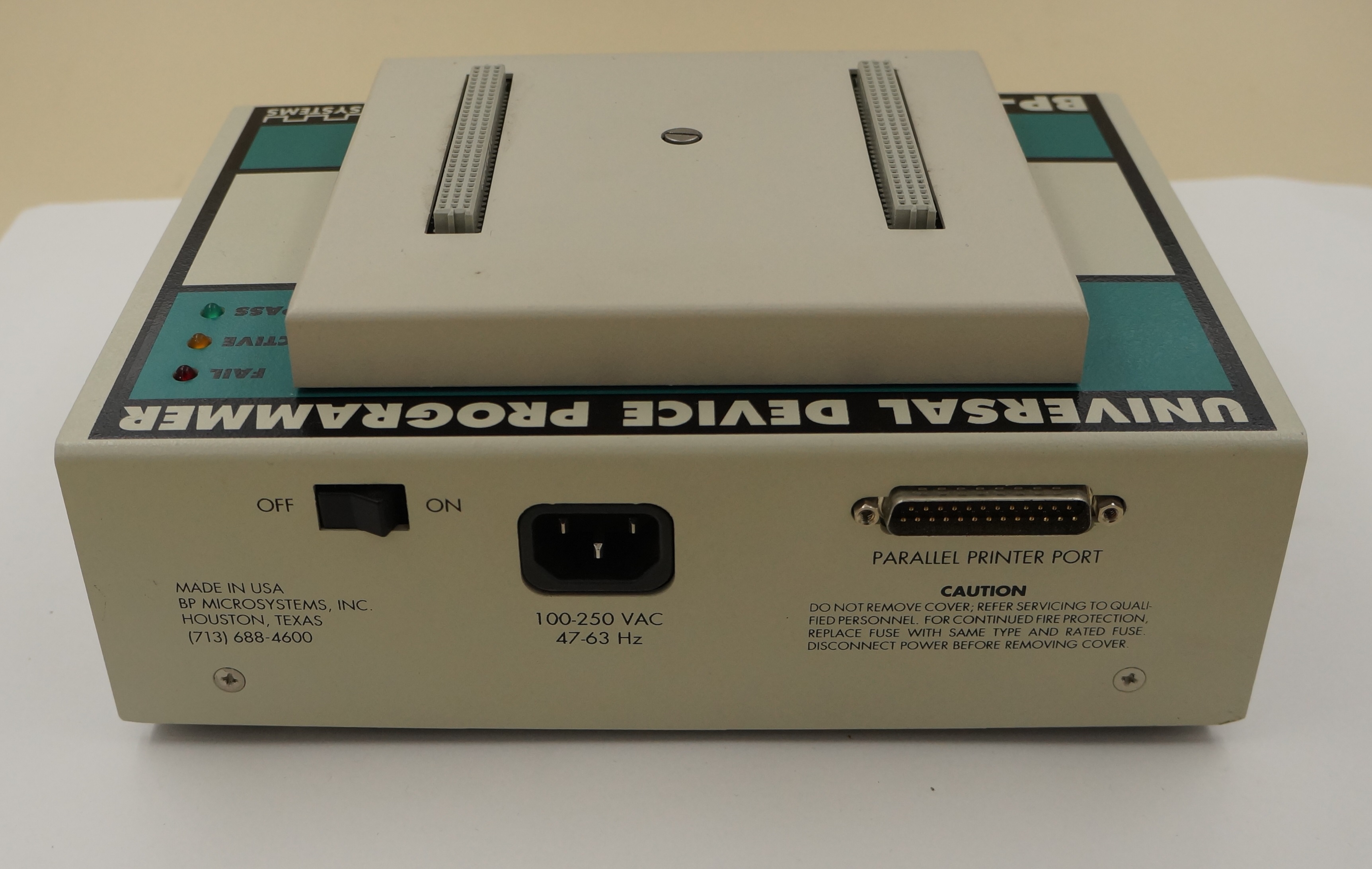

BP Microsystems BP-1200 universal device programmer

resources page








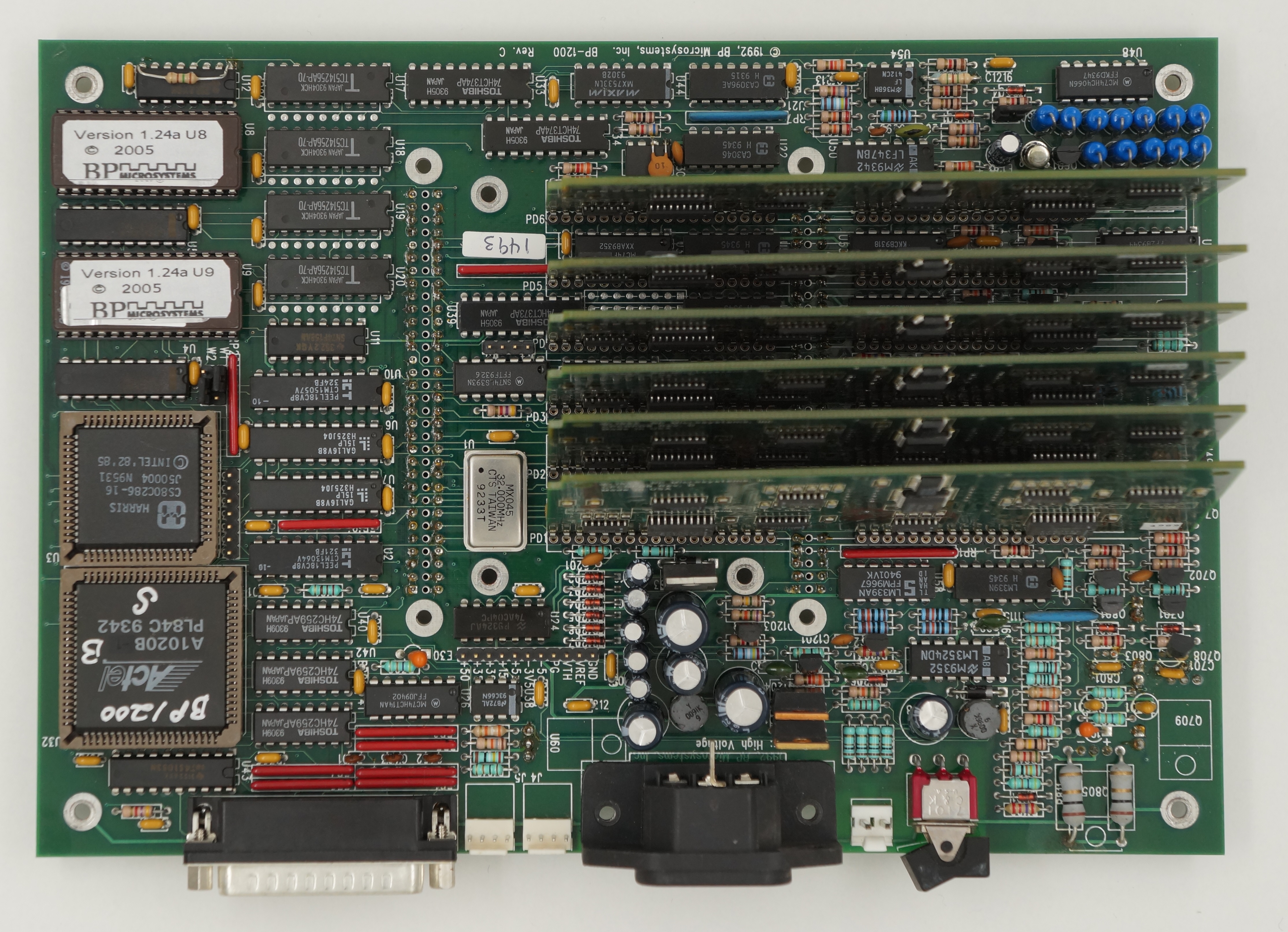

V1.18 U8_v1.18.bin (32Kb), U9_v1.18.bin (32Kb)

V1.24A U8_v124a.bin (32Kb), U9_v124a.bin (32Kb) bios note

power supply measurements



Voltages measured from the power supply side:
J4: +16,45V (+p12, -p13 fan supply)
J5: p1=+35,42V; p2=n.c.; p3=0V; p4=+5,33V
J6: p6=+35,42V; p7=n.c.; p8=0V; p9=+5,33V
P5 and P6 connections are in parallel.
The 35.42V are stable and have no fluctuations.Voltages measured from the power supply side:
J4: +16,45V (+p12, -p13 fan supply)
J5: p1=+35,42V; p2=n.c.; p3=0V; p4=+5,33V
J6: p6=+35,42V; p7=n.c.; p8=0V; p9=+5,33V
P5 and P6 connections are in parallel.
The 35.42V are stable and have no fluctuations.

BP Microsystems programmers Device list V3.08 May,15 1995 (PDF -27 pages - 1.84Mb)

BP Microsystems 1100 series programmers brochure (PDF- 4 pages - 5.29Mb)

software

MS-DOS

BP.EXE

bpjob.dll

windows

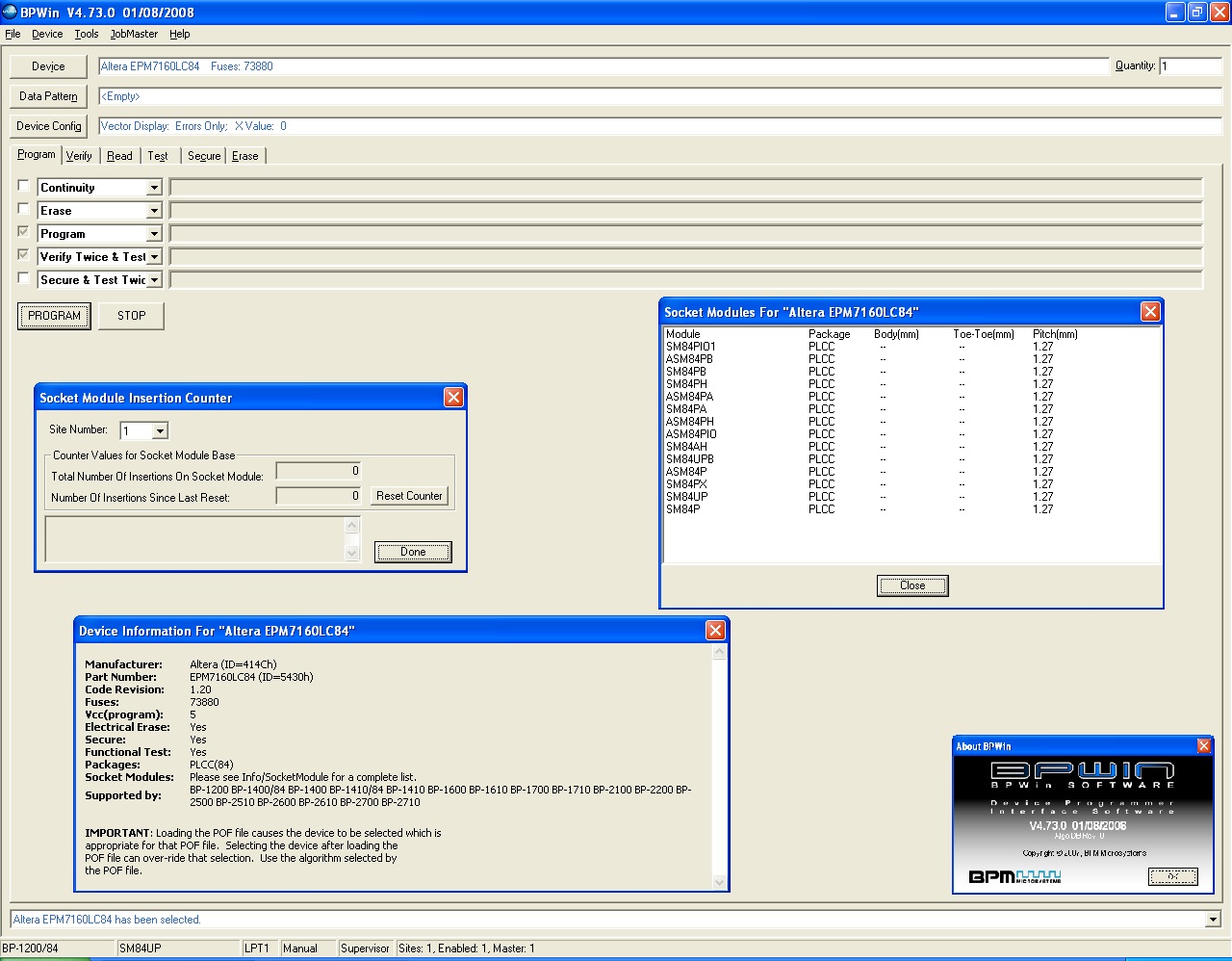

bpw_v4470.exe

bpw_v4730.exe




<Click on image to enlarge>

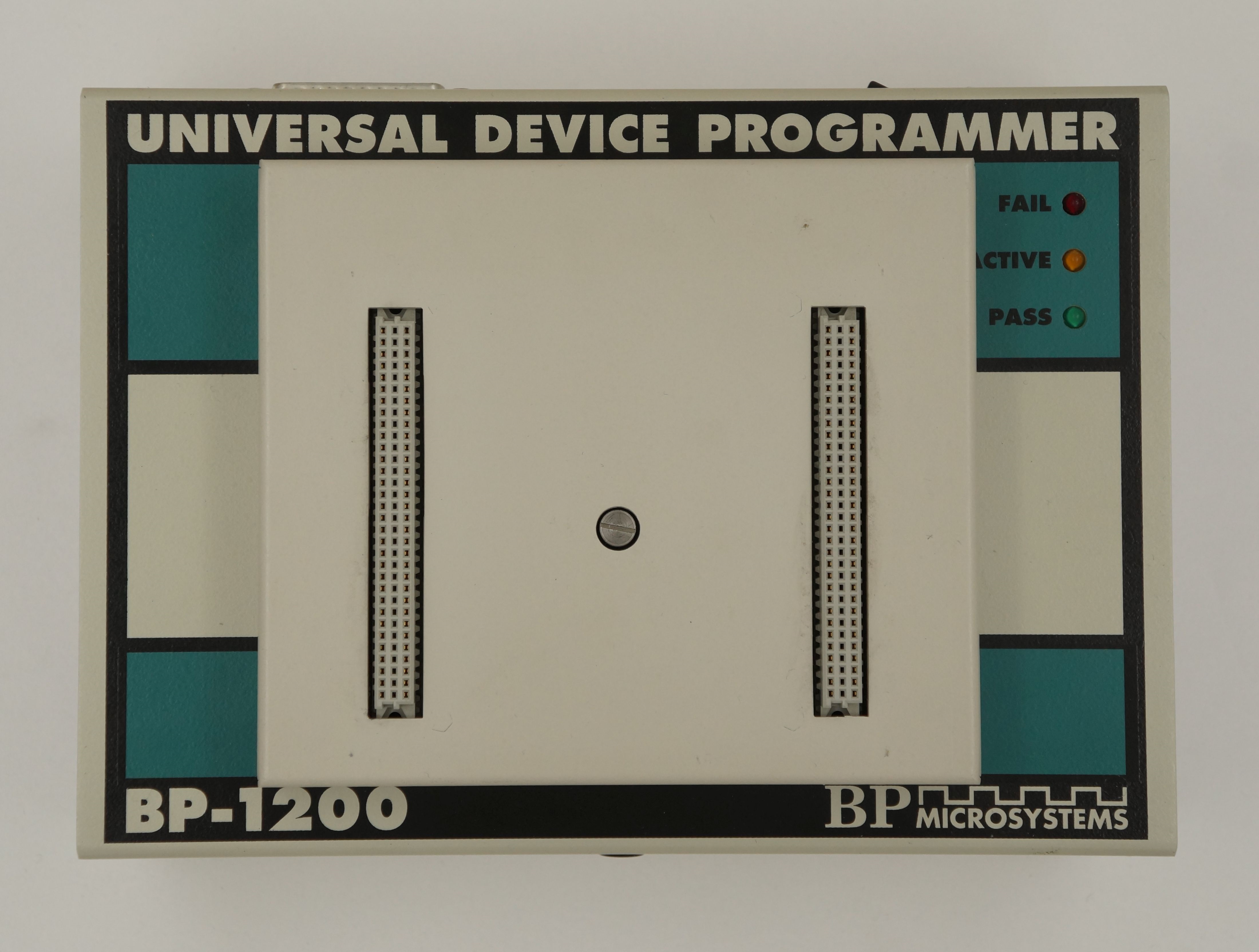

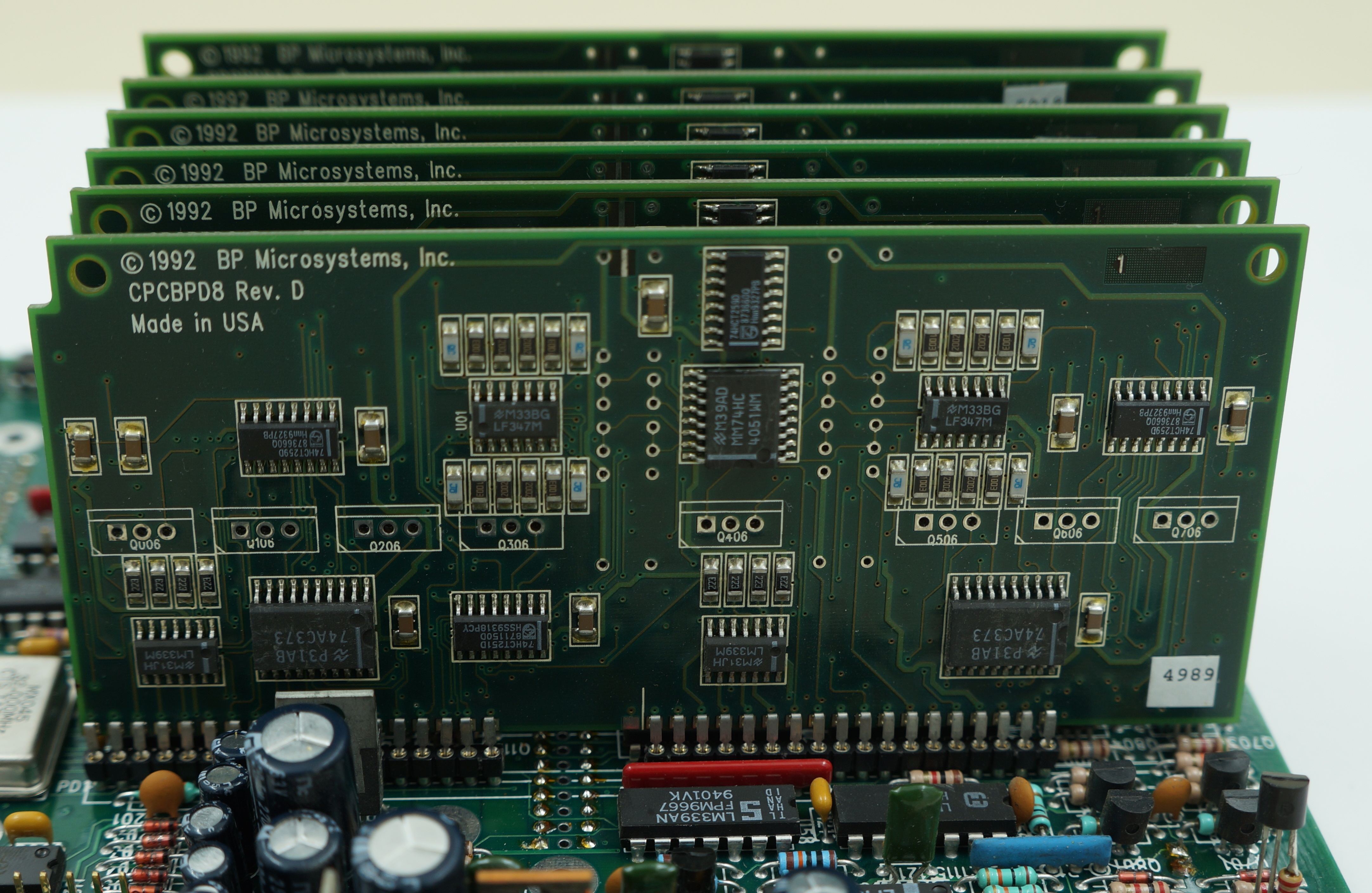

pindriver front

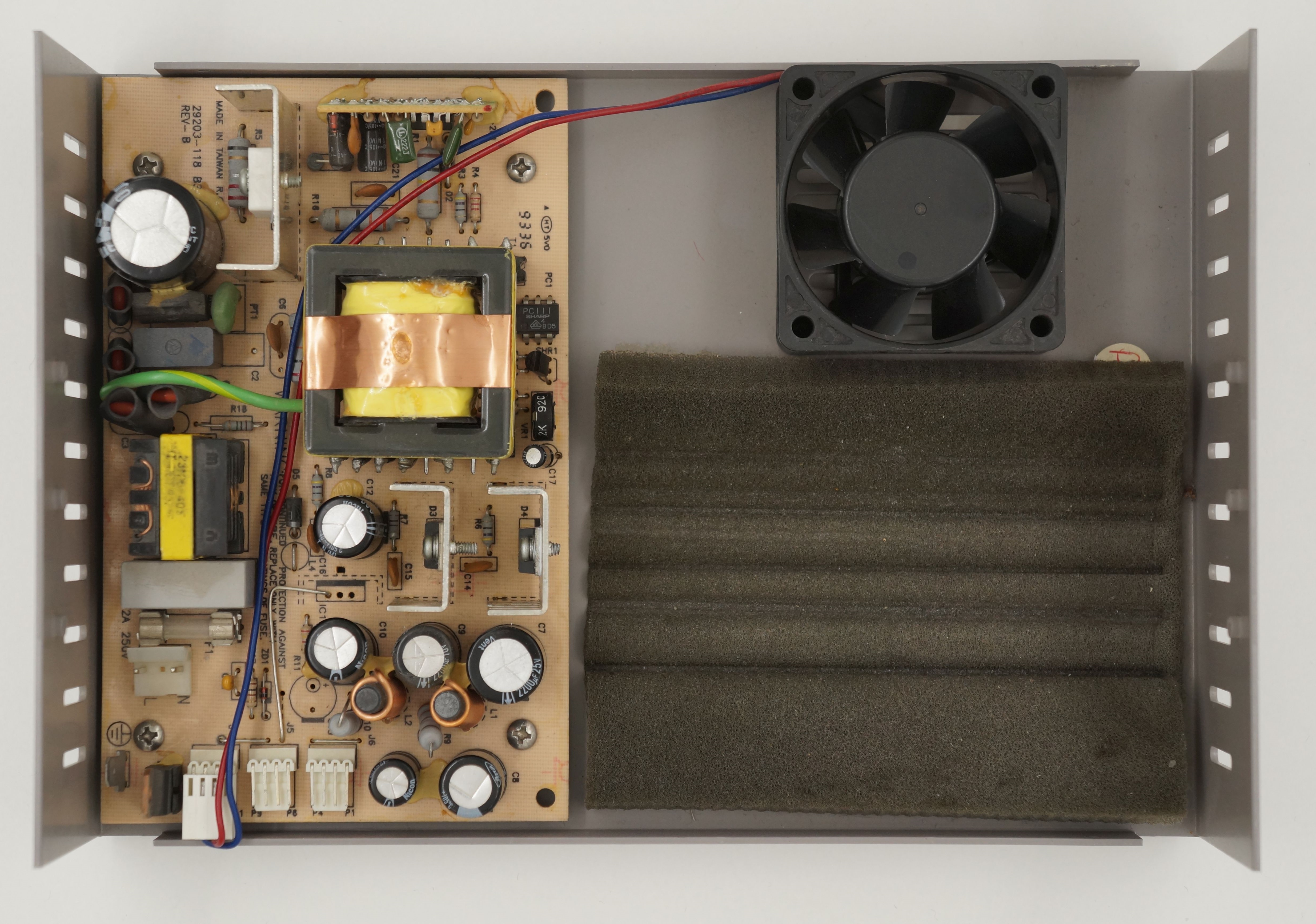

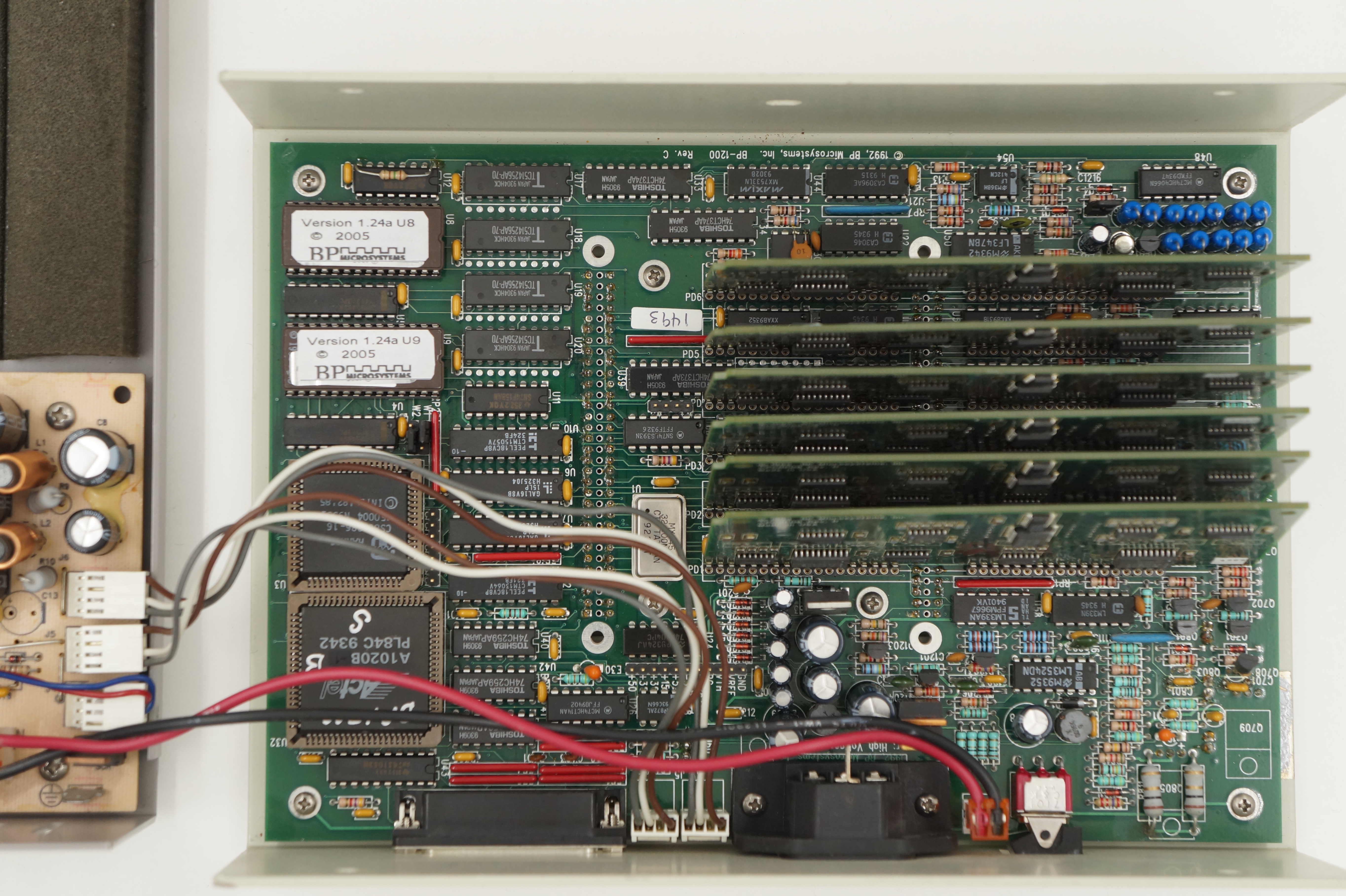

wiring power supply

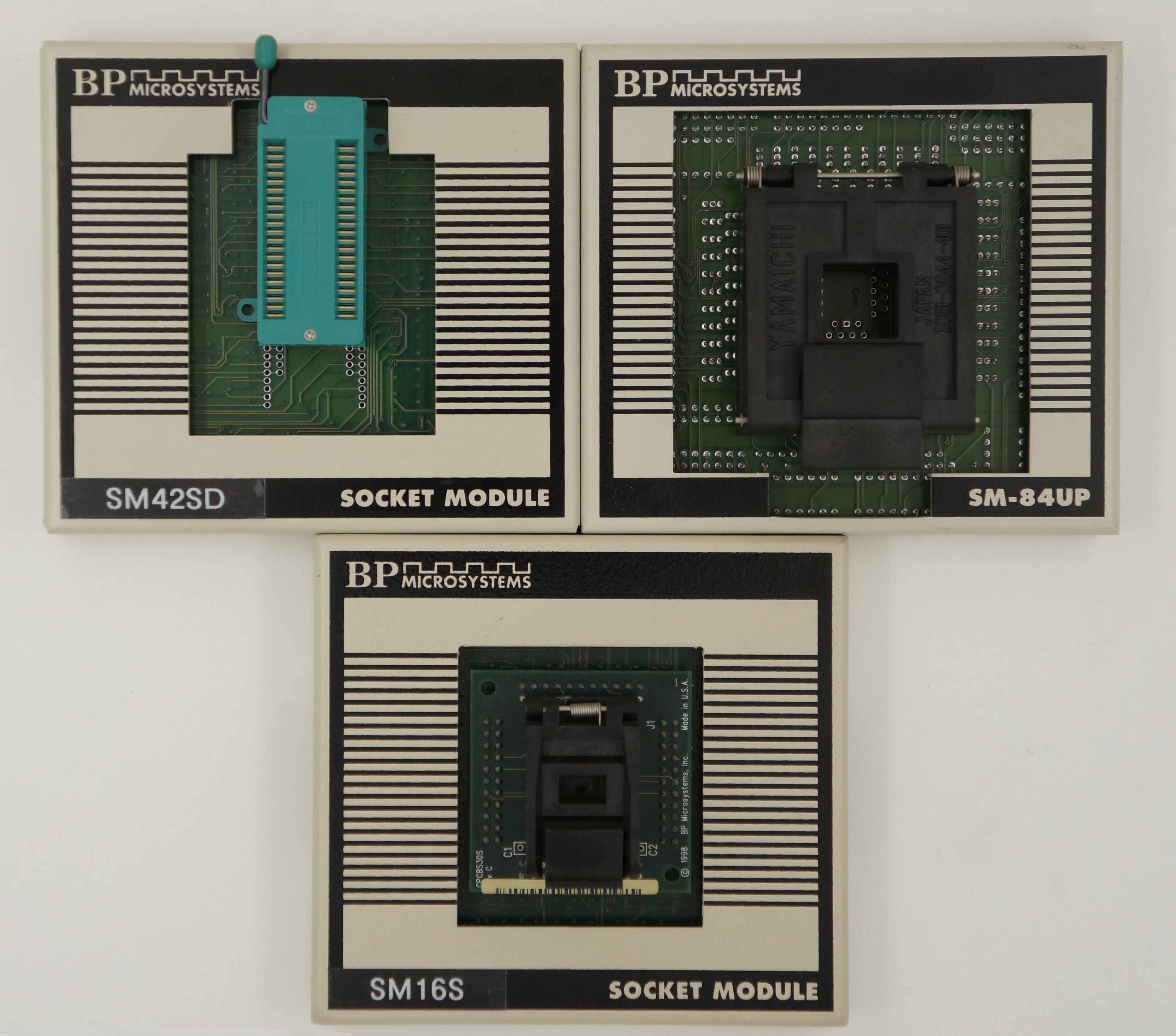

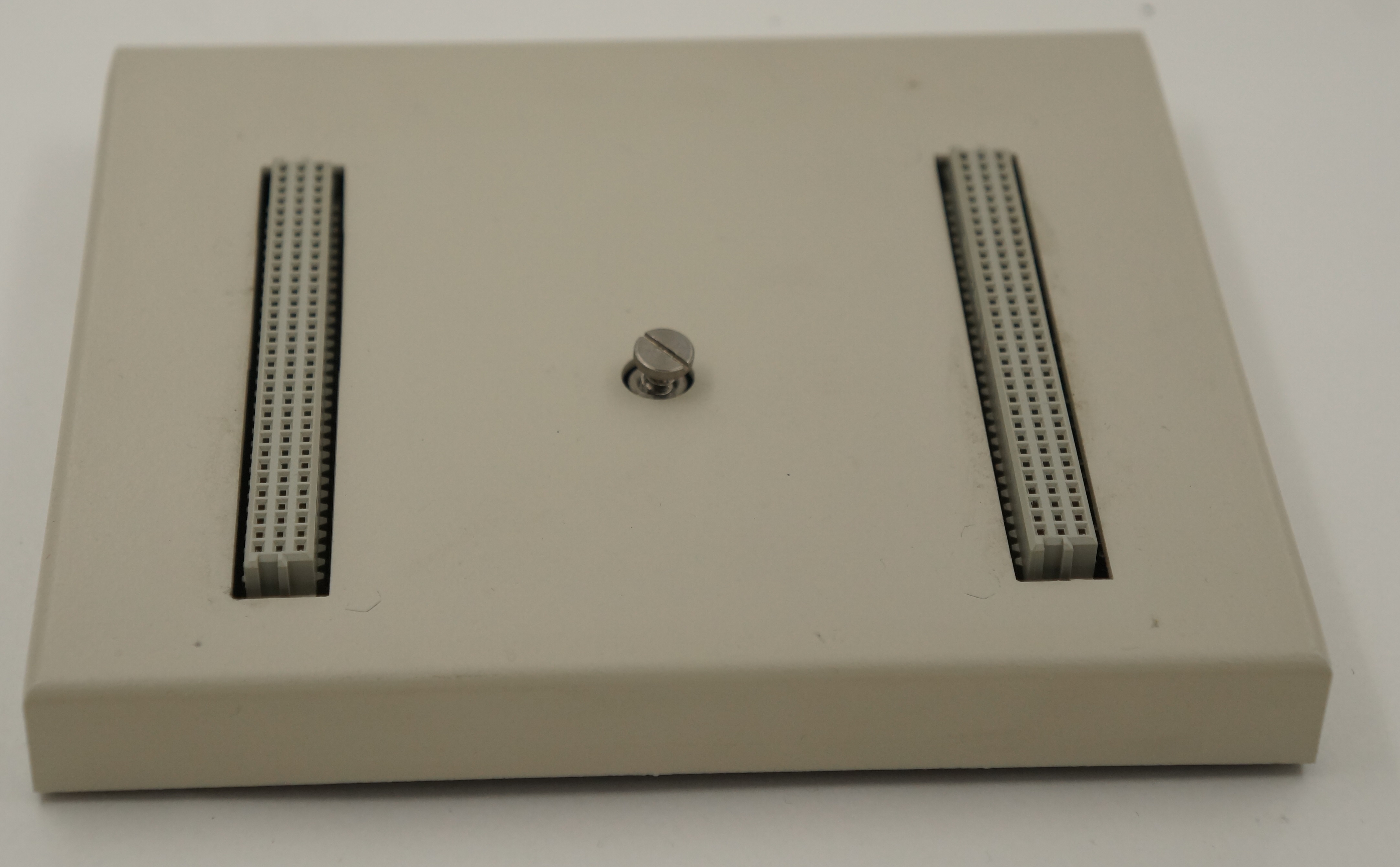

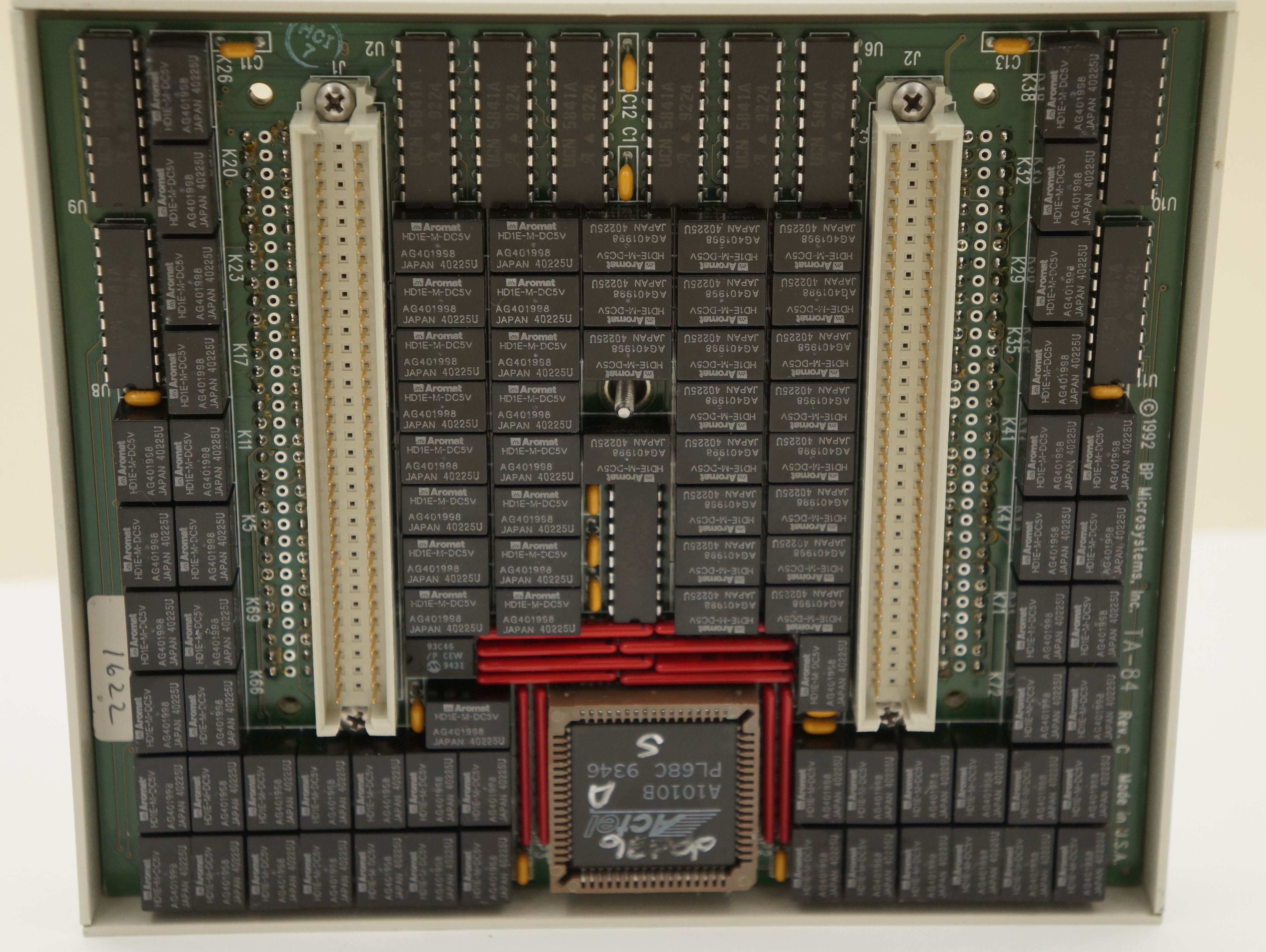

socket module TOP

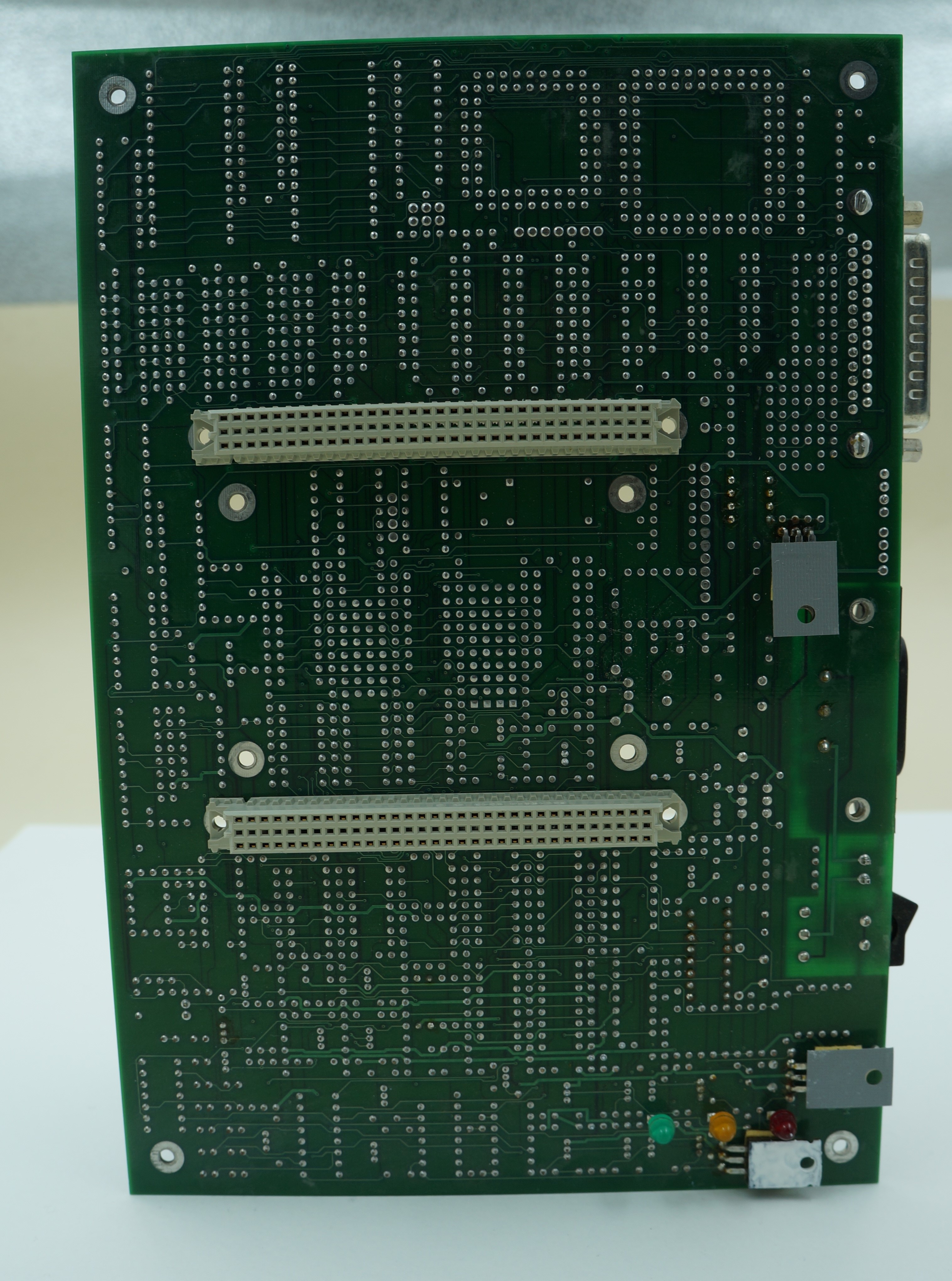

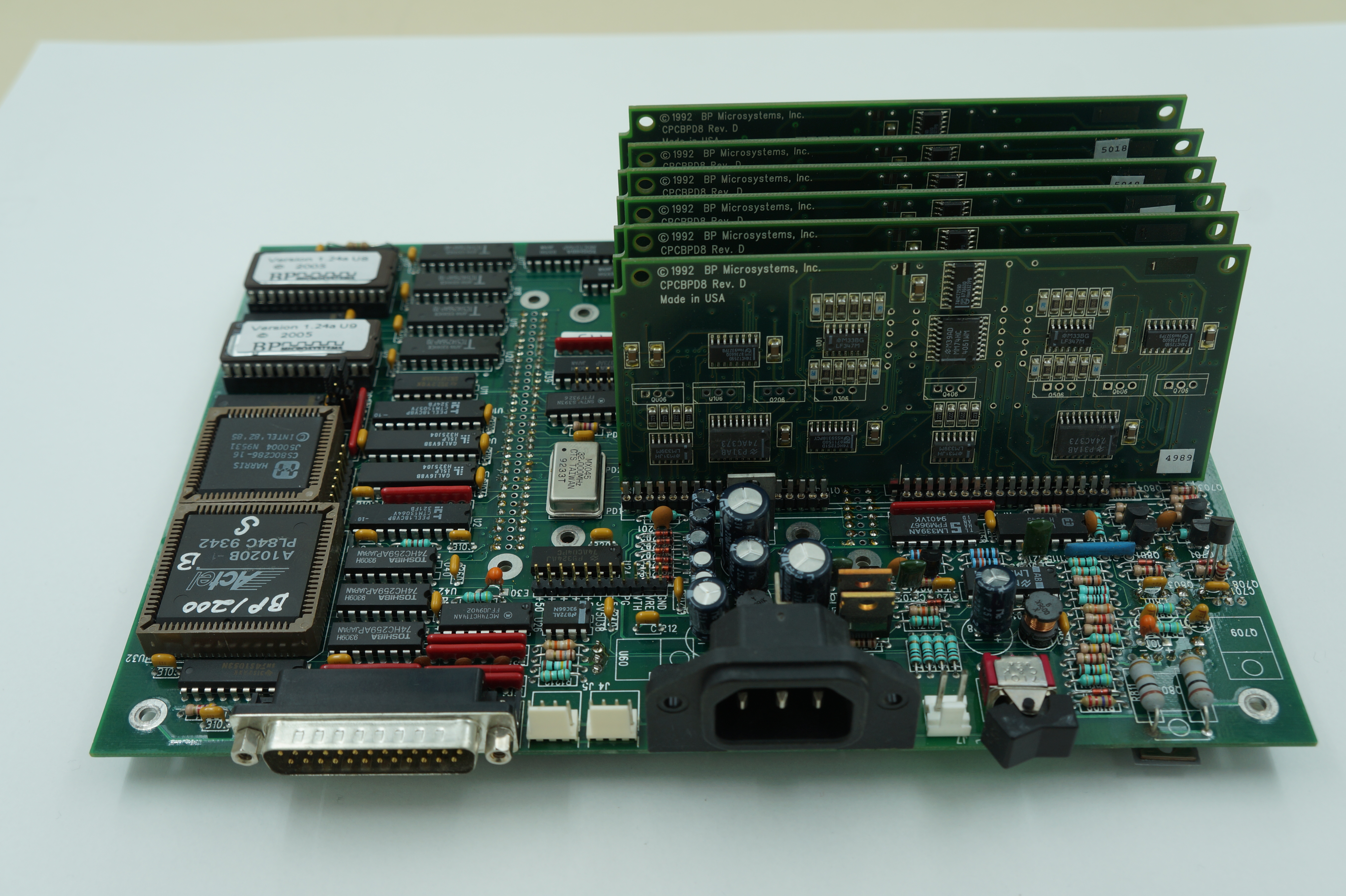

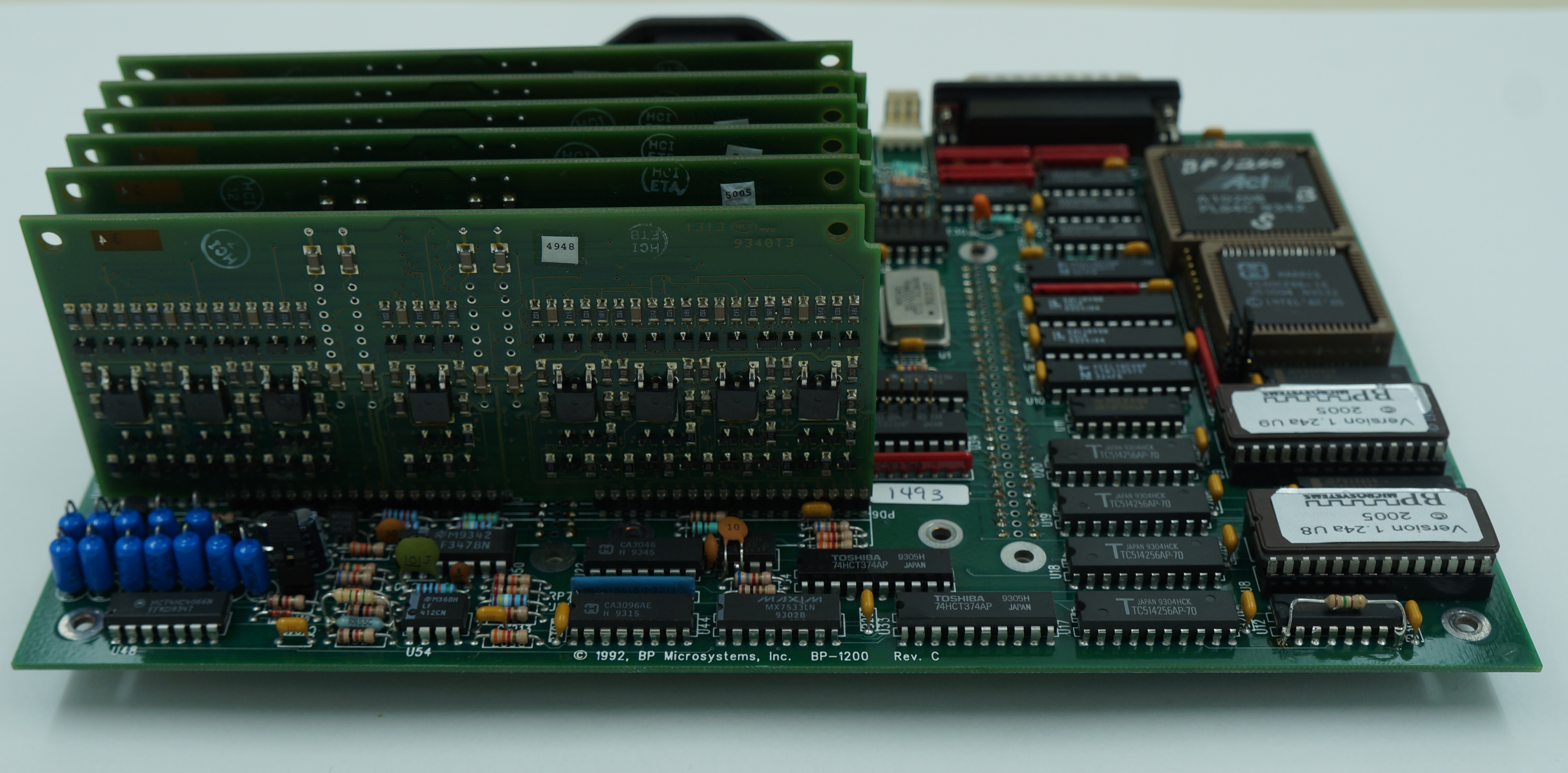

main board bottom

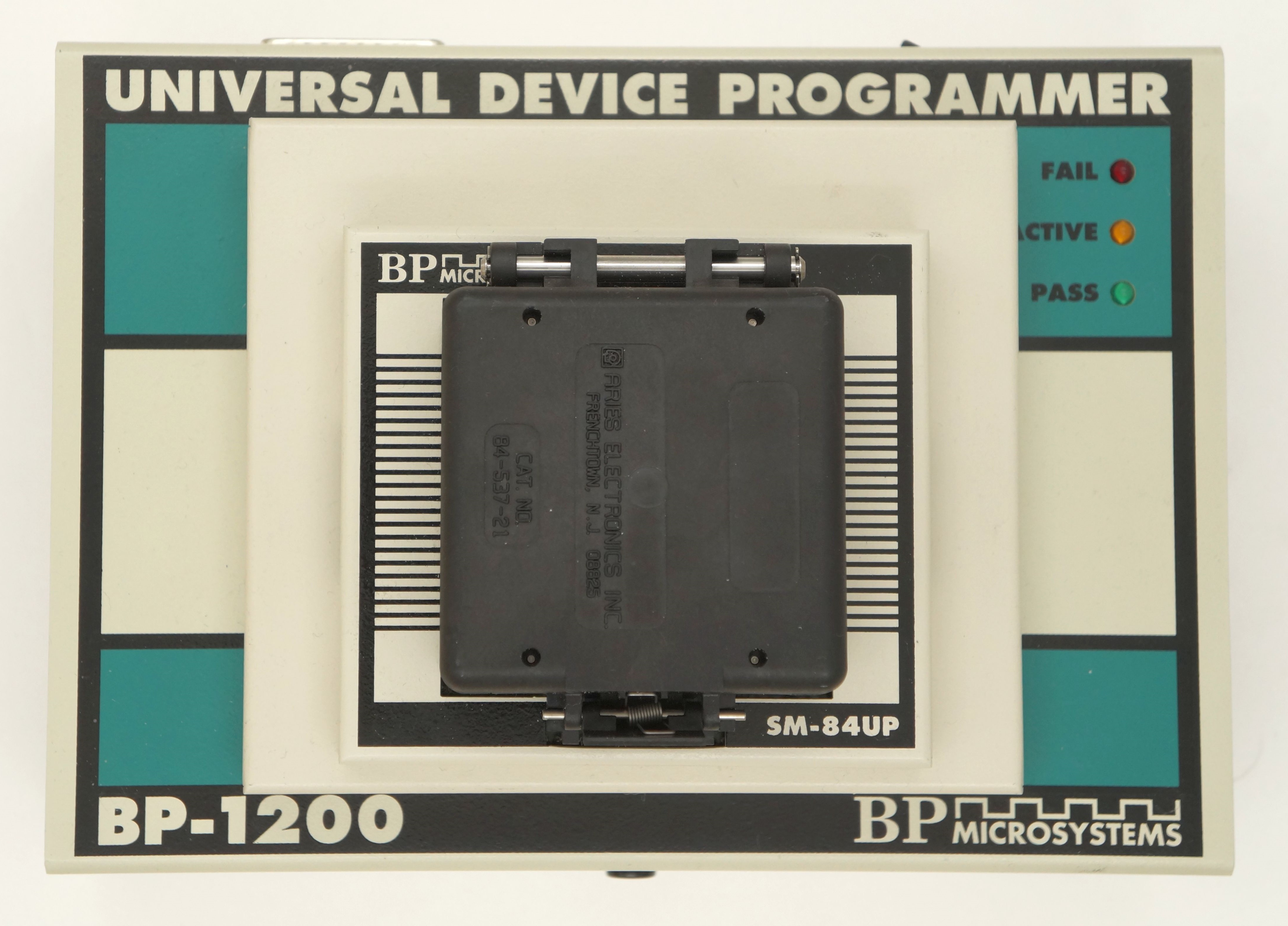

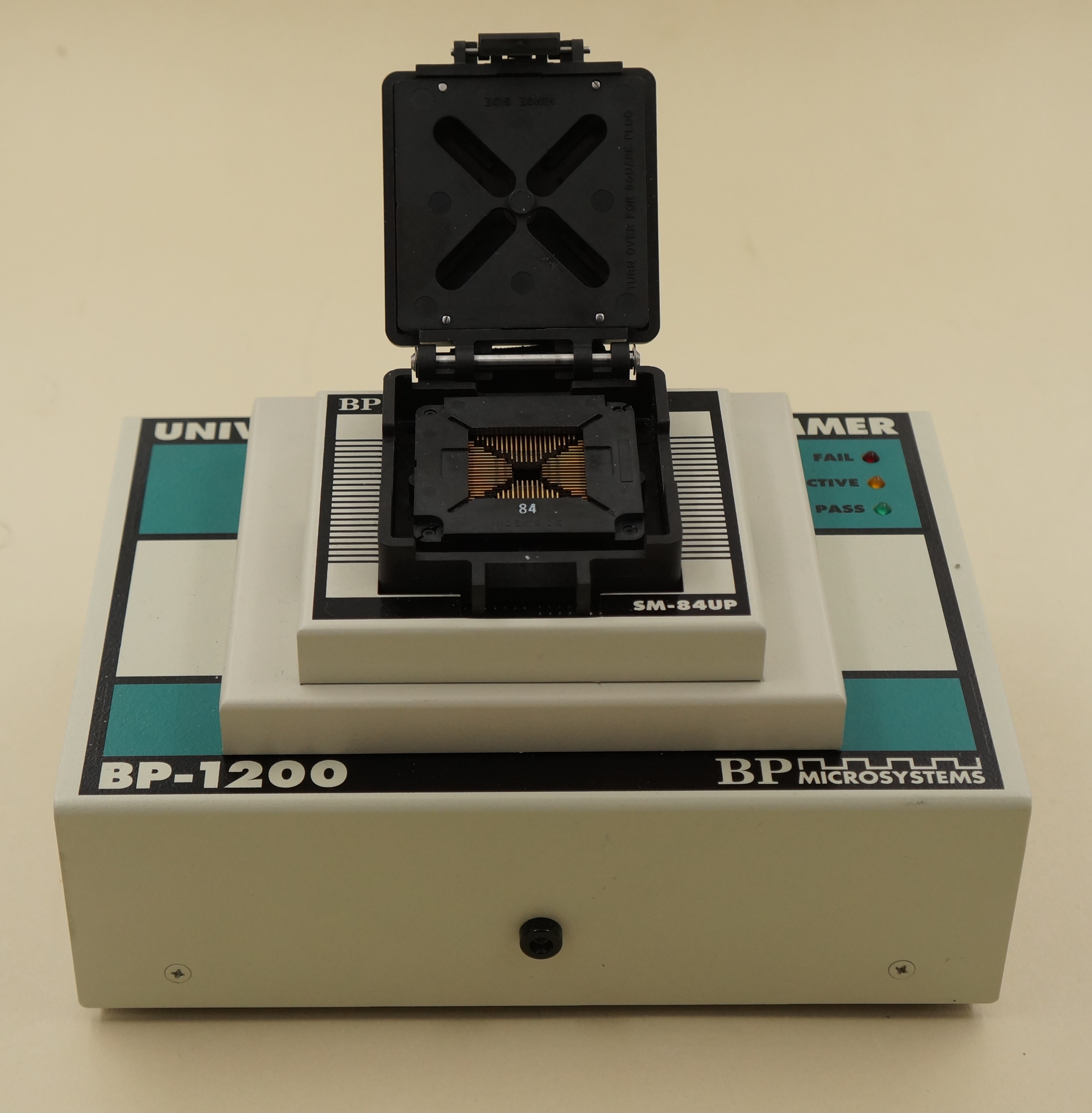

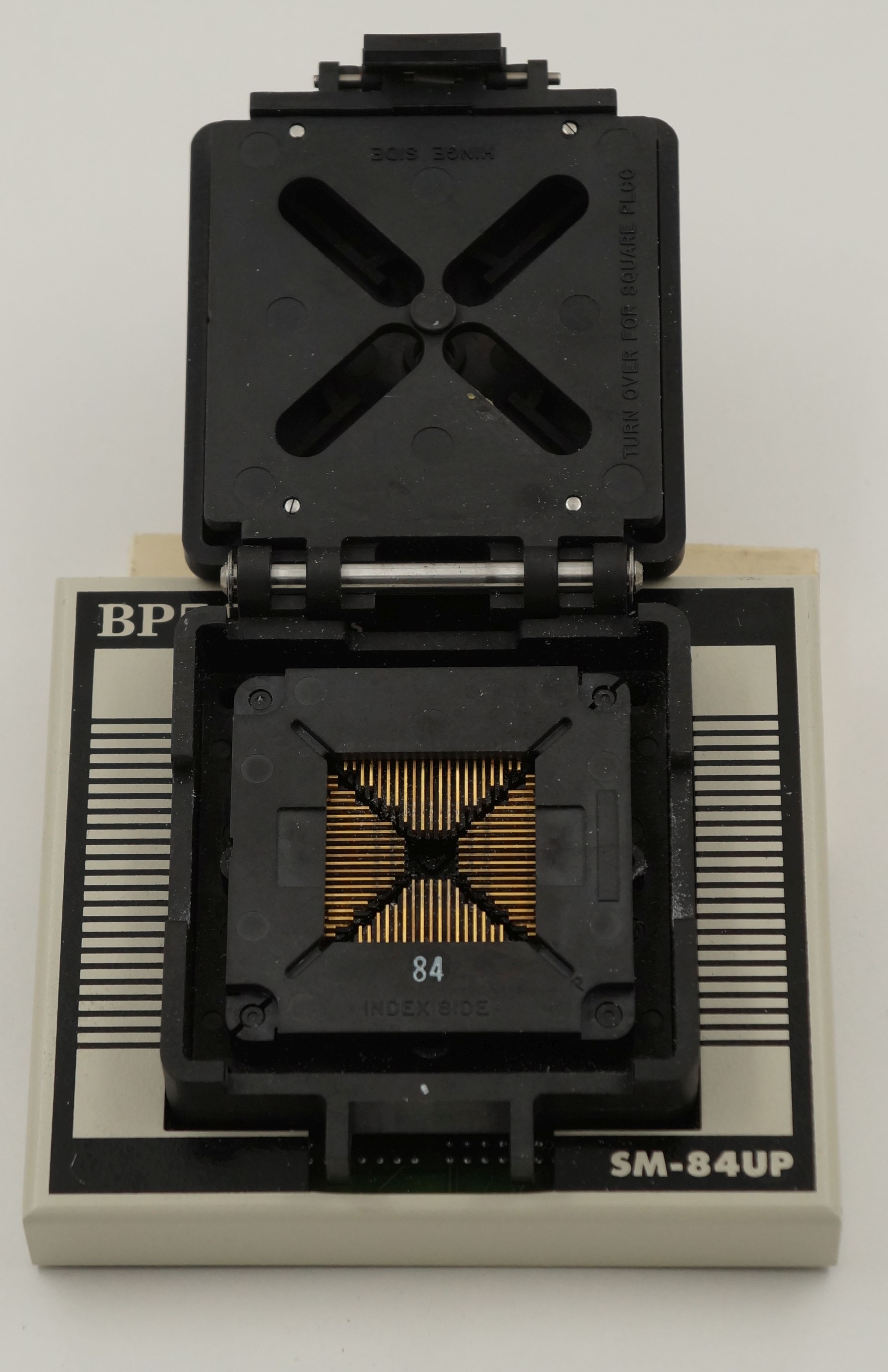

SM-84UP

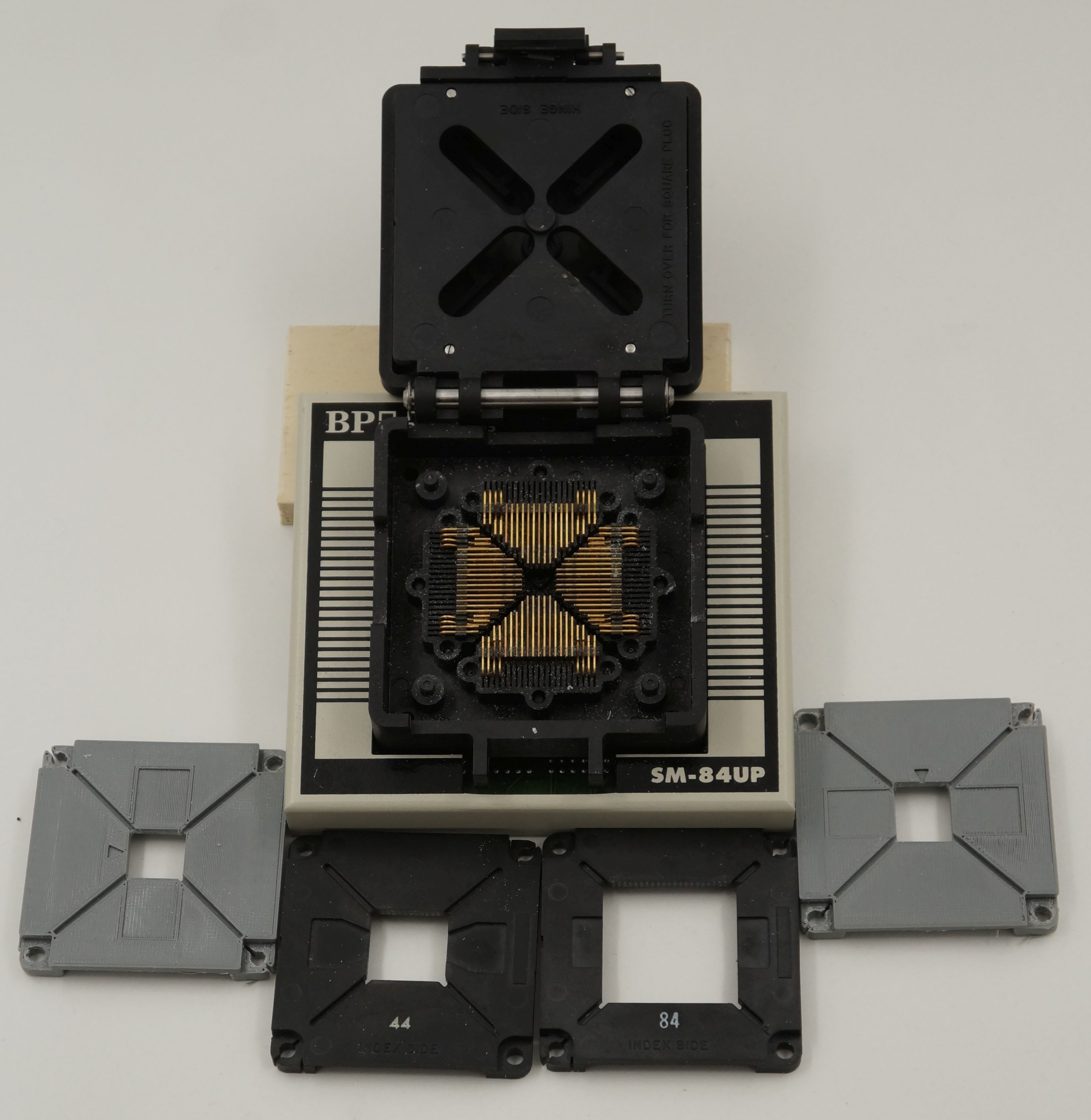

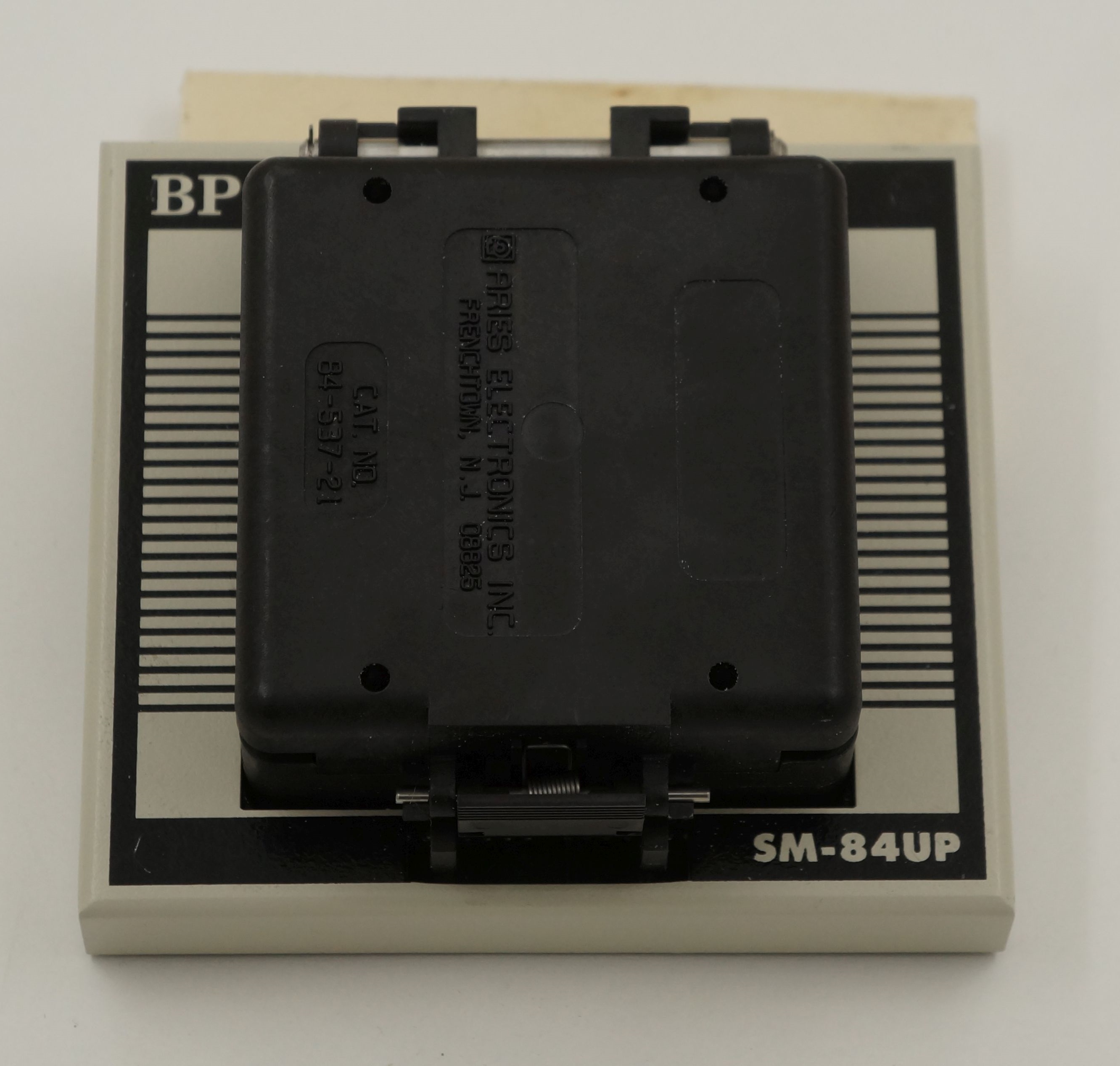

SM84UP adapter with original Aries Textool with four plcc masks, two original for 84 and 44 pins and two 3D printed for 28 and 32 pins.



power supply

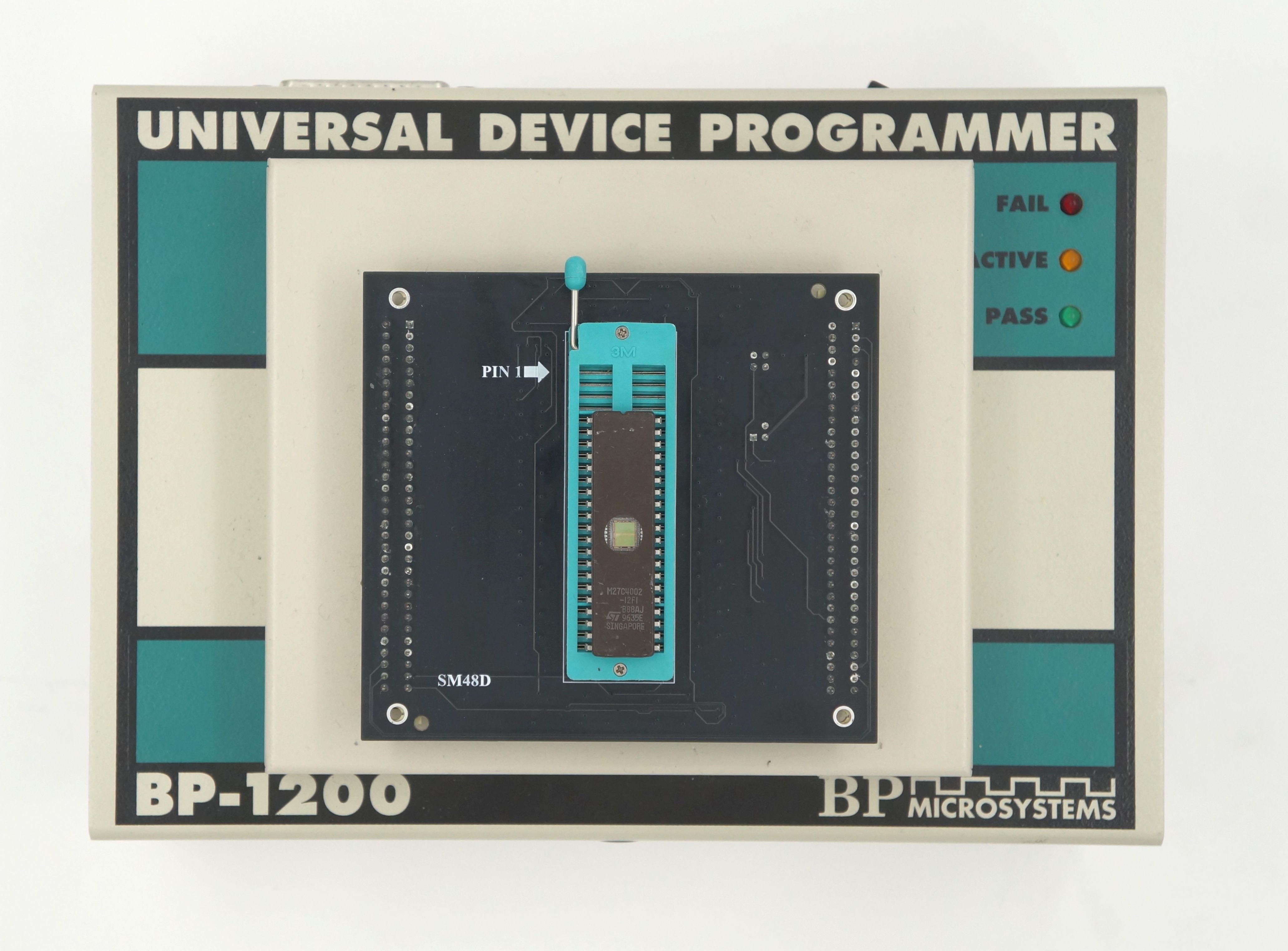

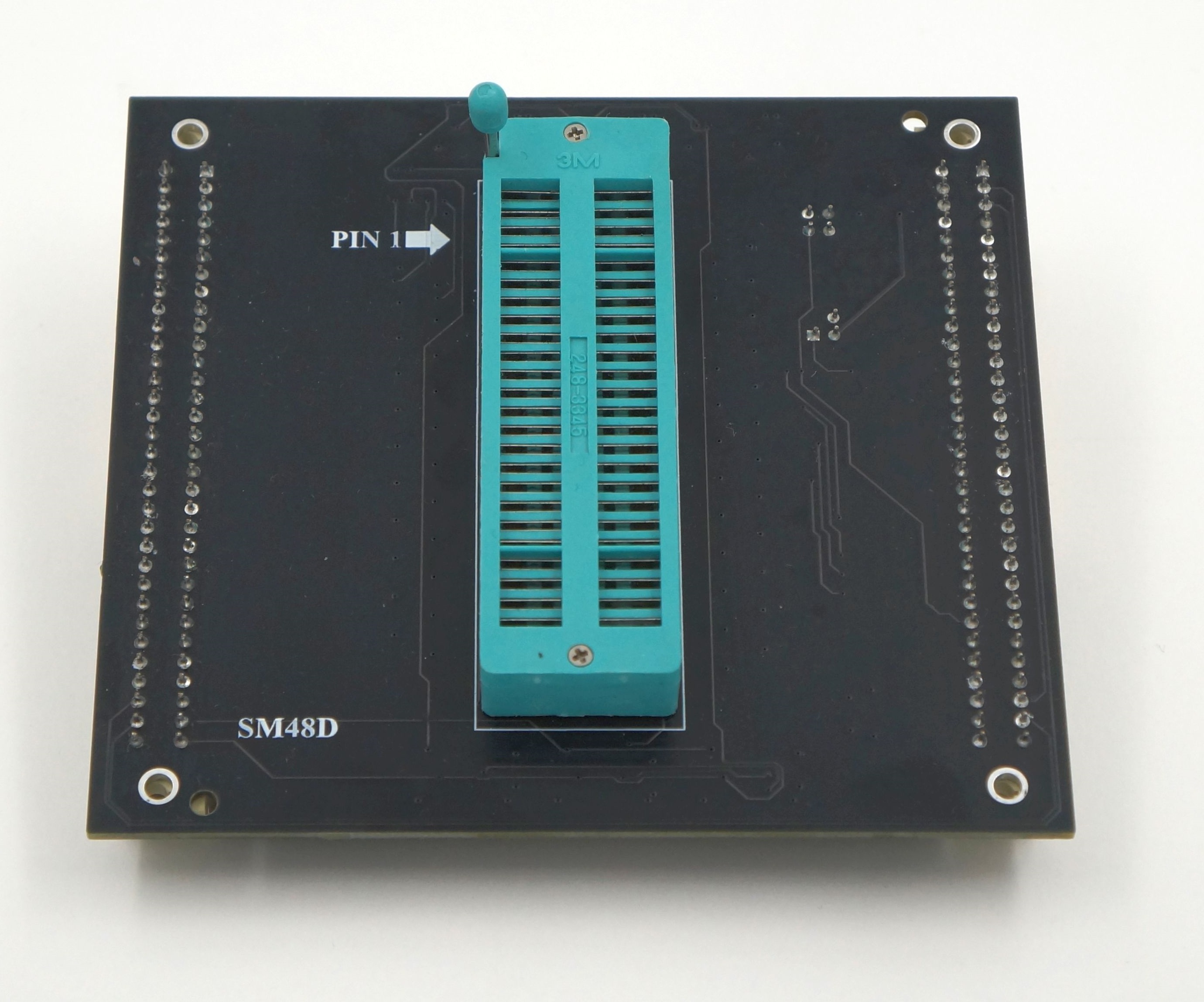

SM48D clone (DIP48 Textool) and it is recognized by the software and passes all the diagnostics.
