SPRINTPLUS48 (SMS) Programmer
Programmateur SprintPlus48.

SMS Sprint Plus48 resources page

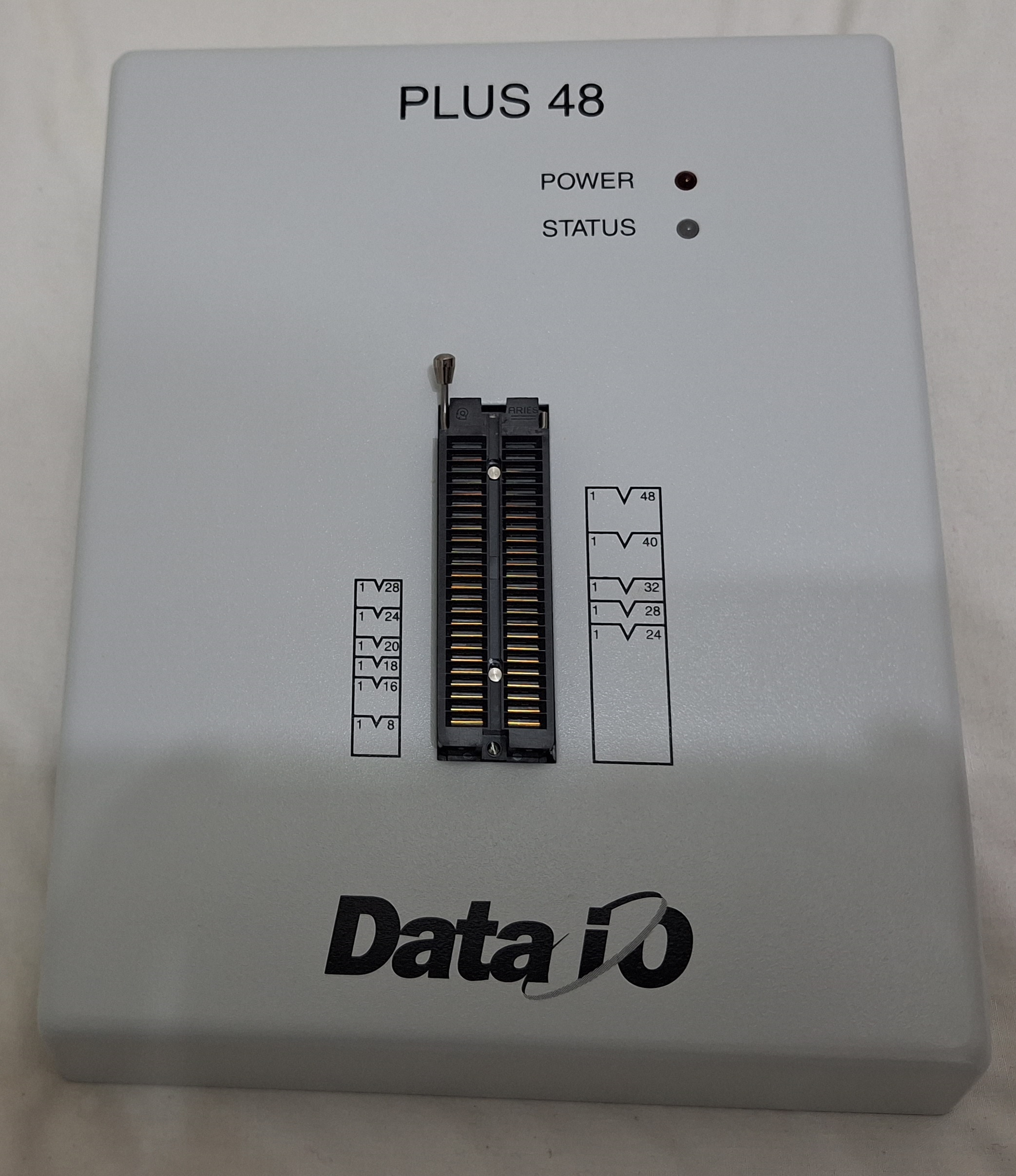

Dataio Sprint plus 48






1:1 parallel cable

ftp://ftp.dataio.com/device_lists/plus48.txt devices list

http://www.dataio.de/support/algo/sprint.htm
the software is still available on the net, on DataIO's FTP site:


http://ftp.dataio.com/sprint/optima/nt/


(should also work on Windows XP -or Windows 2000)


AFAIR, the software in the "../windows" directory is for Windows 9x and
will not run on Win2k/XP.



Software & Firmware Updates

Software available at this ftp server; The "NT" version is the one that runs on Windows 2000/XP http://ftp.dataio.com/ftp/sprint/optima/

Download the latest Sprint algorithms here:

DOS

 Windows 9x

 Win2000/NT/XP

Released Algorithms; all device types

 opt_dos.exe

 opt_win.exe

 opt_nt.exe

Interim-Release Algorithms for Logic Devices

 paldzipo.exe

 palwzipo.exe

 palntzip.exe

Interim-Release Algorithms for Memory Devices

 prsdzipo.exe

 prswzipo.exe

 prsntzip.exe

Interim-Release Algorithms for TOP432

 pr4dzipo.exe

 pr4wzipo.exe

 pr4ntzip.exe

Interim-Release Optima TEST

 tstdzipo.exe

 tstwzipo.exe

 tstntzip.exe


See also these intermediates release some which concern the plu48

sms/Floppy former archives

sms/CD former archives

full archive software (236 Mb)




http://ftp.dataio.com/ftp/sprint/optima/windows/versiono.txt
information about this version

sprint plus48 devices list http://ftp.dataio.com/ftp/device_lists/plus48.txt

Power supply to be used with the programmer





Not sure if I can help there. My SMS48 was already unlocked for 48 pins, so all I had to do was patch the expiration date. Unfortunately, I damaged my EEPROM during testing, so all i had was the logic analyzer traces I captured earlier, but those do not contain all registers - the DOS software will not run using my EEPROM, but the windows NT version works (it seems the windows version queries fewer EEPROM contents).

The attached SMS48-eeprom2.c contains 2 EEPROM sets - my own (damaged) and a dump I got from another user, where I don't know what features are enabled.

I suspect that the EEPROM contains other data besides serial number, 48-pin support and expiration - there were multiple hardware patches to the SMS48,
and I got the impression those were documented in the EEPROM and used by the software.

That means it is probably not a good idea to simply copy the EEPROM contents from one SMS48 (eg. mine with 48 pin support) to a different unit with different patch level.

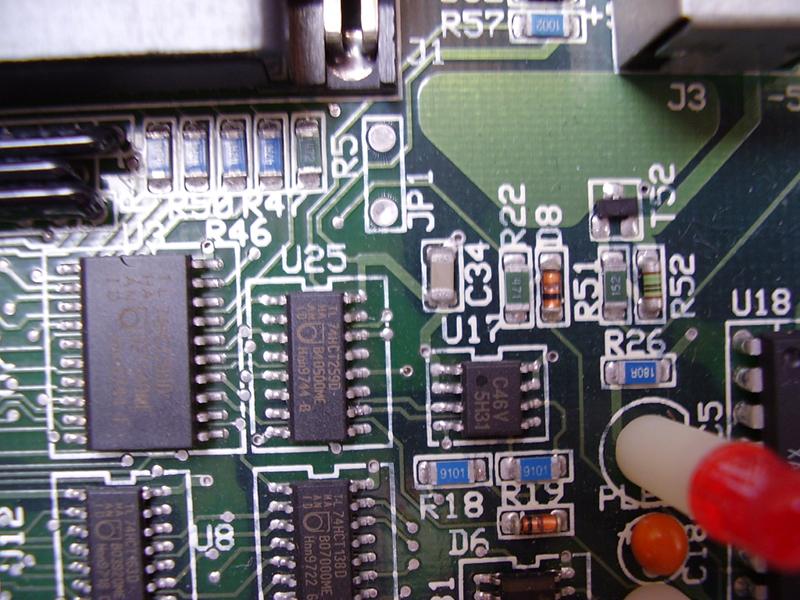

IIRC, it was the rotated version - best check using a continutity tester and the 93C46 datasheet. What I can see on SprintPlus48_5.jpg seems to match the rotated pinout (1/2 = VCC, 7/8 = GND).

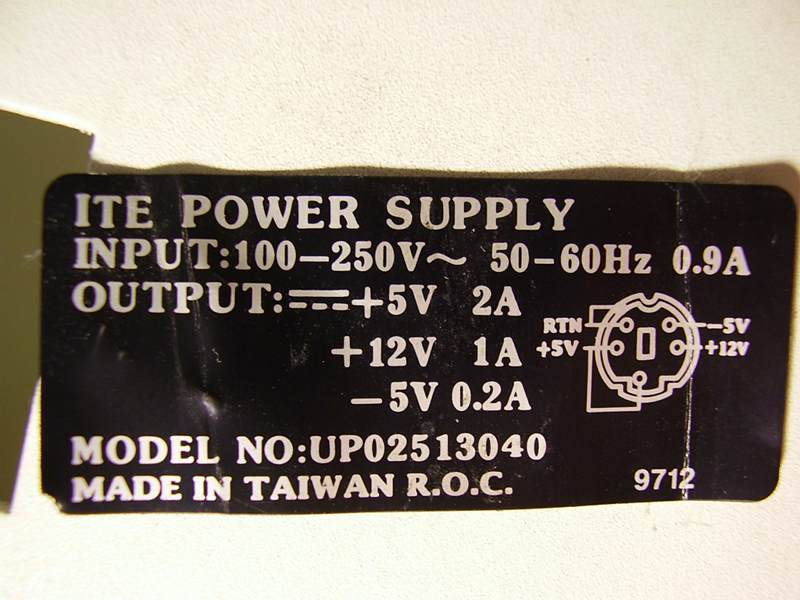

See the attached SprintPlus48_Power.jpg - that is the label from the original supply, which I had to remove in order to open it (bad caps, the screw is under the label).

test done with the software located in dataio/optima/Disk1.zip (I installed it in a Windows 98 machine)





software Tasklink5.1

in https://groups.io/g/DataioEPROM/files/Data%20IO/PC%20Software/TaskLink the version that works with Sprint programmers is TLfWin 5.0.zip Report File TaskLink for Windows 5.0 . This installs TaskLink 5.02 , and supports the UniSite, Sprint, and FlashPak programmers

ProLine 48 programmer

this model of programmer integrates a power supply inside the case and is connected to the parallel port of a PC through a straight 1-1, ...,25-25 cable

as the sprint plus48 it integrates 6 ASIC SMS 2840

proline48 programmer more photos (PDF-)

http://matthieu.benoit.free.fr/dataio/optima/Disk1.zip

Programmer can work now with Level ALL and SMP 1/2017 with the disk1.zip above.





if you have any details about adapter S61x for Samsung S3F microcontrollers thank you to tell me.

Product Specification

SMS Sprint Expert, Top's, Optima, Plus48 commercial brochure (8 pages - 773 Kb)

******

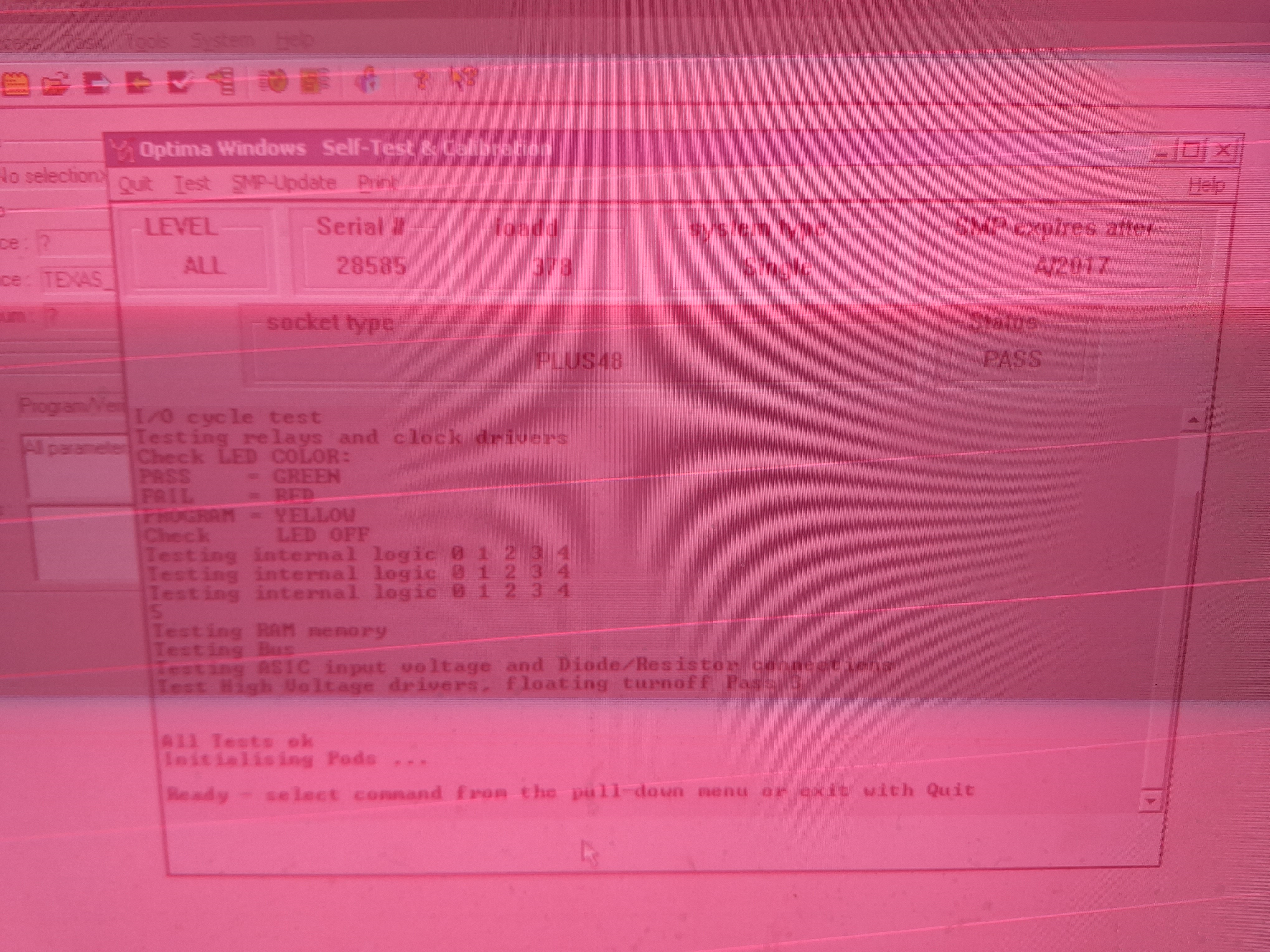

SMS sprint plus48 ASIC test



If you look forward for other information about these SMS GmbH TOP40DIP Sprint EXPERT Programmers, SprintPlus programmer, Sprint Plus48, do not hesitate to contact me by e-mail at: matthieu.benoit@free.fr . Also if you have any data about these programmers, do not hesitate to contribute to this page.

Si vous recherchez des informations pour ce programmateur , vous pouvez me contacter par e-mail : matthieu.benoit@free.fr . De même si vous avez des informations sur ce programmateur, n'hésitez pas à contribuer à cette page.
