WSI Magicpro, Magicpro III PSD devices programmer resources page

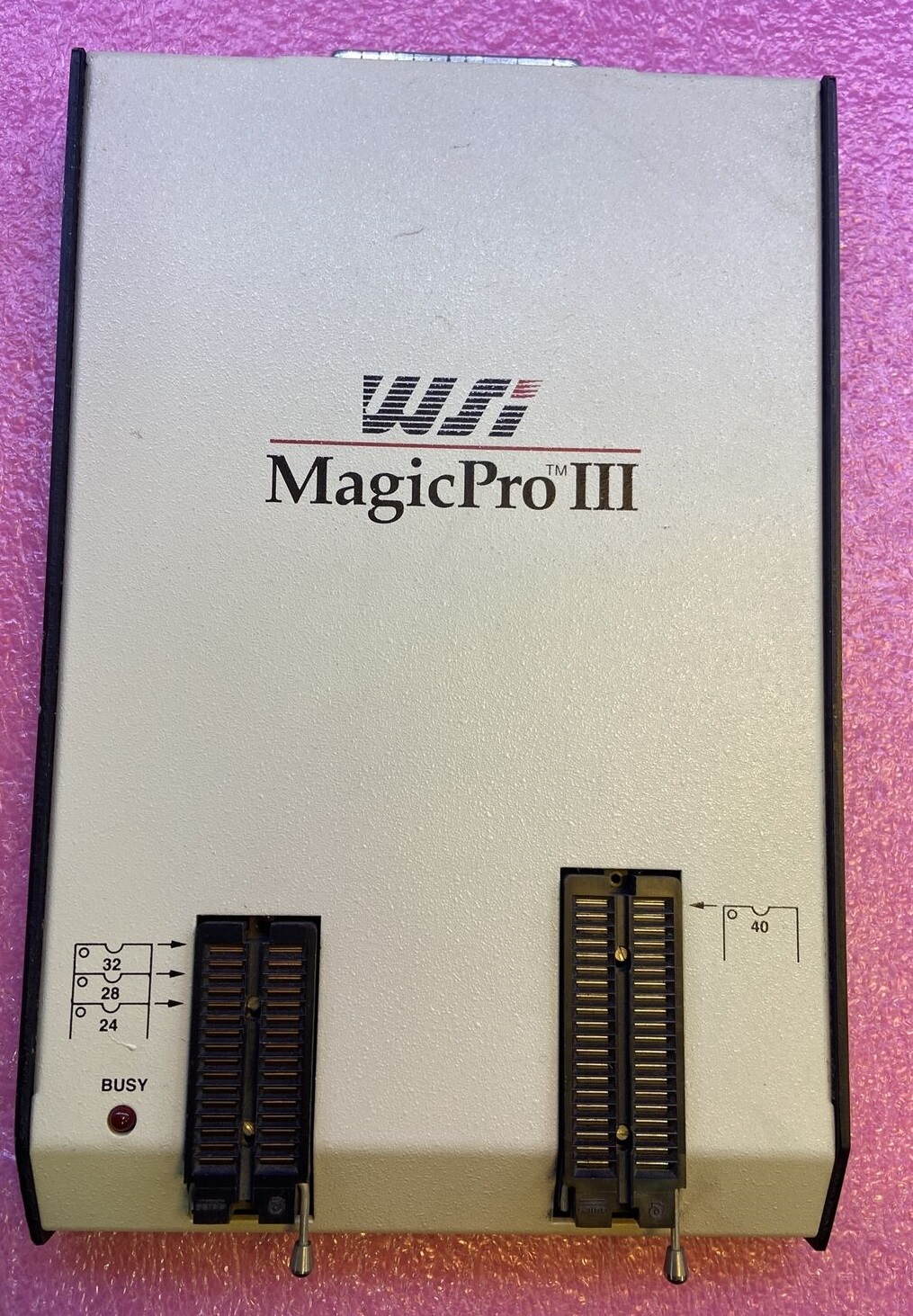

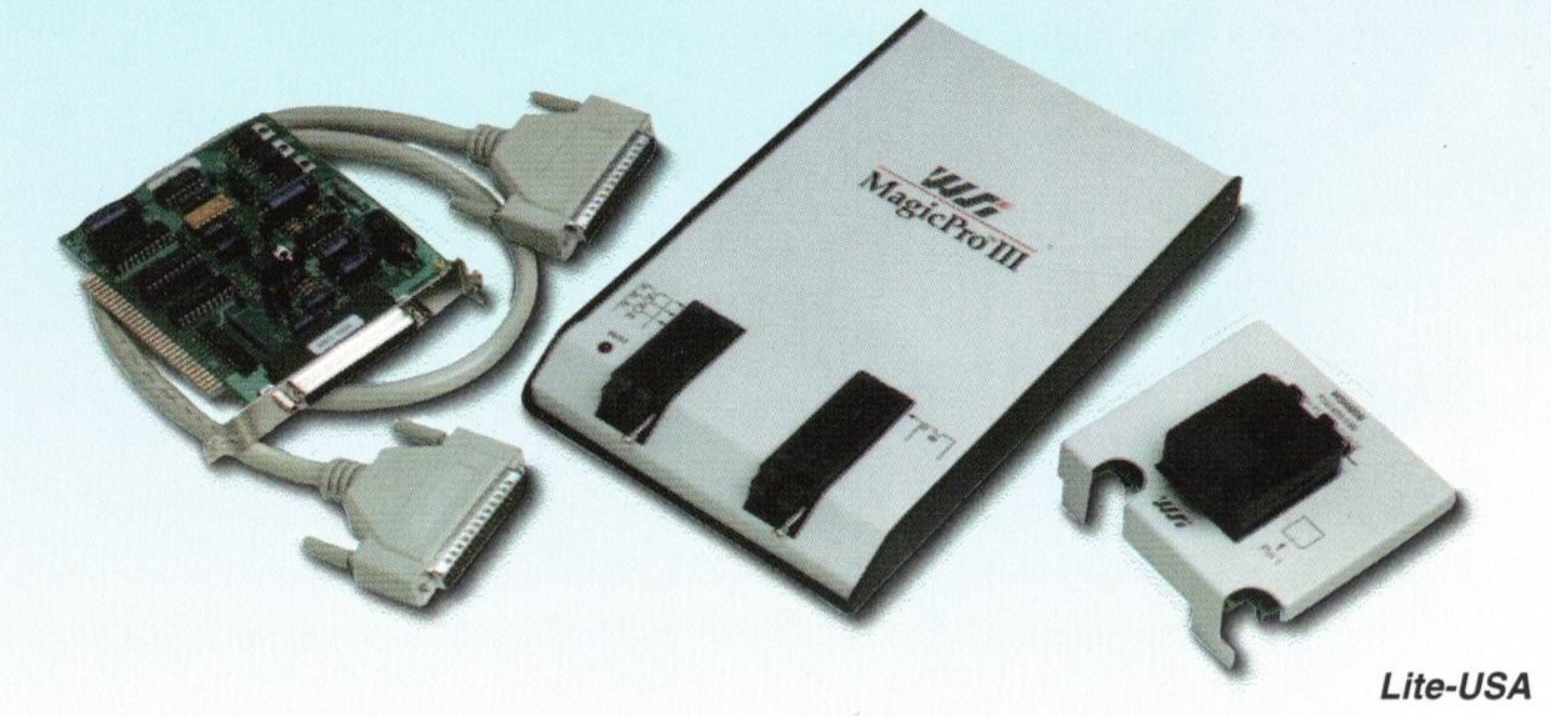

The MagicPro'III programmer
is an engineering development and prototyping tool and is used to program any
PSD device. The programming menu in PSDsoft simplifies programming on the MagicPro'III.
MAGICPRO
WAFERSCALE INTEGRATION, INC.
MAGICPRO™ MEMORY AND PSD
PROGRAMMER
KEY FEATURES
• Programs All WSI CMOS Memory
and PSD Products and All Future
Programmable Products
• Programs 24, 28, 32 and 40 Pin
Standard 600 Mil or Slim 300 Mil Dip
Packages Without Adaptors
• Programs LCC, PGA and QFP Packaged
Product by Using Adaptors
• Easy-to-Use Menu-Driven Software
• Compatible with IBM PC/XT/AT
Family of Computers (and True
Plug-Compatible)
GENERAL DESCRIPTION
MAGICPRO™ is an engineering development tool designed to program existing WSI
EPROMs, RPROMs,
Programmable System Devices, and future WSI programmable products. It is used
within the IBM-PC® and compatible 3computers. The MAGICPRO™ is meant to
bridge the gap between the introduction of a new WSI programmable
product and the availability of programming support from programmer manufacturers
(e.g., Data I/O, etc.). The
MAGICPRO™ programmer and accompanying software enable quick programming of newly
released WSI
programmable products, thus accelerating the system design process.
The MAGICPRO™ plug-in board is integrated easily into the IBM-PC®. It occupies
a short expansion slot and its
software requires only 256K bytes of computer memory. The two external ZIF-Dip
sockets in the Remote Socket Adaptor
(RSA) support 24, 28, 32 and 40 pin standard 600 mil or slim 300 mil Dip packages
without adaptors. LCC, PGA
and QFP packages are supported using adaptors.
WS6000
Many features of the MAGICPRO™ Programmer show its capabilities in supporting
WSI's future products. Some of
these are:
- 24 to 40 pin JEDEC Dip pinouts
- 1 Meg. address space (20 address lines)
- 16 data I/O lines
The MAGICPRO™ menu driven software makes using different features of the MAGICPRO™
an easy task. Software
updates are done via floppy disk which eliminates the need for adding a new
memory device for system upgrading.
Please call 800:rEAM-WSI for information regarding programming WSI products
not listed herein. The MAGICPRO™
reads Intel Hex format for use with assemblers and compilers.
MAGICPRO™ COMMANDS
- Help
- Upload RAM from device
- Load RAM from disk
- Write RAM to disk
- Display RAM data
- Edit RAM
- Move/copy RAM
- Fill RAM
- Blank test device
- Verify device
- Program device
- Select device
- Configuration
- Quit MagicPro™
TECHNICAL INFORMATION
• Size: IBM-PC®short length card
WSI PRODUCTS
WS57C191/191B/291/291B
WS57C43/43B
WS57C49/49B
WS57C51/51B
WS27C64F/L
WS57C64F
WS57C65
WS57C66
WS27C128F/L
WS57C128F
WS27C256F/L
WS57C256F
WS57C257F
WS27C512F/L
WS27C010L
MAP168
PAC1000
SAM448
PSD301
2K x 8 RPROM
4K x 8 RPROM
8K x 8 RPROM
16K x 8 RPROM
8K x 8 EPROM
8K x 8 EPROM
4K x 16 EPROM
4K x 16 EPROM
(Mux 110, 28 Pin DIP)
16K x 8 EPROM
16K x 8 EPROM
32K x 8 EPROM
32K x 8 EPROM
16K x 16 EPROM
64K x 8 EPROM
128K x 8 EPROM
• Port Address Location: 100H to 1FFH-default 140H (If a conflict exists with
this address space, the address location
can be changed in software and with the switches on the plug-in board.)
• System Memory Requirements: 256K bytes of RAM
• Power: +5 Volts, 0.03 Amp.; +12 Volts, 0.04 Amp.
• Remote Socket Adaptor (RSA): The RSA contains two ZIF-Dip sockets that are
used to program and read WSI
programmable products. The 32 pin ZIF-Dip socket supports 24, 28 and 32 pin
standard 600 mil or slim 300 mil
Dip packaged product. The 40 pin ZIF-Dip socket supports all 40 pin Dip packages.
Adaptor sockets are available
for LeC, PGA and QFP packages.
3-14 WAFERSCALE INTEGRATION, INC.
ORDERING INFORMATION
The WS6000 MAGICPRO™ System contains:
• MAGICPRO™ IBM-PC®plug-in
programmer board
• MAGICPRo™ Remote Socket Adaptor
and cable

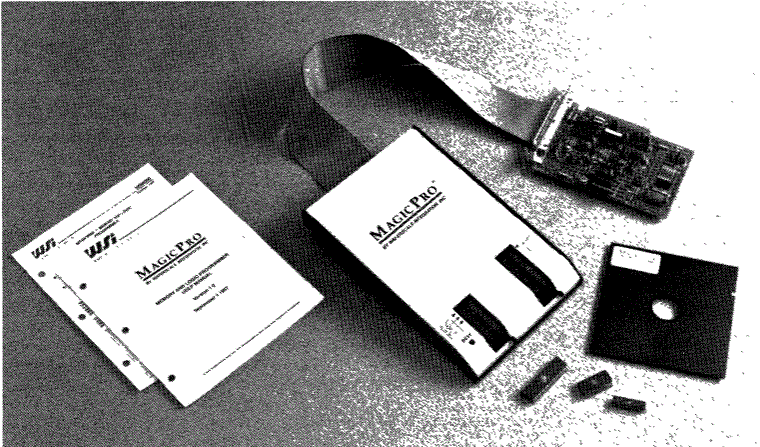

• MAGICPRO™ Operating System Floppy Disk
and Operating Manual
IBM-PC'" is a registered trademark of IBM Corporation.
WS6000
MAGICPRO™ Adaptors Include:
• WS6001 28 Pin CLLCC Package adaptor for memory.
• WS6003 44 Pin PLDCC/CLDCC/CLLCC package adaptor
for MAP168.
• WS6008 28 Pin 0.3" wide DIP adaptor for SAM448.
• WS6009 28 Pin PLDCC/CLDCC/CLLCC package adaptor
for SAM448.
• WS6010 88 Pin PGA package adaptor for PAC1000.
• WS6011 44 Pin PGA package adaptor for MAP168.
• WS6012 32 Pin CLDCC package adaptor for memory.
• WS6013 100 Pin QFP package adaptor for PAC1000.
• WS6014 44 Pin CLDCC/PLDCC package adaptor for
MAP168 and PSD301.
• WS601544 Pin PGA package adaptor for MAP168 and
PSD301.
MAGICPRO'" is a trademark of WaferScale Integration, Inc
See the archives from Arcadecomponents.com / Raymond Jett
https://www.arcadecomponents.com/f/MAGICPRO4.02.zip
https://www.arcadecomponents.com/f/MAPPRO5.2.zip
other resources:

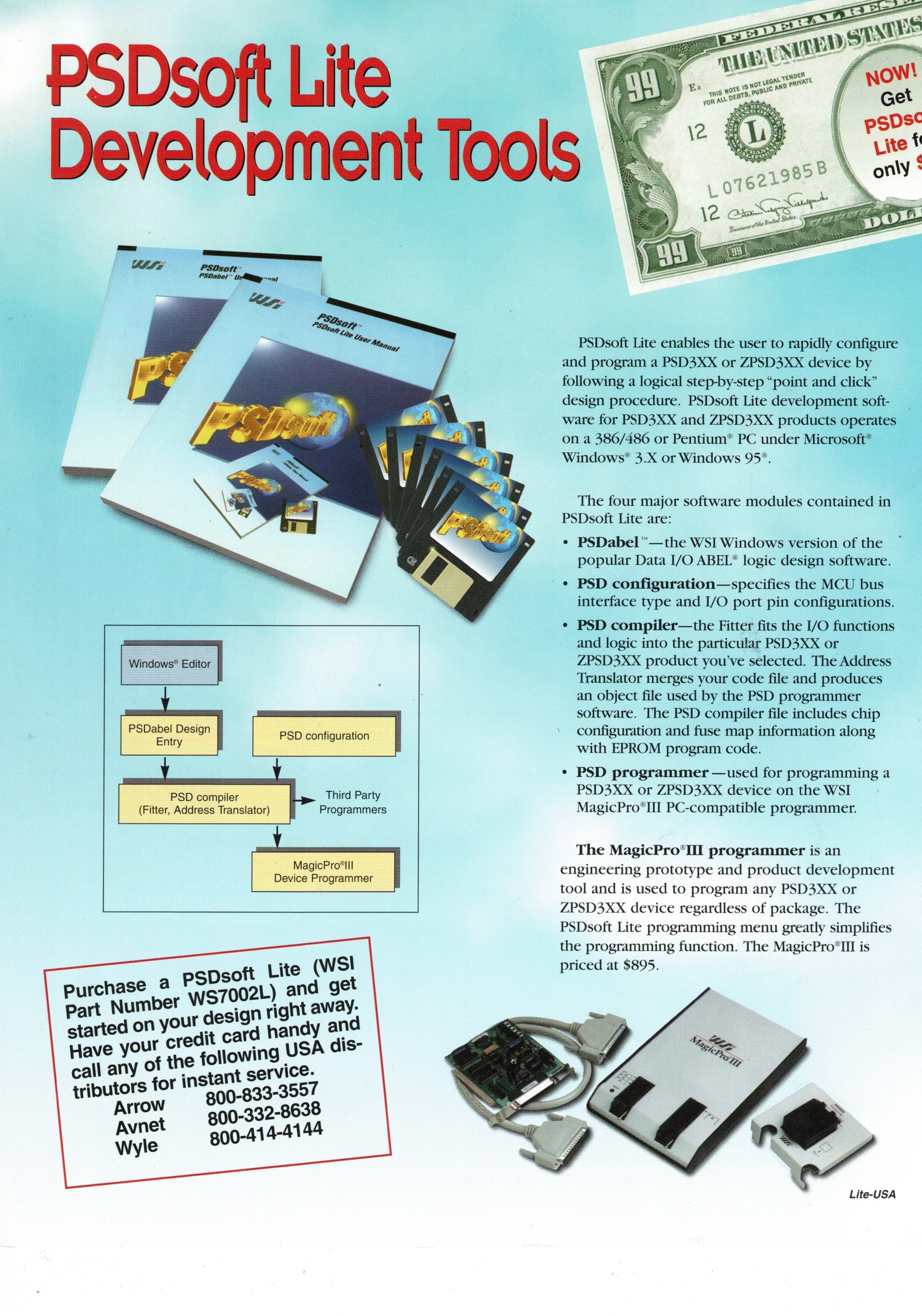

WSI PSDsoft Lite User manual 1997
WSI PSD | WSI PSD 1998 cdrom | 1998 | Microel | |
WSI PSD | WSI PSD soft 5-05 cdrom | v.5-05 | Microel | |
PSD and Memory Products | 1998 Edition Version 2.0 | Microel | ||
WSI PSDsoft Lite Demo floppy | archive | 1996 | Microel | |
WSI PSD SoftLite 2.10 |
you can download this archive of PSDSOFT_LITE2.10 archives/PSDSOFT_LITE2-10.zip (3.36Mb) it is written on the paper that is with it : WSI ZM-0331-01 |
Microel |
- WSI
PSDsoft™ PSDabel™ - HDL Reference Manual (printed 5/97 Waferscale
Semiconductors Inc.)
- WSI
High-Performance Non-volatile Memory (printed 10/91)
- WSI
Programmable Peripherals Design and Applications Handbook (printed 2/92)

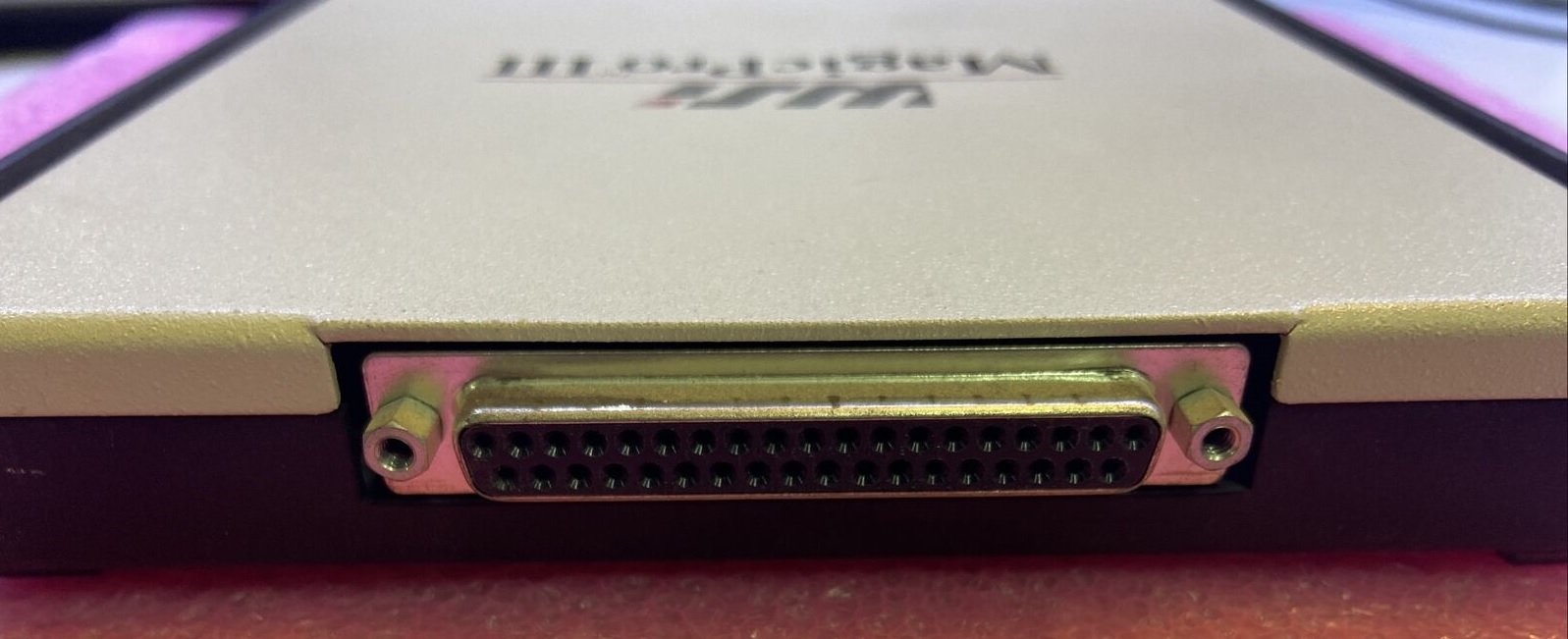

rear DB-37 connector
WSI ZM-0331-01 PSDsoft Lite version 2.10 (3 floppy disks 1.44Mb) (3.36Mb)
PSDsoft Version 5.05 run on Windows95/98 or Windows NT and has the following feature enhancements:
- New, more user friendly interface
- Supports WSI's new Flash PSD family - PSD813F1-F5
- Supports WSI's new PSDpro programmer (as well as the older Magic Pro III and Pep300 programmers)
- Latest programming algorithms for the entire PSD family - PSD2xx-PSD8xx (OTP and Flash based)
Note: Future upgrades to this software can be downloaded at no charge from http://www.waferscale.com by selecting "Software Center"

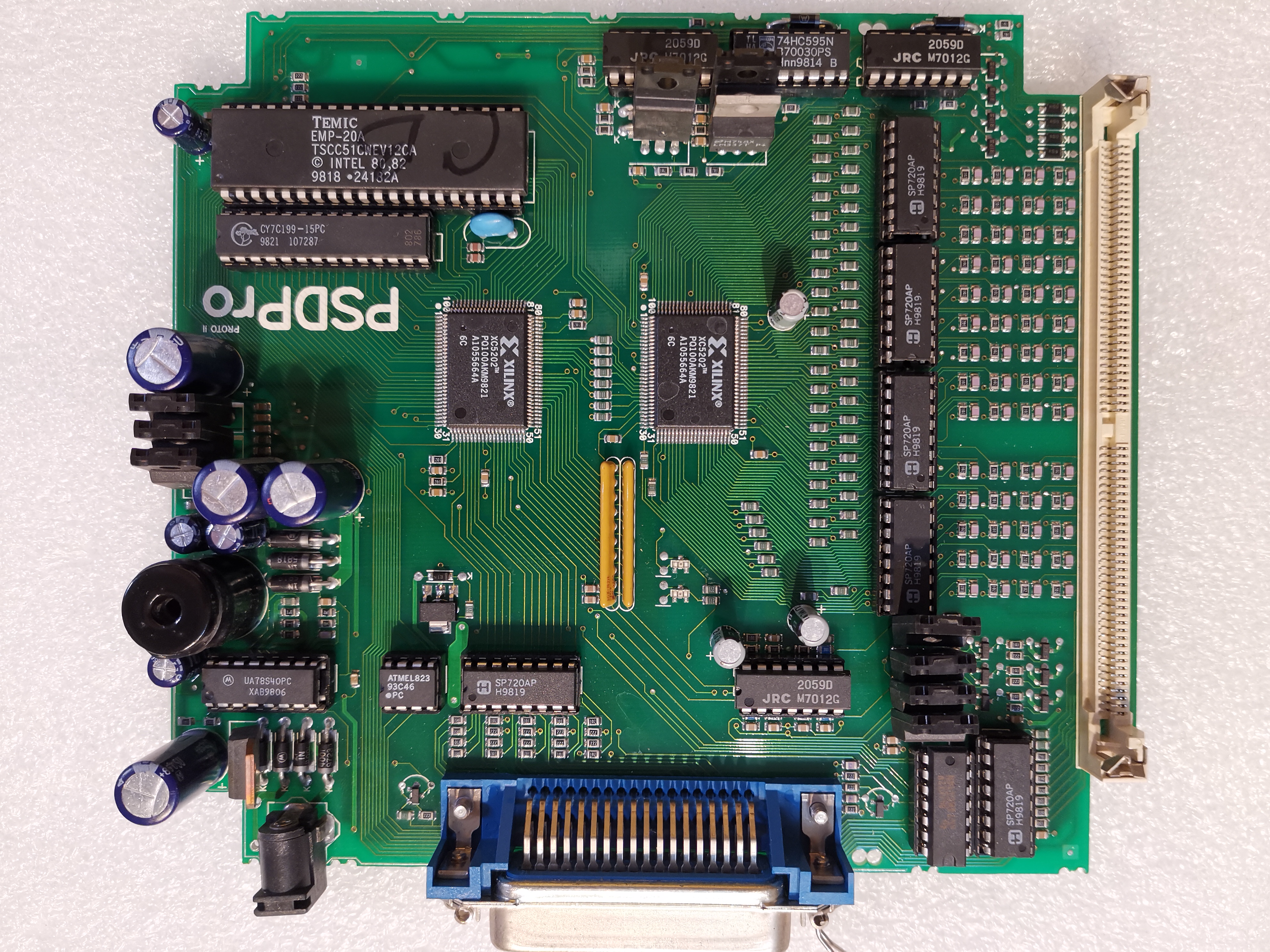

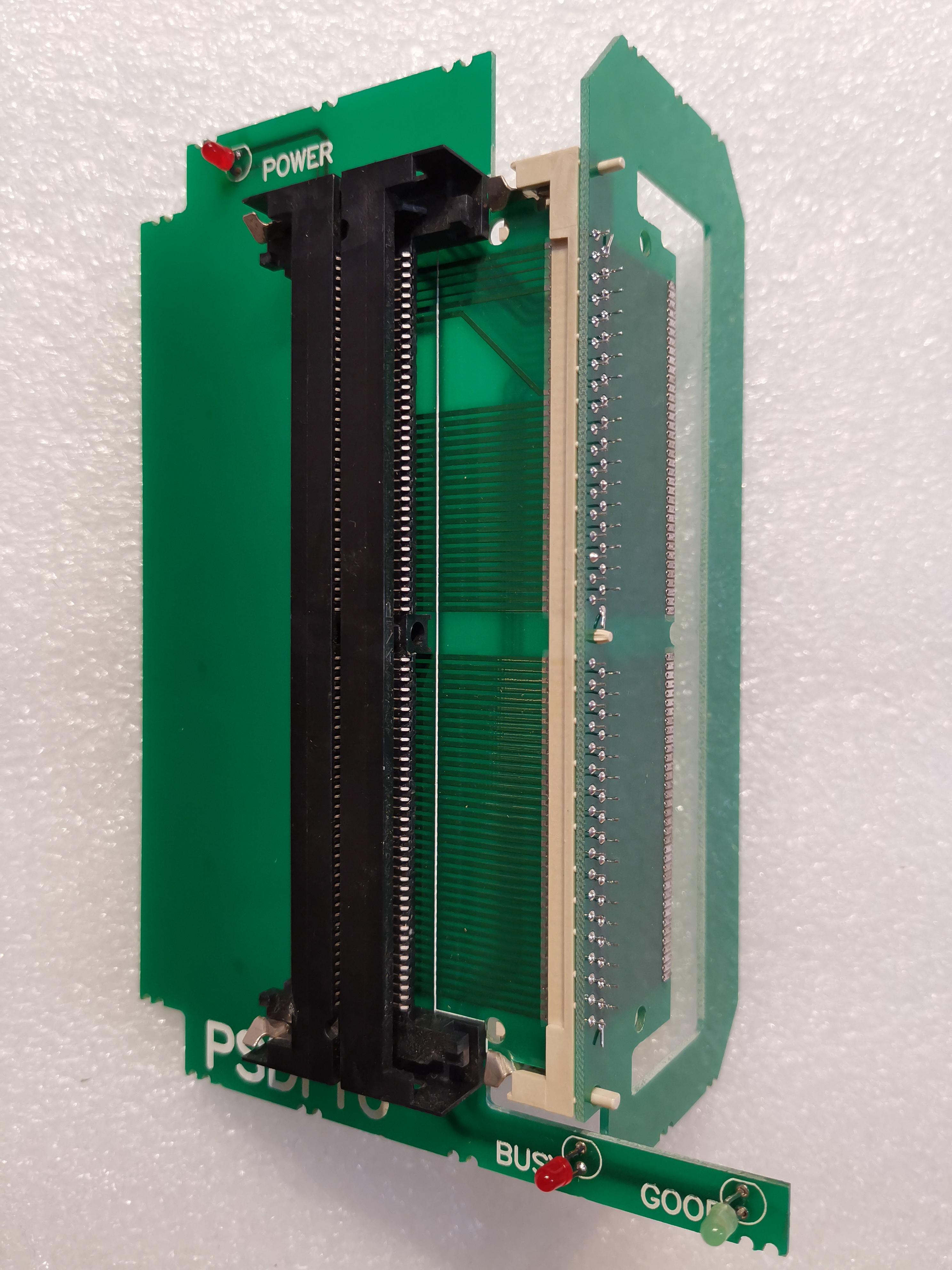

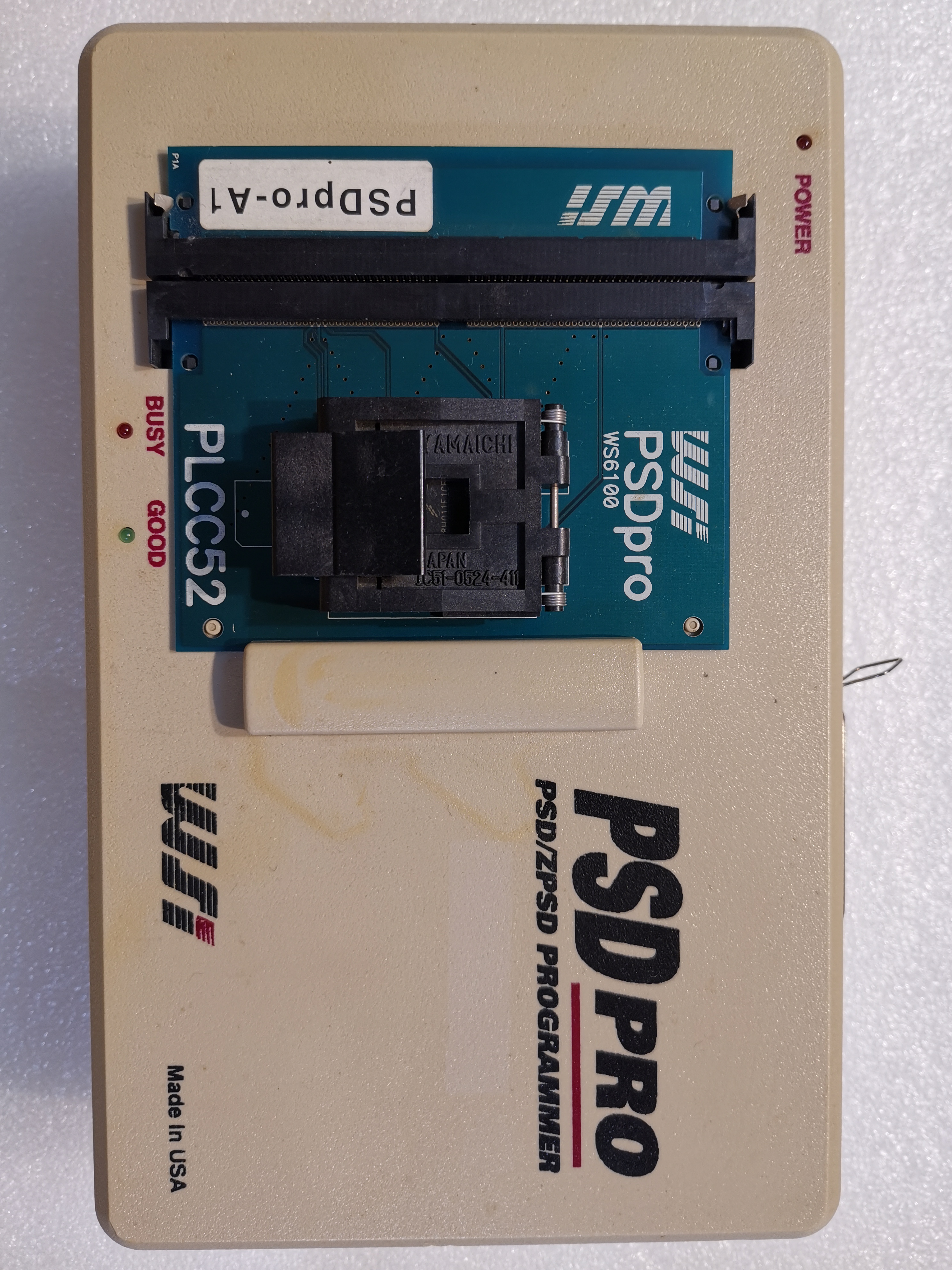

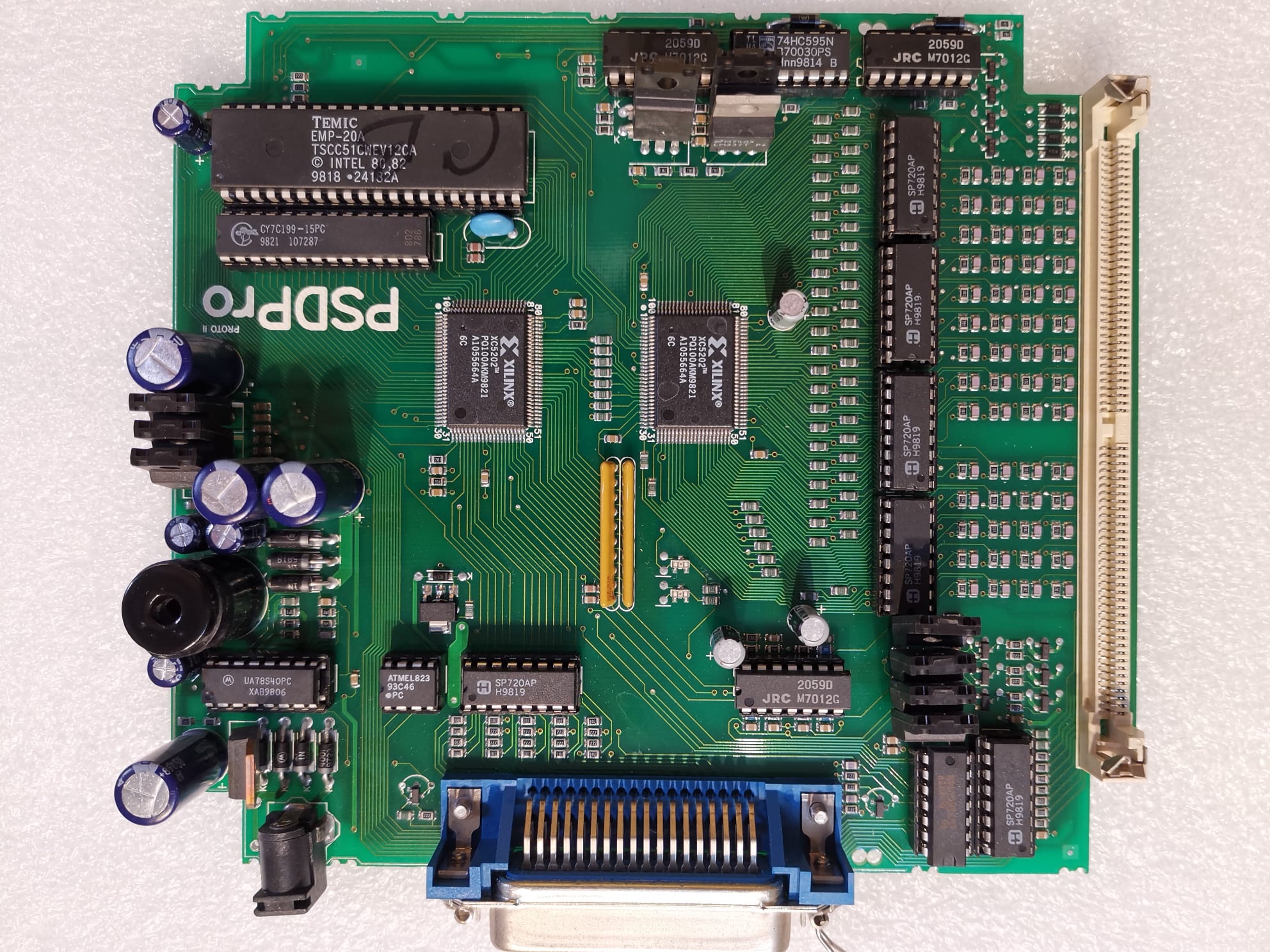

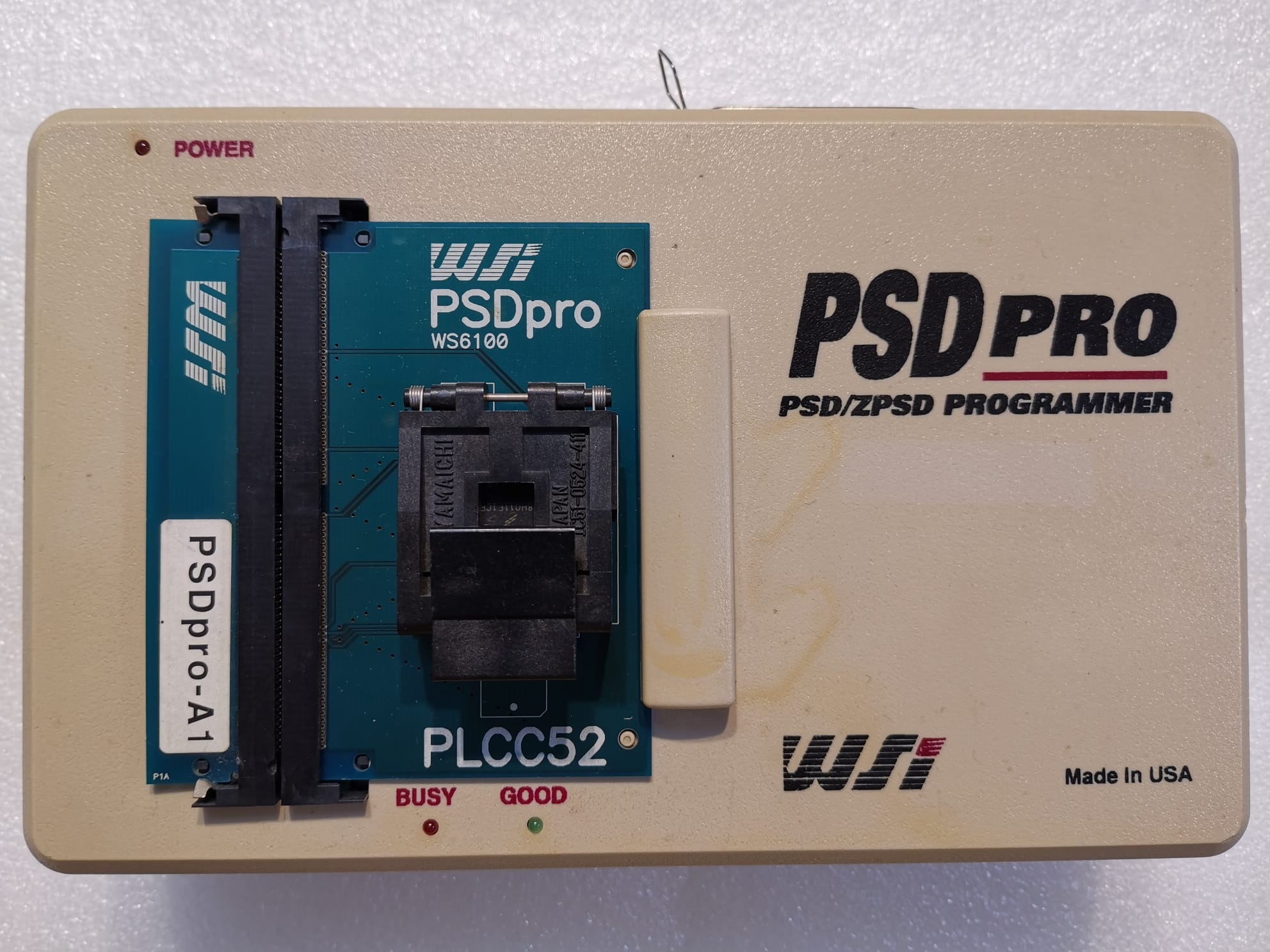

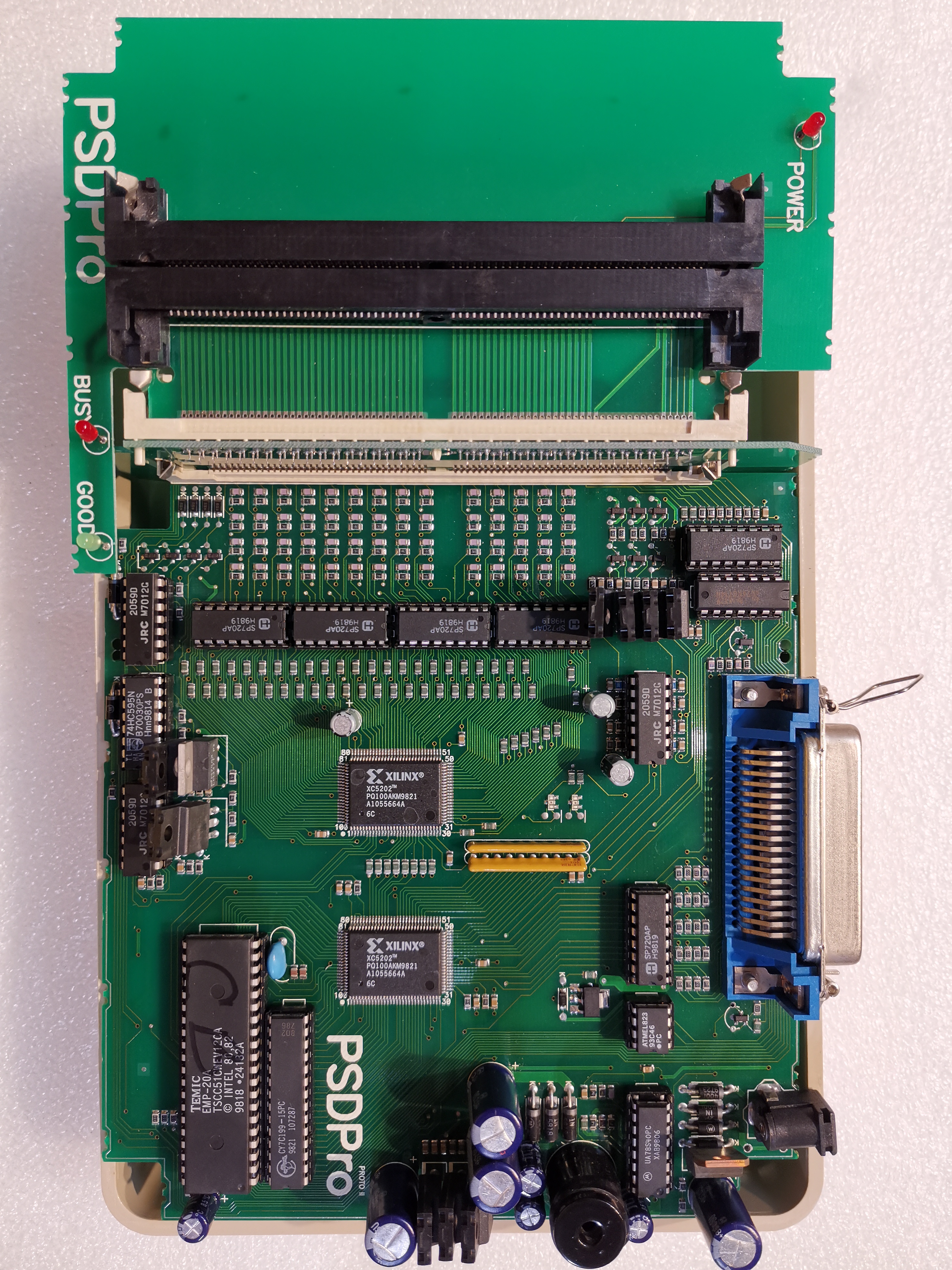

PSDPro PSD/ZPSD programmer
