Stag P301 & Logical Devices Shooter II handheld devices programmer
Programmateur autonome Stag P301 & Logical Devices Shooter II

STAG P301 resources page



http://fr.rs-online.com/web/p/programmateurs/2342075/





SRAM Memory Expansion Card M5M51008 to add memory to the programmer (cf. Chapter 2.7 documentation);

P322 schematic ( PDF- 777Kb) untested

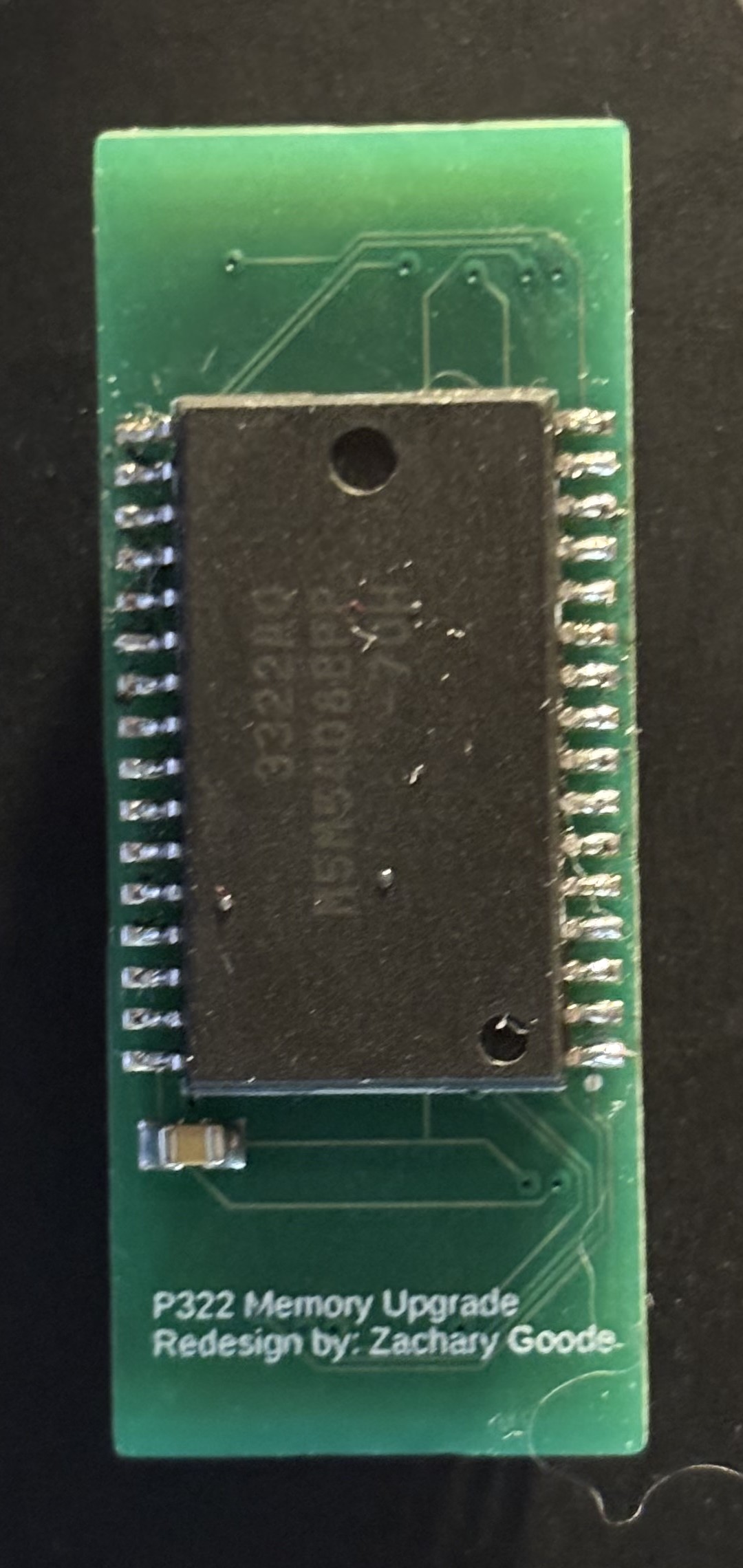

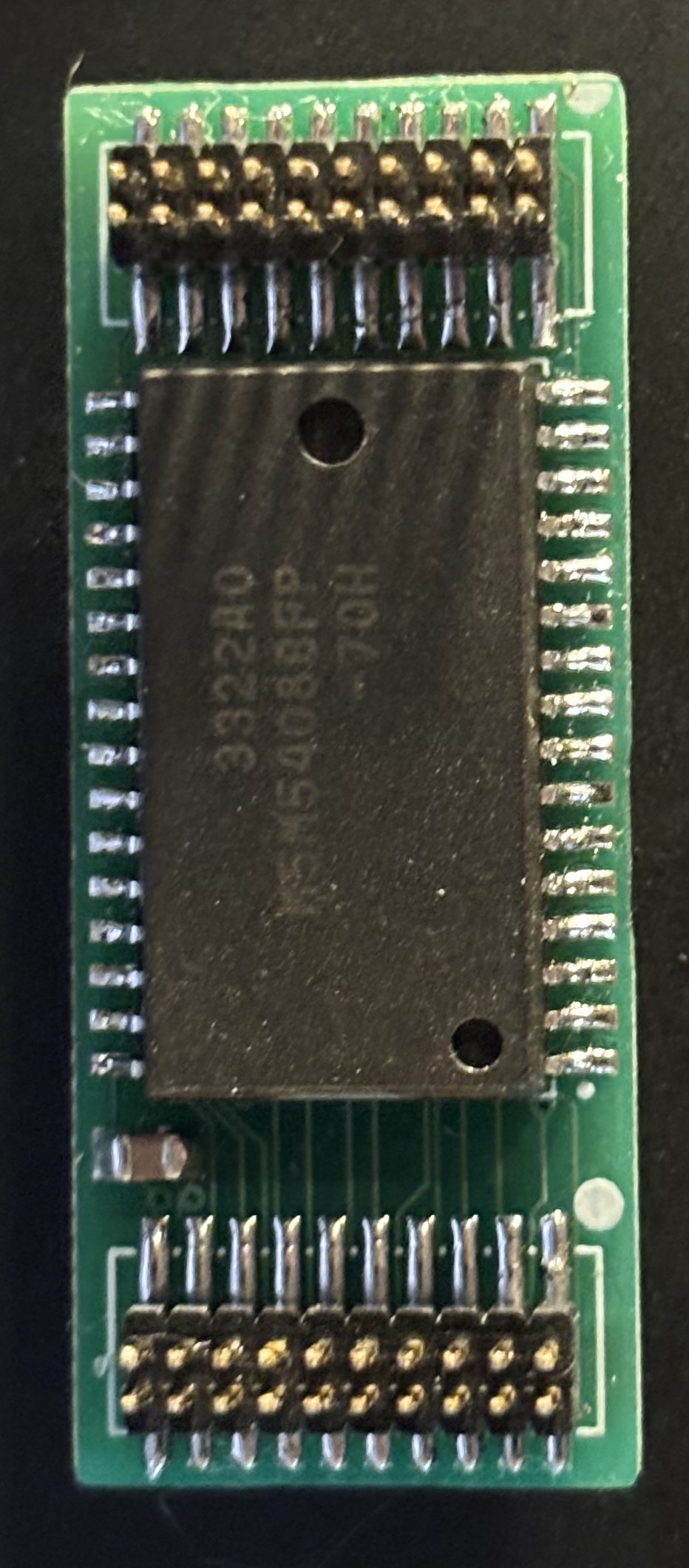

P322 memory upgrade V6 tested OK

Without the board it reads 128kbytes, and with it, it reads 1Mbytes.
The required components are:
2x M5M5408BFP-70H32P2M-A

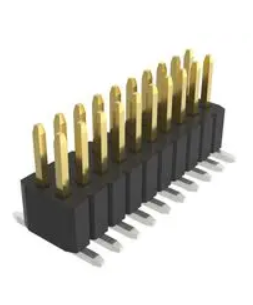

2x 10152265-1201HF
2x 10uF 16+V 0805 capacitor

The connectors should be soldered onto the board as far to the edge of the board, but still on the pads as possible to line up with the connectors on the flash unit.

Gerber files courtesy Zachary Goode (USA)

Partlist exported from Team Hub: Zachary Goode   Project: New Project  Board: P322 Mem Upgrade v6 at 6/17/2024 3:36 PM

Qty Value                 Device                Package              Parts    Description                POPULARITY SPICEPREFIX
2   10152265-1201HF       10152265-1201HF       10152265-1201HF      U$3, U$4
2   10uF                  C-USC0805             C0805                C1, C2   CAPACITOR, American symbol 63         C
2   M5M5408BFP-70H32P2M-A M5M5408BFP-70H32P2M-A SOIC127P1410X275-32N U$1, U$2
PnP_P322 Mem Upgrade v6_back:


C2	9.53	2.54	90.00	10uF	C0805
U$1	21.59	8.06	270.00	M5M5408BFP-70H32P2M-A	SOIC127P1410X275-32N
PnP_P322 Mem Upgrade v6_front:


C1	9.53	13.97	270.00	10uF	C0805
U$2	21.59	8.06	90.00	M5M5408BFP-70H32P2M-A	SOIC127P1410X275-32N
U$3	4.19	8.06	90.00	10152265-1201HF	10152265-1201HF
U$4	35.94	8.06	90.00	10152265-1201HF	10152265-1201HF






<click to enlarge>

<click to enlarge>

Power Supply ratings 12VDC @ 500mA positive to center



Part No GBS706 8.4V 600mAh


in P301 Hand Held Programmer Technical Specification Stag Programmer P301 (PDF-3 pages) you have the partnumber of this card : P321 4Mbit Memory Expansion card; P322 8Mbit Memory Expansion card.

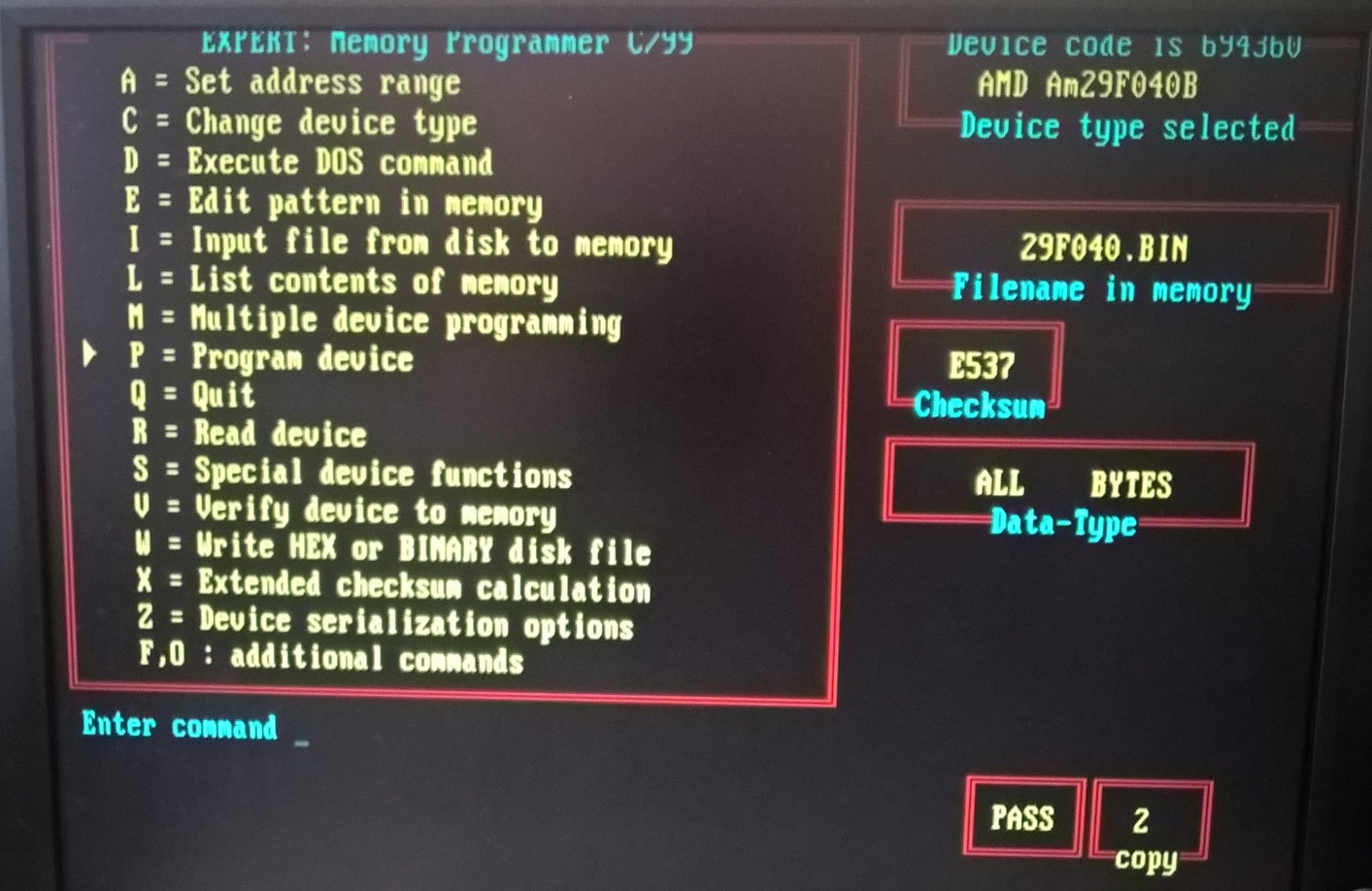

firmware V8.02 29F040 (checksum E537) (BIN file - 512 Kb)



The connector on the P301 is a DB9 male. the cable is a cheap null-modem DB9 F-F cable.

On page 28 of the user's manual it shows the pinout for the 9 pin connector on the P301

and on page 29 it states that hardware handshaking must be
used with StagCom for Windows as described in the "README.1ST" file :-)

Pins 1 & 9 are not used so I would try a 9 pin to 9 pin cable wired as

2 ------------------ 3
3 ------------------ 2
4 ------------------ 6
5 ------------------ 5
6 ------------------ 4
7 ------------------ 8
8 ------------------ 7

p.s. The problem updating the P301 firmware may be because the later StagCom (for DOS and Windows) may not be reliable on newer PC hardware. Although the P301 supports RTS/CTS handshaking, my experience with PP42 etc showed that it was not tested properly with a fast PC. Sending data from a PC to a Stag programmer can be tricky, getting StagView to work reliably took a long time. If someone really must upgrade it they should use a slow baud rate, 9600 or less.


stag P301 Operating Manual ( PDF -114 pages - 4.19Mb)

Stag P301 Devices Support List Version 8.04 (PDF - 9 pages - 37 Kb)

p301.dat Stag P301 Version 8.04 device list (.dat - 10KB)

Stag P301 Tech Spec (PDF - 3 pages 45 Kb)

Stag95 software (ZIP Archive - 918Kb) - The StagCom 95 loads and runs in Windows 7 with no problems

stagDisks.rar (.RAR archive - 5.68Mb) includes stagcom_DOS, stagcom_WIN, stagcom95, stagcom95-v95.58.0, PM95, scomw95 manual, P803 devices updates


The last release firmware was Ver 8.04

Archive (ZIP Archive - 773Kb) contains old releases of StagComDOS and StagComWin

Important notice: I do not recommend to update the flash memory of the stag P301 with the Stagcom Software : it has been reported that Stagcom freeze and then the programmer is no longer working : when the operation has been branched into the display now read "Warning Flash module not loader press a key"

8.04 firmware update for the P301



device list P301.DAT file

DEVLST.txt

FLASH127.SBN (229Kb)

Readme1st.txt

P301.DOC

http://blog.tynemouthsoftware.co.uk/2018/03/stag-p301-eprom-programmer-upgrades.html

stag/p301/
