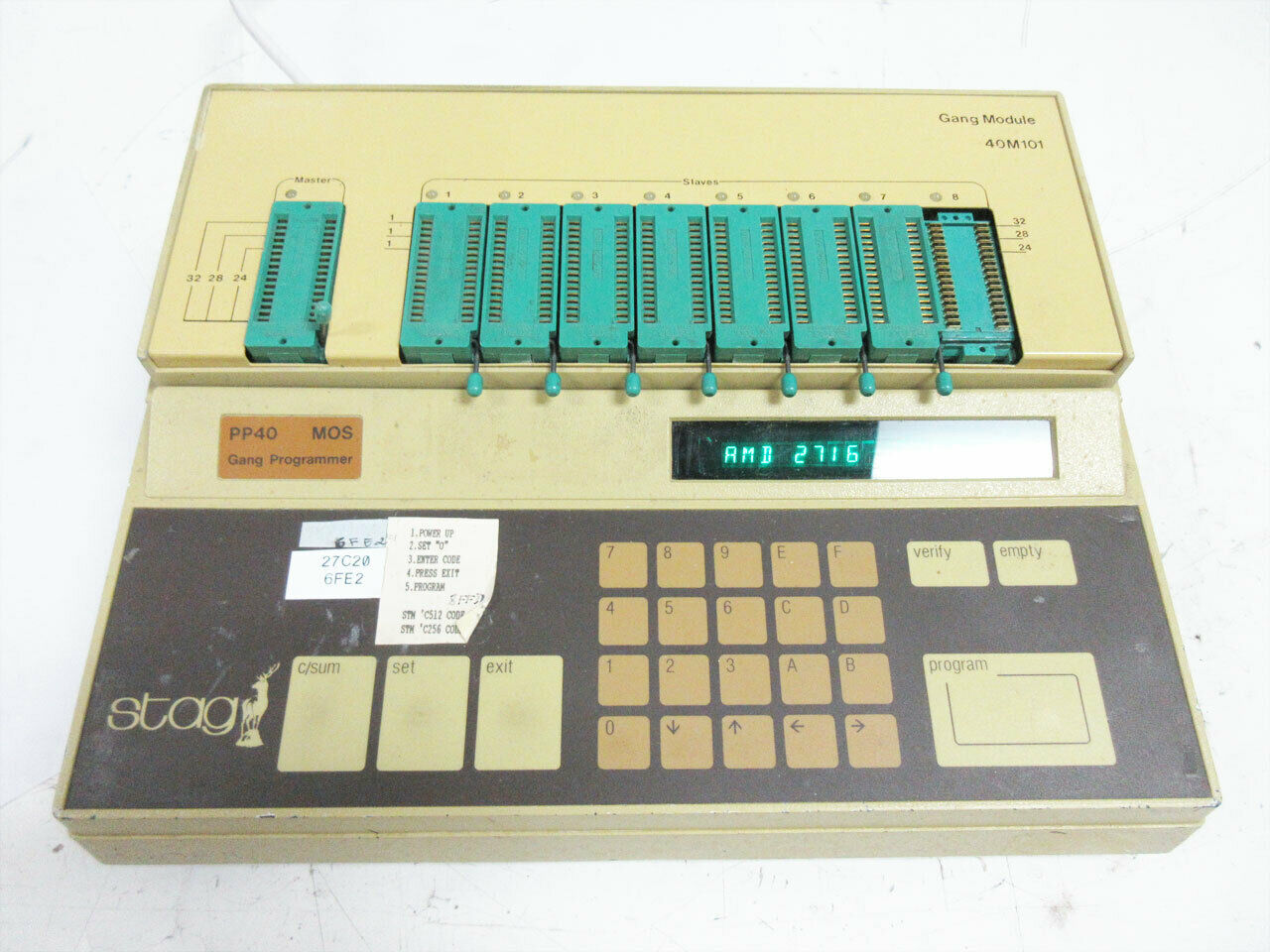

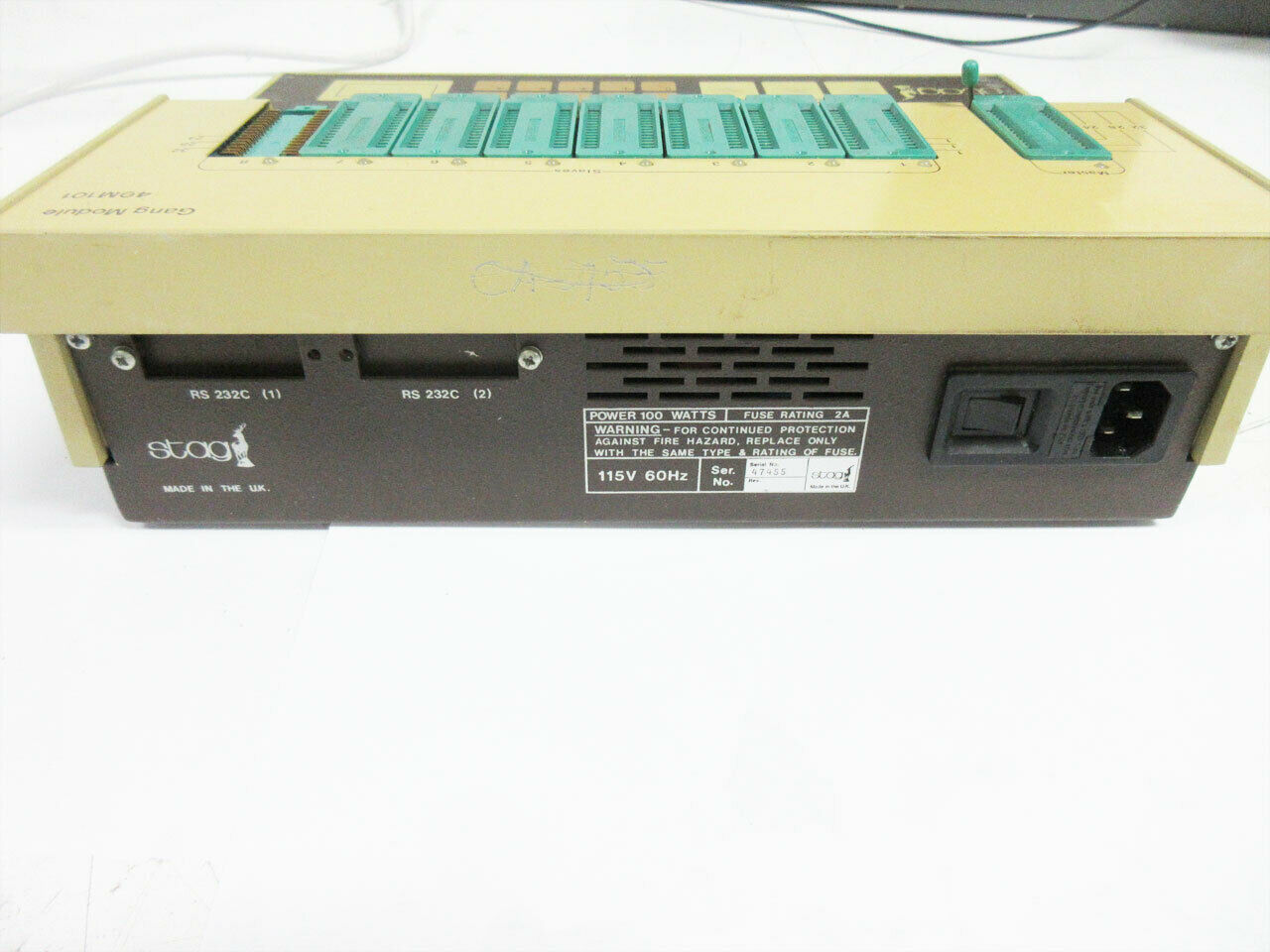

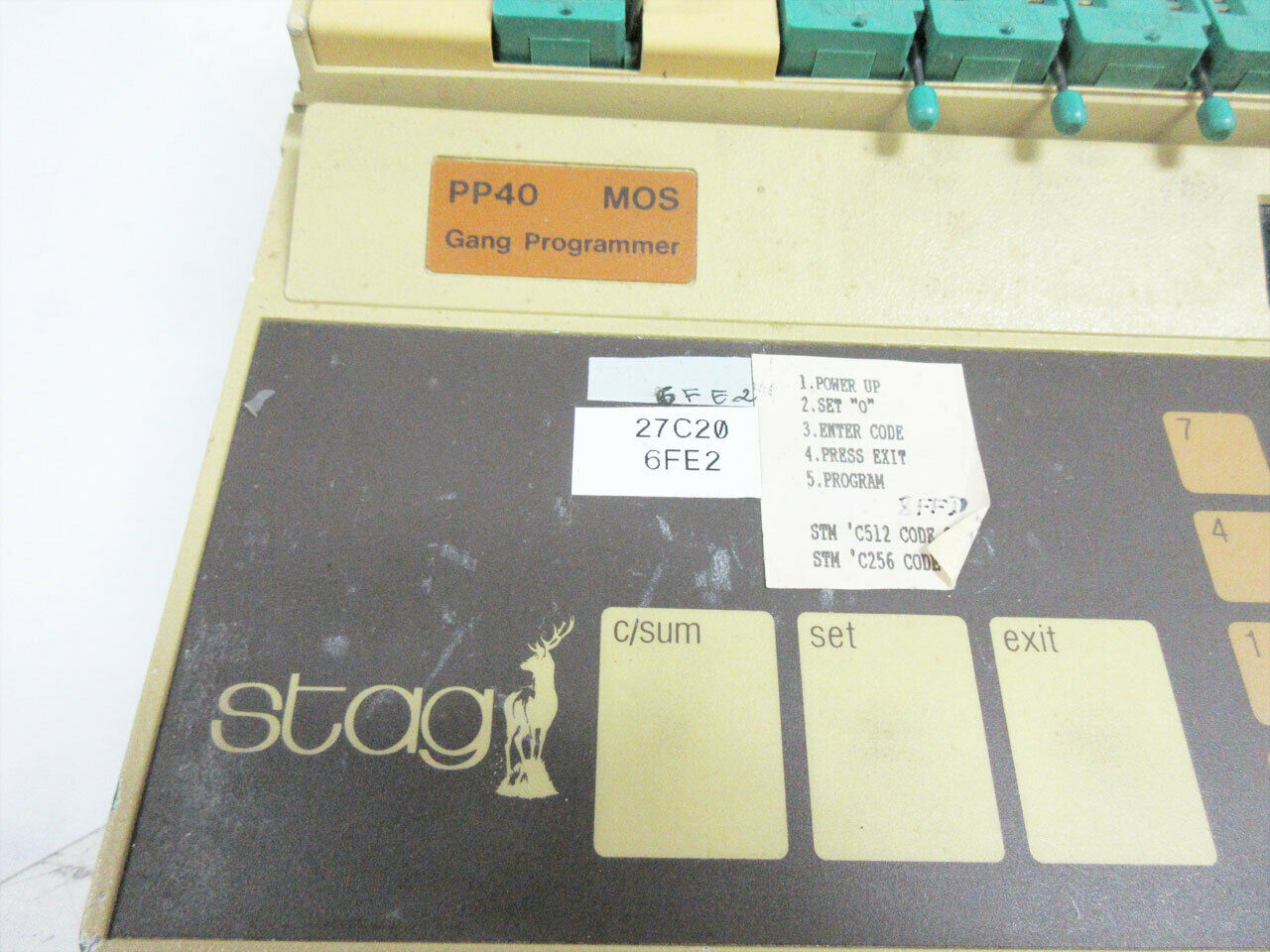

**stag PP40 MOS Gang Programmer with M101A Gang Module**
STAG PP40 MOS GANG EPROM PROGRAMMER
& 40M101 GANG MODULE ~ PP 40
MOS Programmer PP40 Stag
Programmateur MOS EPROM-EEPROM Stag PP40.
pp40 resources page
**stag PP40 MOS Gang Programmer with M101A Gang Module**
STAG PP40 MOS GANG EPROM PROGRAMMER
& 40M101 GANG MODULE ~ PP 40
Stag PP40 PP42User's Manual
Revision 2 (PDF - 82 pages - 10.12Mb)
Stag 40M101 devices
list codes Revision 16 (PDF - 8 pages - 803Kb)
Stag
PP40 PP41 PP42 Manual (PDF - 146 pages - 2.69 MB- Shift Click to download)
Stag
PP40 PP41 PP42 Devices list (PDF -8 pages - 255 Kb - Shift Click to download)
Stag
PP40 Series Manual PP41 Manual (PDF 126 pages - 8.82Mb - Shift Click to
download)
Stag 40M101,41M101,42M101 device
support list (PDF-7 pages - 260Kb)
Base
PP40_02-00.bin ver 2.0 chksum A9C4 (uses 27C64)
PP40_04-01.bin ver 4.1 chksum 396F (uses 27C64)
40M100
40M100_05-00.bin ver 5.0 chksum A560 (uses 27c256)

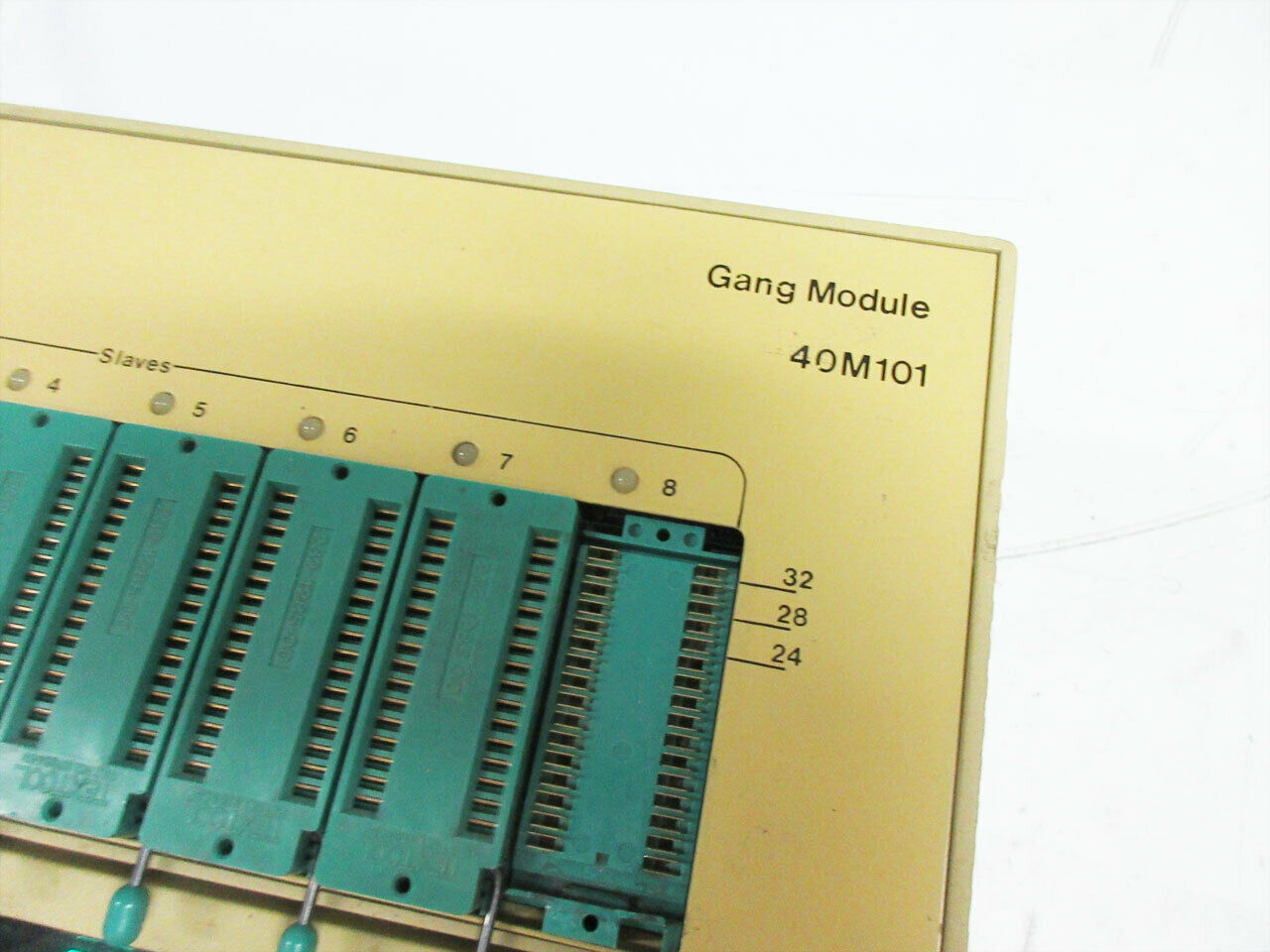

M101A
40M101_07-00.bin
ver 7.0 chksum 2D36 (uses 27c512)
This 40M101 module will not work with the older PP40 base EPROM and the 40M100 module will not work with the newer PP40 base EPROM.
The picture pp40mods.jpg shows how the PP40 and M101A have been modified to prevent PP41/42 modules being attached

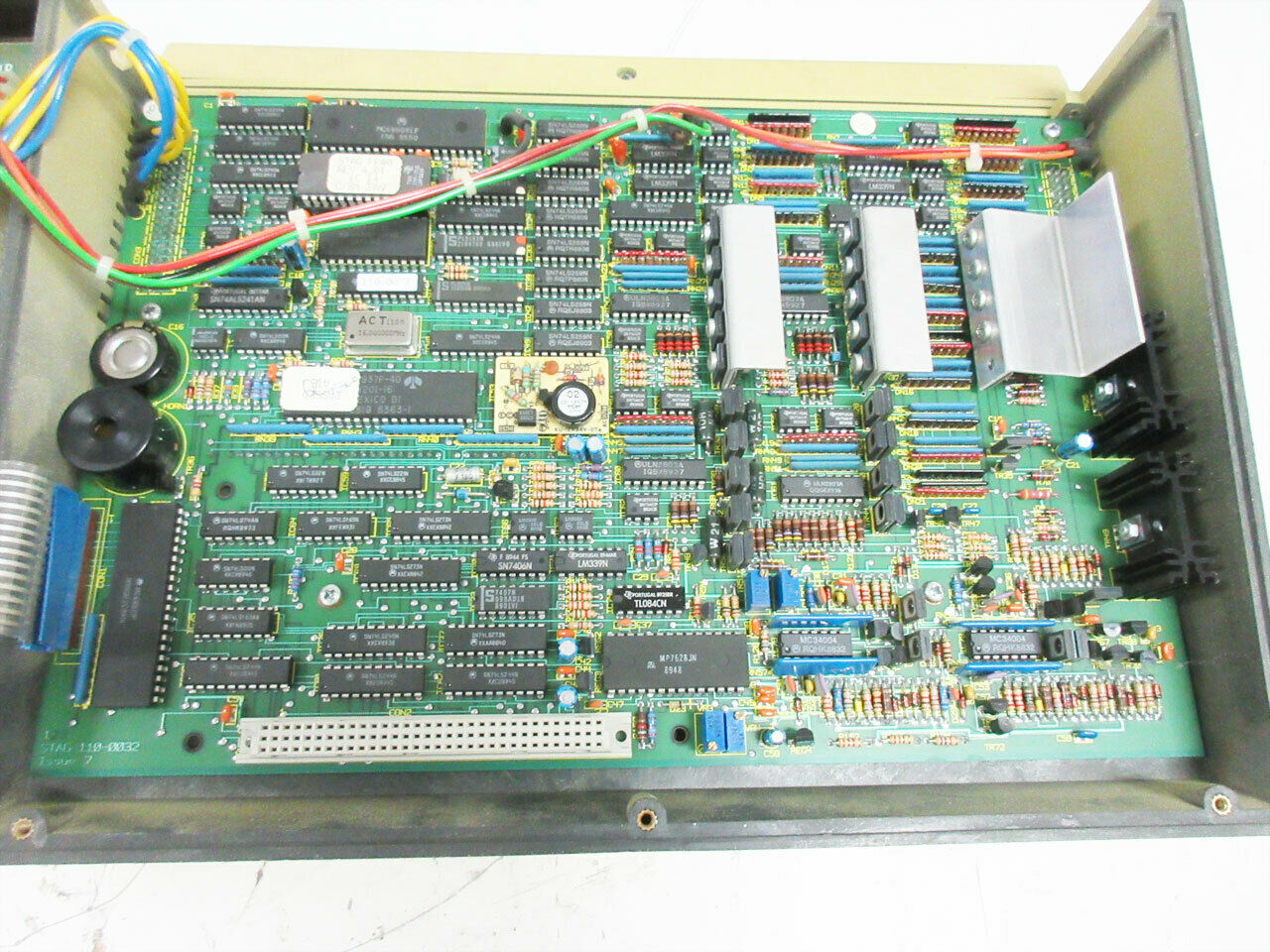

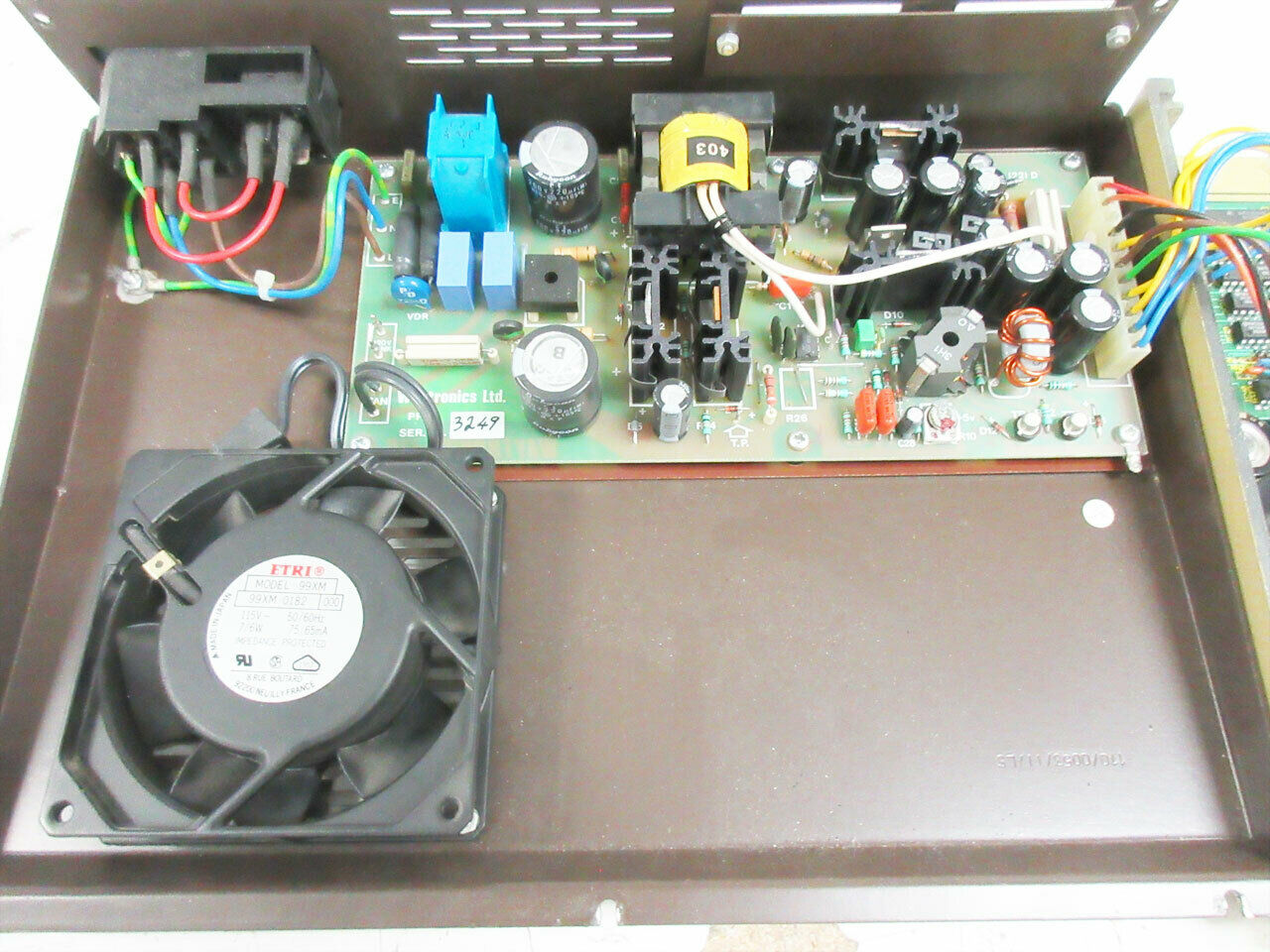

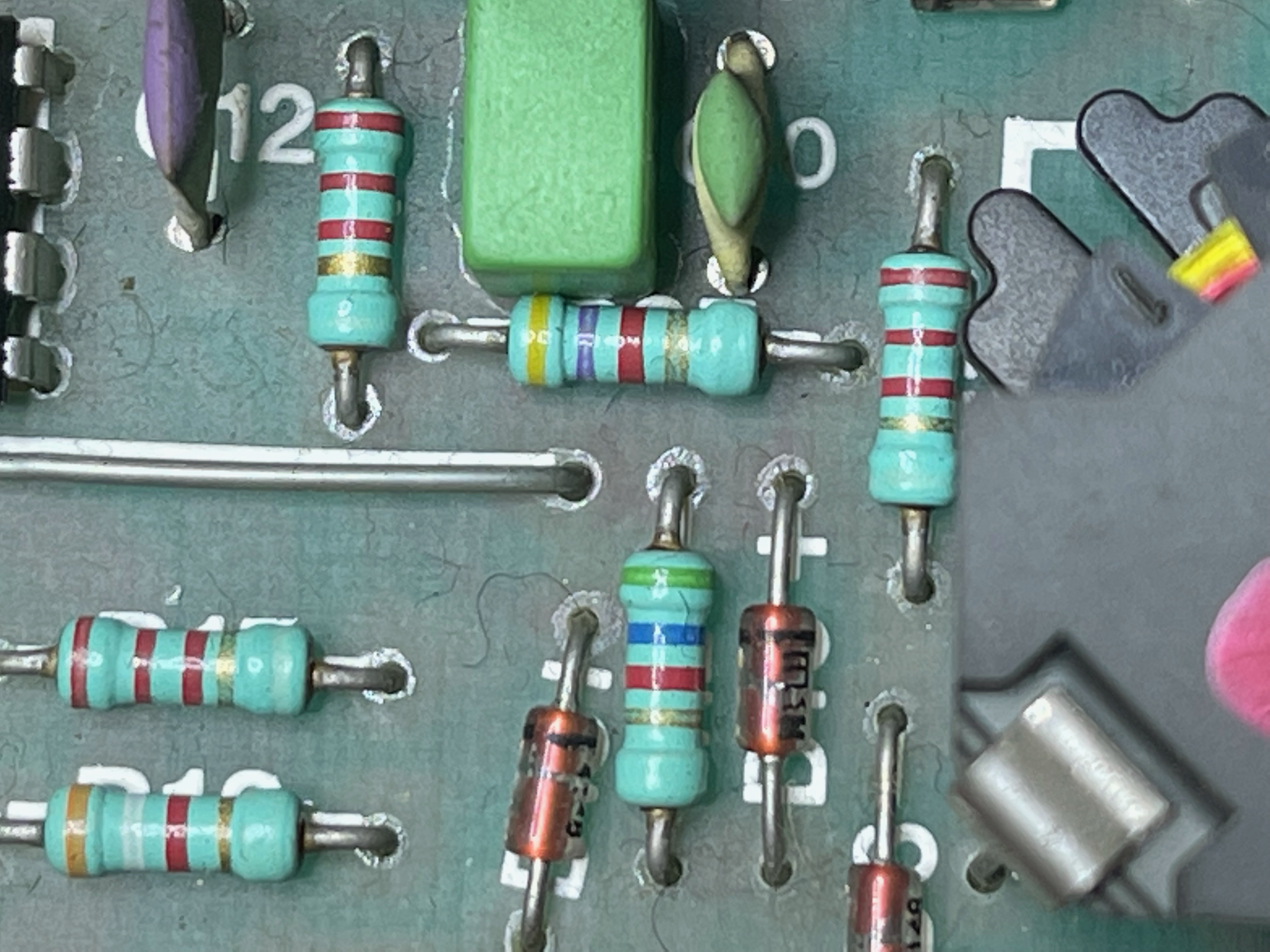

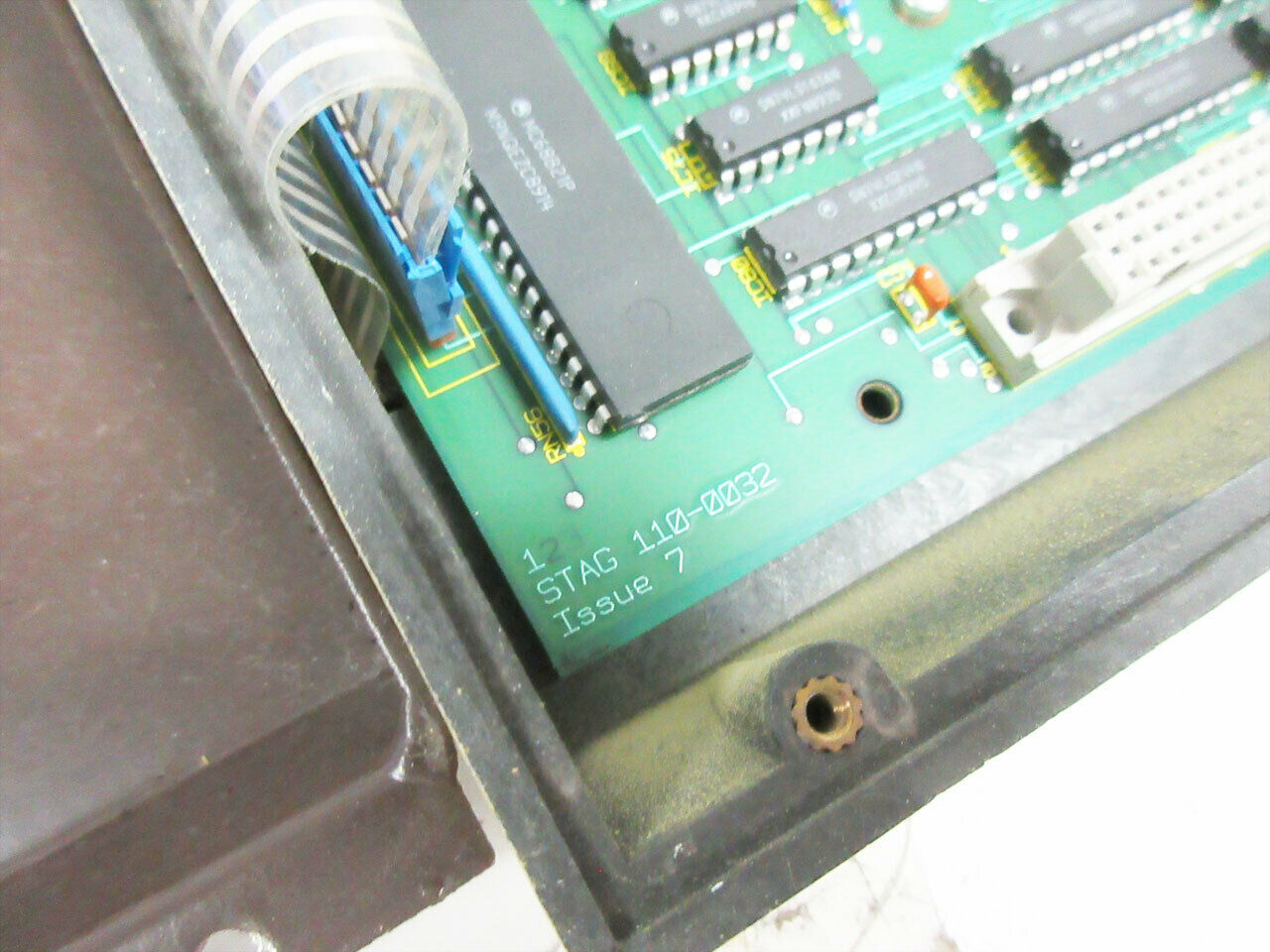

Data sheets of some components found on the PCB :
- MC6809P Motorola mpu

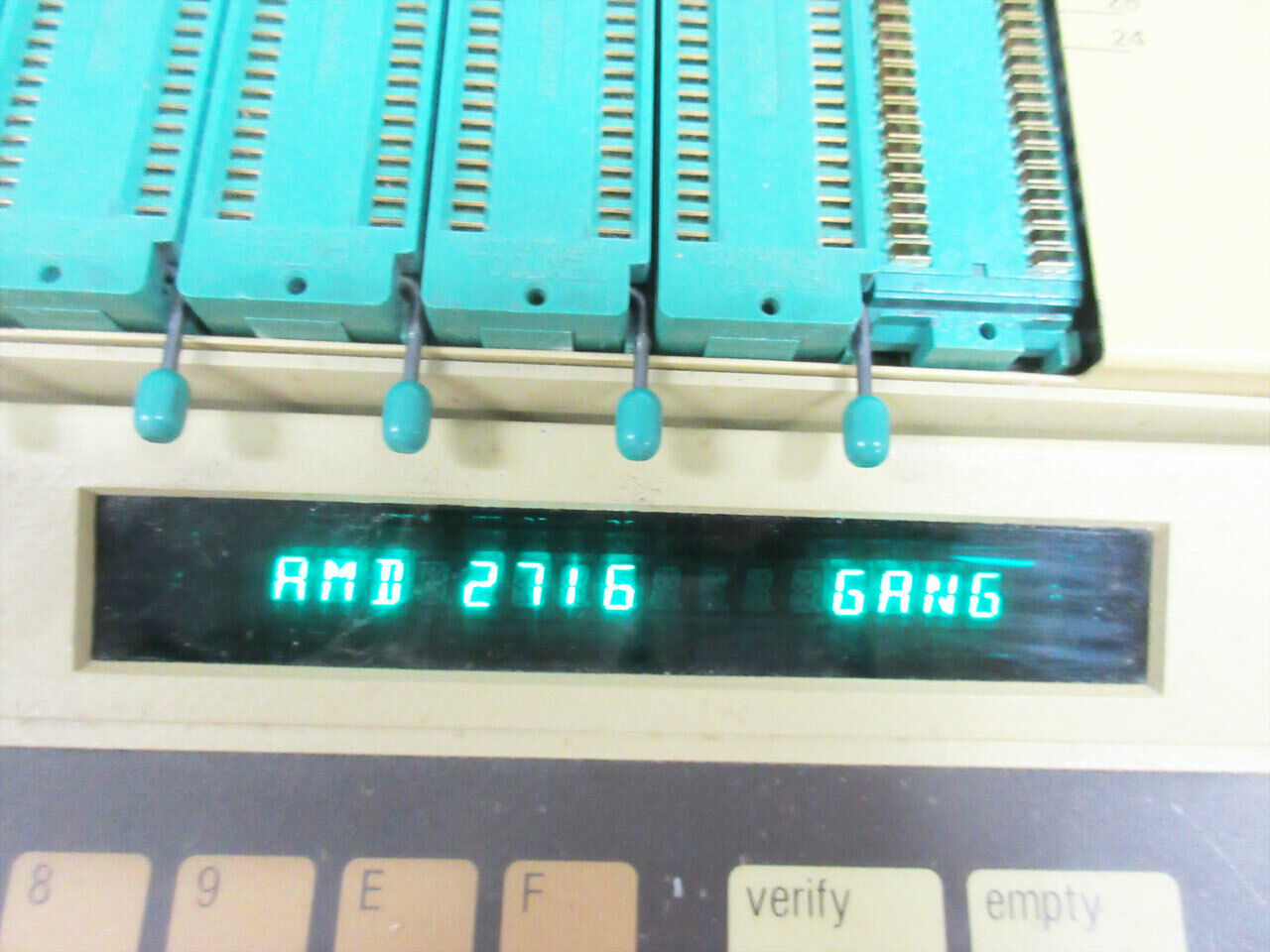

- Rockwell 19837P-40 Rockwell
10937P-40 Alphanumeric Display Controller
- TDK
CD1867N TDK CD-1867N - Converter and Driver for Futaba Fluorescent Display
Panels
- EF68B21P EFCIS
- SCN2661B Signetics
- TC514256AP Toshiba
- PLS153 Signetics
Dust Cover for Stag Eprom Programmer PP39, PP40, PP41 & PP42 | eBay
https://www.ebay.co.uk/itm/164302111568
This is professionally made with high quality fabric and has an elastic sheath. Good dust covers are really hard to find.
https://www.ebay.co.uk/itm/193689230908 Stag PP40 unit from USA for spare parts or repair
If you look forward for other information about this MOS Programmer, do not hesitate to contact me by e-mail at: matthieu.benoit@free.fr . Also if you have any data about this programmer, do not hesitate to contribute to this page.
