Universal PC-based devices programmer ALL-11P3 on ALL-LAB3 base Hilosystems
resources page
Programmateur de composants ALL-11P3 on ALL-LAB3 base de Hilo Systems - Page de Ressources


http://www.wolfgangrobel.de/programmer/hiloall11_1.htm


ALL11P3 USB programmer Users manual (PDF- 55 pages - 6.49Mb)


Software Release
ALL-11 Family ALL-11C / ALL-11C2 / ALL-11P / ALL-11P2 / ALL-11P3 / ALL-11A / ALL-11AE Windows 98/ME/2000/XP (39.23 Mb Shift-Click to Download)

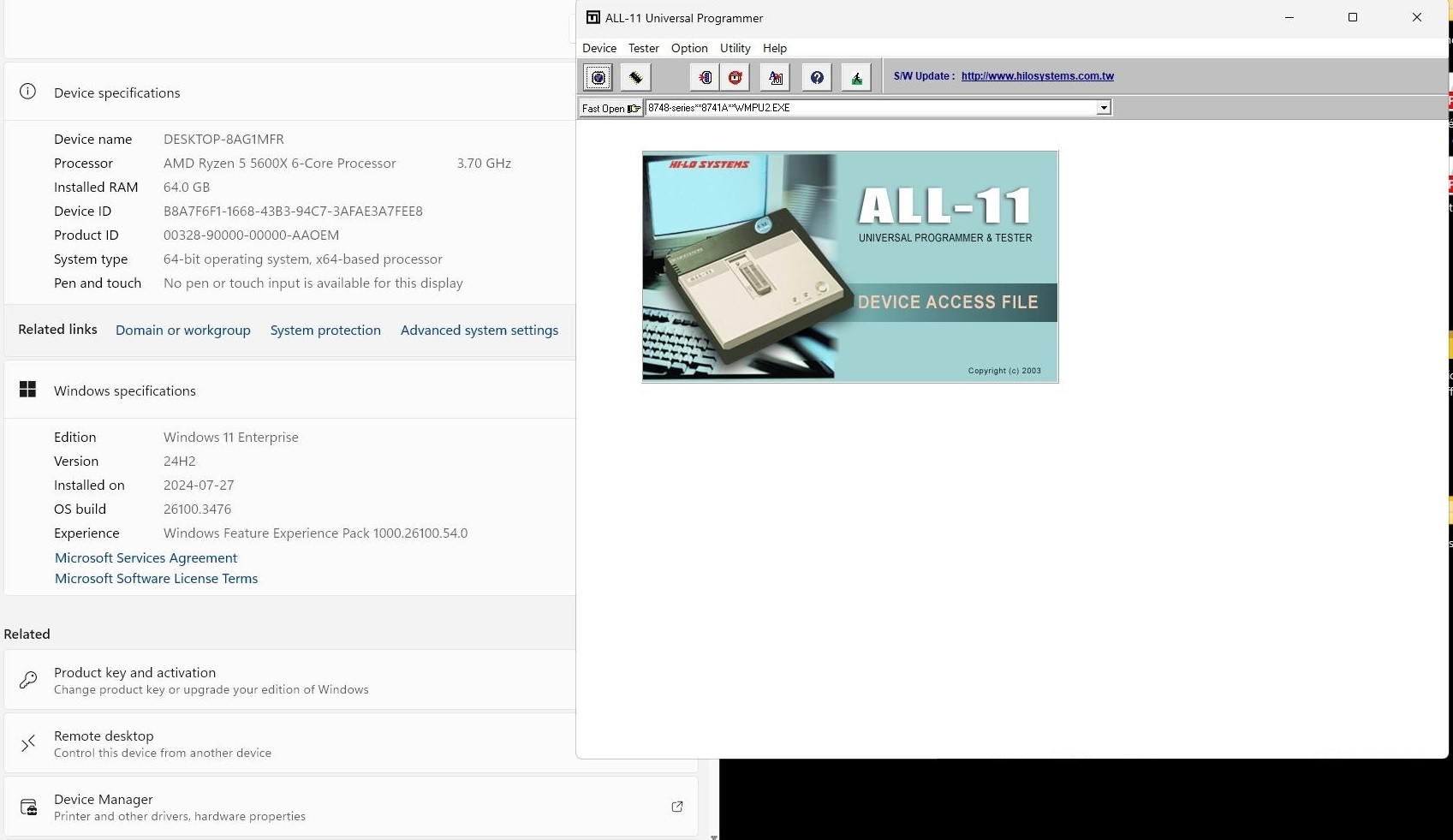

the software will not run or install on newer windows. Not sure when it stop working but I imagine the 64 bit windows that will not support 16bit applications.

You can get it working under Wine in Linux on new 64bit computer, You have to use centos but I think it should work with most any Linux distro. With the Wine setup as windows 95, and the USB /dev/ttyUSB0 serial mapped to com1 in wine. Works great!





P.S.: if you have any adapter for the hilo programmers thank you to send any diagram or photo at matthieu.benoit@free.fr in order to contribute to this page.




ftp://ftp.hilosystems.com.tw/PUB/Download/ documentation and software, for other Hi-Lo programmer

http://www.hilo-europe.com/html/update.htm Hi-Lo Systems Nederland for software updates






Hi-Lo Systems ALL-LAB3 Parallel Interface

ALL-LAB3 SUB-HD15 parallel cable wiring (PDF-1page-78Kb) NB on SUB-HD 15 pin connector, pin 10-11-12 are soldered all the same







http://www.hilo-europe.com/ (Netherlands) Hilo-systems
http://www.hilosystems.it/ Hilosystems in Europe (Italia)
Contact Representatives Listing in Europe
- htttp://www.hilosystems.com.tw/asp/listadp.asp?TYPE=01&NAME=02 Currently Available Adapters from hilo for differents packages.

this cd-rom is dated 02-06-2003

courtesy of Roberto from italy here you find the description of a very usefull adapter in order to programm plcc32 rect eprom and plcc 20, plcc28 Gals
According to the type of component -Pal, Rom- and the size of memories, there are pins in less and in different positions, or in a perfect correspondence.
In the table there are the pinout of the families of components; I used the adapter with Intel and Winbond Flash from 256k to 2mb and with GAL 22v10 of the various manufacturers, always with components that were products in dip and also in plcc. If there are doubts about pinout of other components see the respective datasheet.
Attached a picture of the adapter and a pinout table.


   32 PIN DIP TO -->

DIP	PLCC GAL		PLCC FLASH 	PLCC FLASH
			 to 512KB		 to 2MB
32 pin	24 pin		   28 pin		 32 pin
-----------------------------------------------------------
 1	nc		nc		1
2	nc		nc		2
3	nc		2		3
4	nc		3		4
5	2		4		5
6	3		5		6
7	4		6		7
8	5		7		8
9	6		8		9
10	7		9		10
11	9		10		11
12	10		11		12
13	11		13		13
14	12		14		14
15	13		15		15
16	14		16		16
17	16		18		17
18	17		19		18
19	18		20		19
20	19		21		20
21	20		22		21
22	21		23		22
23	23		24		23
24	24		25		24
25	25		27		25
26	26		28		26
27	27		29		27
28	28		30		28
29	nc		31		29
30	nc		32		30
31	nc		nc		31
32	nc		nc		32

PIN 1,8,15,22 of gal = nc
PIN 1,12,17,26 of 512Kb = nc


AL3-PLCC-EP Adapter





ADP-EPM7032 adapter diagram & software:

a70x.exe to program ALTERA EPM7128LC84 with adapter ADP-EPM7128-PL, EP7064LC68 with adapter ADP-EP7064-PL68, EP7064LC84 with adapter ADP-EPM7064-PL84, EPM7096LC68 with adapter ADP-EPM7096-PL68, EPM7096LC84 with adapter ADP-EPM7096-PL84, EPM7128QC100 with adapter ADP-EPM7128-Q, EPM7096QC100 with adapter ADP-EPM7096-QA, EPM7064QC100 with adapter ADP-EPM7064-Q/QA, EPM7064LC44, EPM7044TC44 with adapter ADP-EPM7064-PL44/TQ (Release V3.16)
for ALTERA MAX7000 EPM7032 family on ALL03 / ALL03A/ PROMA3/ EXPRO programmers.

pinouts See this brochure

Corrected:


ADP-7064S-PL84

ADP-68HC711E - ADP-68HC711D

shrinkdip-64 hitachi (Renesas) CMOS Microcontroller adapter


ADP-AEP42

Adapter ADP-AEP42 to program 256Kbit 12.5 Volts Toshiba Flash Memory P/N TC578200D, TC16200D, N3001-008, N3001-016 with the ALL03.

Please check the diagram and the software for this adapter.


ADP-PIC12C5X/-S



I have built my adapter by wiring 2 DIL8 socket in this way:
name A the socket you'll insert into the ALL07 DIL40 zif socket,
name B the socket you'll put the pic12c50x into

You have to wire:
A pin1 -> B pin4
A pin2 NC
A pin3 NC
A pin4 -> B pin8
A pin5 NC
A pin6 -> B pin6 (coincident)
A pin7 -> B pin7 (coincident)
A pin8 -> B pin1

If the wiring is correct, when you insert the A socket into the zif you
can verify that:
ZIF pin17 -> PIC pin4 ZIF pin24 -> PIC pin1
ZIF pin18 NC ZIF pin23 -> PIC pin7
ZIF pin19 NC ZIF pin22 -> PIC pin6
ZIF pin20 -> PIC pin8 ZIF pin21 NC



other explanation of the wiring :

Broches
PAC40 ---Support DIP8
17 --------4 MCLR/Pgm
18 --------NC
19 --------NC
20 --------8 Gnd/masse


21 --------NC
22 --------6 Data IO
23 --------7 Clock
24 --------1 Vcc +5V


Adapter for programming AMD MACH130 with an Hilo ALL11C2 Programmer



Programming Adapter ADP-MACH1 AMD MACH130/230/435 (84 PINs PLCC) diagram for programmer HILO ALL11C2

HILO ADP-MACH for PLCC-44 Mach Devices




See the diagram here





PCB for ADP-29f800PS adapter for HILO programmers
Download here
top.eps and bottom.eps - Available in PDF format : adp29F800.pdf


TOP view

BOTTOM view

ADP-29F800-PS

44-pin PSOP socket. Supports AMD 29F100T/B/200T/B, 29F400T/B/800T/B,29LV400T/B/800T/B. 44-pin SOP(PITCH 1.27mm,13.6mm) socket. - Supports also ALLIANCE,AMD,FUJITSU,HYNIX,MXIC,SPANSION,STM 29F100/200/400/800,29LV200/400/800,29DL400/800; AMIC 29400/800; SAMSUNG 28U800; TOSHIBA 58F400/401/FVB800.(44-pin PSOP)

ALL03 supports : Am29F100T/AT , Am29F100B/AB, Am29F200T/AT, Am29F200B/AB, Am29F400T/AT, Am29F400B/AB, Am29F080, Am29F016-E/F, Am29F016-S, Am29LV400T, Am29LV400B, Am29F800T, Am29F800B, Am29LV800T, Am29LV004T, Am29LV004B, Am29LV008T, Am29LV002T, AM29LV002B, Am29LV200T, Am29LV200B

a28f.exe

Adapter ADP-RM1A to test SIMM30 / SIP32 ram-modules from 256Kb to 8Mb

to use with this software (20 Kb)

Pin Name Description
1 VCC +5V
2 /CAS Column Address Strobe
3 DQ0 Data 0
4 A0 Address 0
5 A1 Address 1
6 DQ1 Data 1
7 A2 Address 2
8 A3 Address 3
9 GND Ground
10 DQ2 Data 2
11 A4 Address 4
12 A5 Address 5
13 DQ3 Data 3
14 A6 Address 6
15 A7 Address 7
16 DQ4 Data 4
17 A8 Address 8
18 A9 Address 9
19 A10 Address 10
20 DQ5 Data 5
21 /WE Write Enable
22 GND Ground
23 DQ6 Data 6
24 A11 Address 11
25 DQ7 Data 7
26 QP Data Parity Out
27 /RAS Row Address Strobe
28 /CASP The line is the /CAS line for the parity RAM on the card. The parity generator circuitry of the motherboards needed a longer time to generate a parity bit, so the CAS for the extra DRAM had be controlled seperately, hence, the extra /CAS line. (Source: Tom Walsh).
29 DP Data Parity In
30 VCC +5V
Note: SIMM above is a 4MBx9.
QP & DP is N/C on SIMMs without parity.
A9 is N/C on 256kB.
A10 is N/C on 256kB & 1MB. A11 is N/C on 256kB, 1MB & 4MB.

SIMM 30 PINS DATA SHEET



ADP-68705P


suited to be fixed on Teko case 160 x 83 x 21 mm

[   ] A68705p3 Implantatio..> 03-Aug-2011 21:15    10k  PCB component adapter to program MC68705P3 / MC68705R3/U3
[   ] A68705p3 cuivre dess..> 03-Aug-2011 21:15    15k  PCB solder side
[   ] A68705p3 cuivre dess..> 03-Aug-2011 21:15    19k  PCB component side
[   ] A68705p3 schema.pdf     03-Aug-2011 21:16    94k  Diagram of Adapter to program MC68705P3/U3/R3

Gerber files archive for ADP-68705P3 Adapter

to be used with the folowing adapter file a68705.exe to program MOTOROLA MC68705R3, MC68705U3, MC68705R5, MC68705U5 with adapter ADP-68705, MC68705P3, MC68705P5 with adapter ADP-68705/P3


[   ] A68HC705 Implantatio..> 03-Aug-2011 21:16 7k PCB component adapter to program MC68HC705C8 [   ] A68HC705 cuivre dess..> 03-Aug-2011 21:16 12k PCB solder side [   ] A68HC705 cuivre dess..> 03-Aug-2011 21:16 14k PCB component side [   ] A68HC705 schema.pdf 03-Aug-2011 21:16 68k diagram of adapter to program MC68HC705C8 Gerber files archive for ADP-68HC705 Adapter
to program MOTOROLA MC68HC705C8, MC68HC705C8A, MC68HC705C9, MC68HC705D9, MC68HC705C9, MC68HC705C9A, MC68HC705C12A
ADP-PIC16
[   ] APic16c Implantation..> 03-Aug-2011 21:16     6k Adapter component to program 28-pin PIC16C5X and 18-pin PIC16
[   ] APic16c cuivre.pdf      03-Aug-2011 21:16     9k Adapter solder side PIC16
[   ] Apic16c schema.pdf      03-Aug-2011 21:16    47k Diagram adapter PIC16



Gerber files archive for ADP-PIC16 Adapter

#######################################################################



ADP-7064AE

for Altera EPM3032ALC44/TC44, EPM3064ALC44/TC44 and EPM7064AELC44/TC44
This is only for ALL07 (executable is A7064.exe) as ALL03 does NOT know any MAX7000AE nor MAX3000A.
This Adapter is necessary to program CPLDs with locked JTAG pins, so not a simple ISP Adapter.
Schematic contains pinout for all available packages.



#######################################################################



ADP-ATF1500


for Atmel ATF1500/L and ATF1500A/ABV/AL CPLDs. These CPLDs do not know any ISP,

Schematic contains pinout for all available packages.



#######################################################################

ADP-ATF1504

for Atmel ATF1502AS/ASL and ATF1504AS/ASL CPLDs. This Adapter is necessary to program CPLDs
with locked JTAG pins, so not a simple ISP Adapter. This is only for ALL07 (executable is A1500.exe)
as ALL03 do NOT know any ATF1502/ATF1504 CPLDs.
Schematic contains pinout for PLCC44 and TQFP44 packages.



#######################################################################

ADP-ATF1508

for Atmel ATF1504AS/ASL and ATF1508AS/ASL CPLDs . This Adapter is necessary to program CPLDs
with locked JTAG pins, so not a simple ISP Adapter. ALL03/ALL07 executable(s) is A1500.exe, however
ALL03 does NOT support all package types.

Schematic contains pinout for PLCC84, TQFP100, PQFP100 and PQFP160 packages.


#######################################################################

ADP-PZ5000

for Philips CoolRunner CPLDs Philips PZ3032-/CS/NS, PZ3064, PZ5032-/CS/NS, PZ5064-/CS/NS
and Xilinx XCR3032, XCR3064, XCR5032, XCR5064, XCR3032A, XCR3032C, XCR5032C, XCR3064A, XCR5064C

ALL03 (executable is Apz5032.exe) does NOT know Philips CS/NS nor Xilinx A/C types.
ALL07 knows all of them (executable is Apz5032.exe), however to program Xilinx one have to select the
matching Philips type (the DIE is the same).

This Adapter is necessary to program CPLDs with locked ISP/JTAG pins, so not a simple ISP Adapter.
Schematic contains pinout for PLCC44 and TQFP44 packages.



#######################################################################

ADP-PZ5064

for Philips PZ3064-/CS/NS, PZ5064-/CS/NS, PZ3128-/CS/NS, PZ5128-/CS/NS
and Xilinx XCR3064, XCR5064, XCR3064A, XCR5064C, XCR5128, XCR3128, XCR5128C, XCR3128A

ALL03 (executable is Apz5032.exe) does NOT know Philips CS/NS nor Xilinx A/C types.
ALL07 knows all of them (executable is Apz5032.exe), however to program Xilinx one have to select the
matching Philips type (the DIE is the same).

This Adapter is necessary to program CPLDs with locked ISP/JTAG pins, so not a simple ISP Adapter.
Schematic contains pinout for PLCC68 and PLCC84 packages.



#######################################################################

ADP-PZ5128


for Philips PZ3064-/CS/NS, PZ5064-/CS/NS, PZ3128-/CS/NS, PZ5128-/CS/NS
and Xilinx XCR3064, XCR5064, XCR3064A, XCR5064C, XCR5128, XCR3128, XCR5128C, XCR3128A

ALL07 knows all of them (executable is Apz5032.exe), however to program Xilinx one have to select the
matching Philips type (the DIE is the same).
Adapter is NOT supported by ALL03 at all, however one might use pinout from this Adapters e.g. PQ100
CPLDs and wire it to PLCC84 Adapter (to ADP-PZ5064).

This Adapter is necessary to program CPLDs with locked ISP/JTAG pins, so not a simple ISP Adapter.
Schematic contains pinout for PQ100, VQ100, TQ100, TQ128 and PQ160 packages.
Note: due bonding differences Adapter for PQ100 need a jumper to select type, where others not.


#######################################################################

ADP-PLS100

For Philips / Signetics PLDs PLS100, PLS101, 82S100, 82S101
For ALL03 the executable is apls100.exe, for ALL07 it is apls100.exe

Original ADP-PLS100 have ZIF32 socket populated, however i have changed my schematic
to ZIF28 as the IC itself is anyway in DIP28.

#######################################################################

ADP-ISP22V10

For Lattice ispGAL22V10, executable for ALL03 is agds.exe and for ALL07 is agds.exe
This Adapter is necessary to program ispGAL22V10 in ISP mode, which is unique
for Lattice ispGALs only, however this IC can be programmed as well in GAL mode
(simply use any 22V10 GAL mode/programmer).

Schematic contains pinout for PLCC28 and SSOP28 packages.



#######################################################################

ADP-ISPGDS18

For Lattice ispGDS18, executable for ALL03 is agds.exe and for ALL07 is agds.exe
This Adapter is necessary only for ispGDS18, other ispGDS types (ispGDS14 and ispGDS22)
can be programmed without any special adapter (no idea why it is like that).

Schematic contains pinout for DIP24

ADP-68HC705B5-PL

ADP-49F800-TSV2

ADP-49F800-TSV2 schematics (PDF- 1 page - 13Kb)

supports ST M29KW016E , M29KW064E & Macronix MX29L8100

ADP-PLSI-PL68

Useful Links:

http://www.textool.cn/ production sockets (YAMAICHI, ENPLAS, Wells-cti, sockets SOP) from Shenzhen,China

http://labdasar.ee.itb.ac.id/installer/all11/all-07/

http://mpu51.tripod.com/eprom/eprom.html Adapter (PCB) DIP32 to PLCC32,SOL8 (SMT socket) ; Adapter (PCB) DIP32 to PLCC32, SOL8 ( Thruhole socket) ; Willem EPROM Programmer EPROM,EEPROM,FLASH Burnner (Vpp 12.5V,21V,25V) and adapters Resource.
http://f5jtz.free.fr/pjacquet/technik.htm converters diagrams (DIL8 to PLCC32, DIL40 to PLCC44, DIL32 to TSOP32, for PIC16C64/74 in PLCC44, for PIC16C54 in SSOP20, for PAL16V8 in PLCC20, 1Mbit Adapter for 2764/27512 programmers, and various programmers diagrams.)

http://www.danbbs.dk/~rmadrm/sunshine.htm Software updates for SunShine programmers :PEP-01, PEP-04, EW-701x, EW-704x and EW-708x, HEP-801, HEP-804 and HEP-808 ,Expro-60/80, BW-601, ICT-301 IC-Tester, ICT-302 IC-Tester, PAW-401, UPW-481X and UPW-484X, EXPRO-40, EML-2M, JET-08. See Also http://people.zeelandnet.nl/wgeeraert/eprom.htm

http://www.euro-arcade.de/links.htm

Refer to Memory & Pld pages to see other links about other eprom Programmers and programmable devices.
Also Stag pp39 MOS programmer resource page ; other resources available here.
http://www.logicalsys.com Logical Systems,Adapter,Adapters,Programming Adapters, Socket Adapters,Prototype Adapters,Emulation Technology, Adapters.com, Adaptors, Ironwood Electronics, PLCC, QFP, DIP, TQFP, PQFP, SOIC, TSSOP, SSOP,Yamaichi, Enplas, EPROM, EPROM Programmer, Emulator

http://www.cimarrontechnology.com Prototyping adapters for common SMT components: BrownDog Component Adapters

http://etronics.free.fr/dossiers/num/num32.htm Réalisation d'un effaceur d'Eprom
