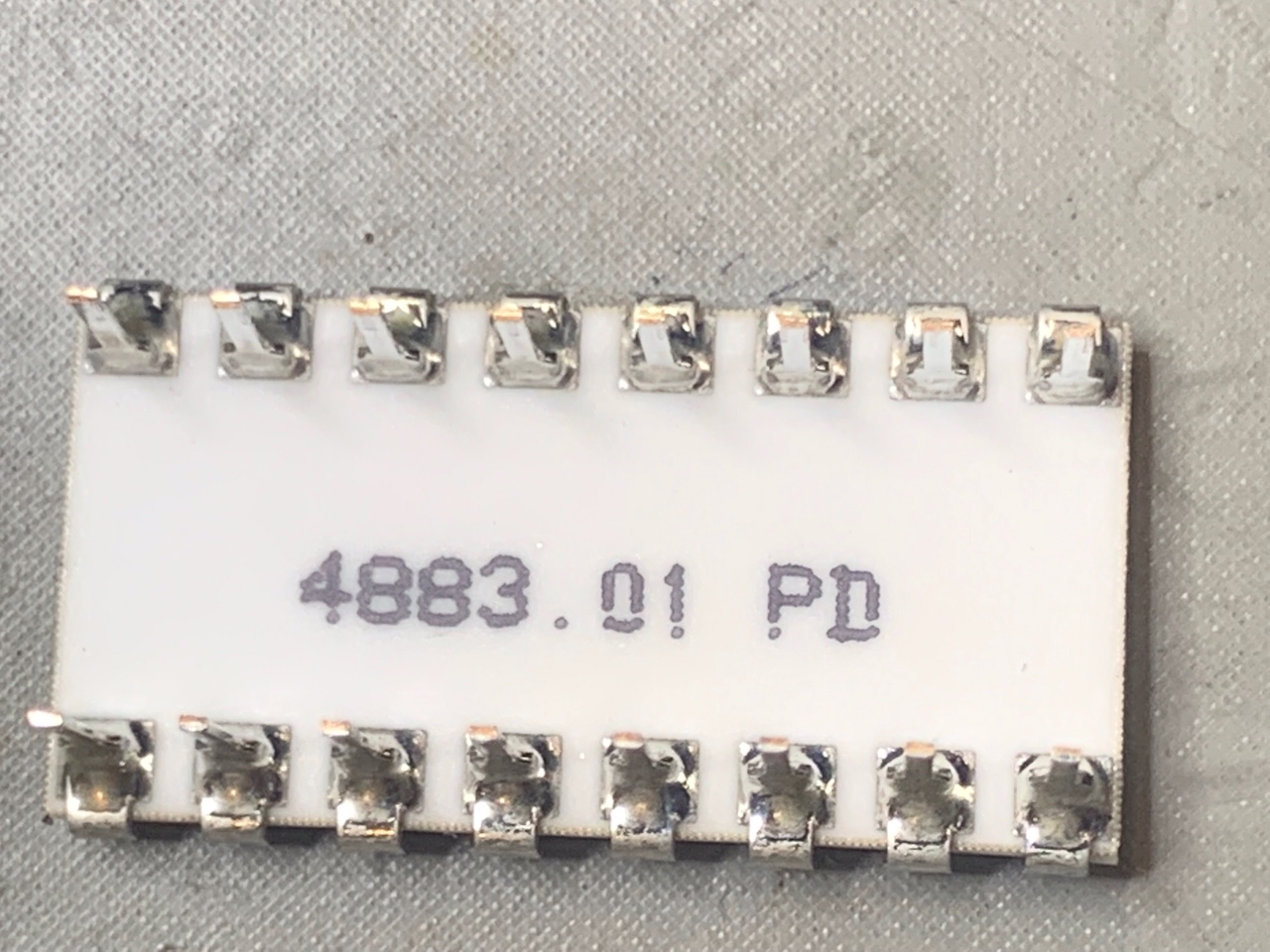

micro structure hybrid to replace a Signetics N82S129 bipolar
prom and that can be programmed same as Catalyst Semiconoductor CAT28C16A
with adapter SH-265 for which I am looking for information.
Adapter that may allow to program a 16-pin hybrid IC which would
be a replacement of N82S129N bipolar prom
and that would be programmed with universal programmer by selecting Catalyst
Semiconductor CAT28C16A 24-pin parallel EEPROM device;
there should exist such adapter called Sh-265 but not easy to find information
about it : if you have any detail thank you to contact me.
If i compare the datasheets for that one and the C28c16, then
i stuck with the differences that the n82s129n has CE1 and CE2
The Cat28c16A has CE OE and WE
I try to find out a schematic how the white eeprom could fit in this picture.
The 24 pin Cat28c16 has more in and output porta so those can fall off and
then you end up with nearly the 16 pin that are needed.
I m stuck with WE OE and CE input
Adapter to test 2114 SRAM with
Hilo All-11 courtesy Gonzalo Fernandez Val from Spain
In the HILO ALL-11 select to test a 6264 SRAM, put a 2114 SRAM
in the adapter built and
run the test. If after the test the screen shows the image depicted in the
image the 2114 SRAM is good.
I have used in the adapter a 32 pin socket instead of a 28 pin socket in case
I upgrade in
the future the adapter to check for other more bigger types of RAM
P.S.: if you have any adapter for the hilo programmers thank you
to send any diagram or photo at matthieu.benoit@free.fr
in order to contribute to this page.
GAL16V8B_U4.pld Atmel WINCUPL source
- Jedec file of the Lattice GAL16V8B
U4 Top board (.JED- Shift-Click to download)
courtesy of Roberto from italy here you find
the description of a very usefull adapter in order to programm plcc32 rect eprom
and plcc 20, plcc28 Gals
According to the type of component -Pal, Rom- and the size of memories, there
are pins in less and in different positions, or in a perfect correspondence.
In the table there are the pinout of the families of components; I used the
adapter with Intel and Winbond Flash from 256k to 2mb and with GAL 22v10 of
the various manufacturers, always with components that were products in dip
and also in plcc. If there are doubts about pinout of other components see the
respective datasheet.
Attached a picture of the adapter and a pinout
table.
a70x.exe
to program ALTERA EPM7128LC84 with adapter ADP-EPM7128-PL, EP7064LC68
with adapter ADP-EP7064-PL68, EP7064LC84 with adapter ADP-EPM7064-PL84,
EPM7096LC68 with adapter ADP-EPM7096-PL68, EPM7096LC84 with adapter ADP-EPM7096-PL84,
EPM7128QC100 with adapter ADP-EPM7128-Q, EPM7096QC100 with adapter ADP-EPM7096-QA,
EPM7064QC100 with adapter ADP-EPM7064-Q/QA, EPM7064LC44, EPM7044TC44
with adapter ADP-EPM7064-PL44/TQ (Release V3.16)
for ALTERA MAX7000 EPM7032 family on ALL03 / ALL03A/ PROMA3/ EXPRO programmers.
I have built my adapter by wiring 2 DIL8 socket in this way:
name A the socket you'll insert into the ALL07 DIL40 zif socket,
name B the socket you'll put the pic12c50x into
You have to wire:
A pin1 -> B pin4
A pin2 NC
A pin3 NC
A pin4 -> B pin8
A pin5 NC
A pin6 -> B pin6 (coincident)
A pin7 -> B pin7 (coincident)
A pin8 -> B pin1
If the wiring is correct, when you insert the A socket into the zif you
can verify that:
ZIF pin17 -> PIC pin4 ZIF pin24 -> PIC pin1
ZIF pin18 NC ZIF pin23 -> PIC pin7
ZIF pin19 NC ZIF pin22 -> PIC pin6
ZIF pin20 -> PIC pin8 ZIF pin21 NC
to be used with the folowing adapter file a68705.exe
to program MOTOROLA MC68705R3, MC68705U3, MC68705R5, MC68705U5 with adapter
ADP-68705, MC68705P3, MC68705P5 with adapter ADP-68705/P3
for Altera EPM3032ALC44/TC44, EPM3064ALC44/TC44 and EPM7064AELC44/TC44
This is only for ALL07 (executable is A7064.exe) as ALL03 does NOT know any
MAX7000AE nor MAX3000A.
This Adapter is necessary to program CPLDs with locked JTAG pins, so not a simple
ISP Adapter.
Schematic contains pinout for all available packages.
for Atmel ATF1502AS/ASL and ATF1504AS/ASL CPLDs. This Adapter is necessary to
program CPLDs
with locked JTAG pins, so not a simple ISP Adapter. This is only for ALL07 (executable
is A1500.exe)
as ALL03 do NOT know any ATF1502/ATF1504 CPLDs.
Schematic contains pinout for PLCC44 and TQFP44 packages.
for Atmel ATF1504AS/ASL and ATF1508AS/ASL CPLDs . This Adapter is necessary
to program CPLDs
with locked JTAG pins, so not a simple ISP Adapter. ALL03/ALL07 executable(s)
is A1500.exe, however
ALL03 does NOT support all package types.
Schematic contains pinout for PLCC84, TQFP100, PQFP100 and PQFP160 packages.
for Philips CoolRunner CPLDs Philips PZ3032-/CS/NS, PZ3064, PZ5032-/CS/NS, PZ5064-/CS/NS
and Xilinx XCR3032, XCR3064, XCR5032, XCR5064, XCR3032A, XCR3032C, XCR5032C,
XCR3064A, XCR5064C
ALL03 (executable is Apz5032.exe) does
NOT know Philips CS/NS nor Xilinx A/C types.
ALL07 knows all of them (executable is Apz5032.exe),
however to program Xilinx one have to select the
matching Philips type (the DIE is the same).
This Adapter is necessary to program CPLDs with locked ISP/JTAG pins, so not
a simple ISP Adapter.
Schematic contains pinout for PLCC44 and TQFP44 packages.
for Philips PZ3064-/CS/NS, PZ5064-/CS/NS, PZ3128-/CS/NS, PZ5128-/CS/NS
and Xilinx XCR3064, XCR5064, XCR3064A, XCR5064C, XCR5128, XCR3128, XCR5128C,
XCR3128A
ALL03 (executable is Apz5032.exe) does
NOT know Philips CS/NS nor Xilinx A/C types.
ALL07 knows all of them (executable is Apz5032.exe),
however to program Xilinx one have to select the
matching Philips type (the DIE is the same).
This Adapter is necessary to program CPLDs with locked ISP/JTAG pins, so not
a simple ISP Adapter.
Schematic contains pinout for PLCC68 and PLCC84 packages.
for Philips PZ3064-/CS/NS, PZ5064-/CS/NS, PZ3128-/CS/NS, PZ5128-/CS/NS
and Xilinx XCR3064, XCR5064, XCR3064A, XCR5064C, XCR5128, XCR3128, XCR5128C,
XCR3128A
ALL07 knows all of them (executable is Apz5032.exe),
however to program Xilinx one have to select the
matching Philips type (the DIE is the same).
Adapter is NOT supported by ALL03 at all, however one might use pinout from
this Adapters e.g. PQ100
CPLDs and wire it to PLCC84 Adapter (to ADP-PZ5064).
This Adapter is necessary to program CPLDs with locked ISP/JTAG pins, so not
a simple ISP Adapter.
Schematic contains pinout for PQ100, VQ100, TQ100, TQ128 and PQ160 packages.
Note: due bonding differences Adapter for PQ100 need a jumper to select type,
where others not.
For Lattice ispGAL22V10, executable for ALL03 is agds.exe
and for ALL07 is agds.exe
This Adapter is necessary to program ispGAL22V10 in ISP mode, which is unique
for Lattice ispGALs only, however this IC can be programmed as well in GAL mode
(simply use any 22V10 GAL mode/programmer).
Schematic contains pinout for PLCC28 and SSOP28 packages.
For Lattice ispGDS18, executable for ALL03 is agds.exe
and for ALL07 is agds.exe
This Adapter is necessary only for ispGDS18, other ispGDS types (ispGDS14 and
ispGDS22)
can be programmed without any special adapter (no idea why it is like that).
http://mpu51.tripod.com/eprom/eprom.html
Adapter (PCB) DIP32 to PLCC32,SOL8 (SMT socket) ; Adapter (PCB) DIP32 to PLCC32,
SOL8 ( Thruhole socket) ; Willem EPROM Programmer EPROM,EEPROM,FLASH Burnner
(Vpp 12.5V,21V,25V) and adapters Resource. http://f5jtz.free.fr/pjacquet/technik.htm
converters diagrams (DIL8 to PLCC32, DIL40 to PLCC44, DIL32 to TSOP32, for PIC16C64/74
in PLCC44, for PIC16C54 in SSOP20, for PAL16V8 in PLCC20, 1Mbit Adapter for
2764/27512 programmers, and various programmers diagrams.)
Refer to Memory & Pld pages
to see other links about other eprom Programmers and programmable devices.
Also Stag pp39 MOS programmer resource
page ; other resources available here. http://www.logicalsys.com Logical Systems,Adapter,Adapters,Programming
Adapters, Socket Adapters,Prototype Adapters,Emulation Technology, Adapters.com,
Adaptors, Ironwood Electronics, PLCC, QFP, DIP, TQFP, PQFP, SOIC, TSSOP, SSOP,Yamaichi,
Enplas, EPROM, EPROM Programmer, Emulator

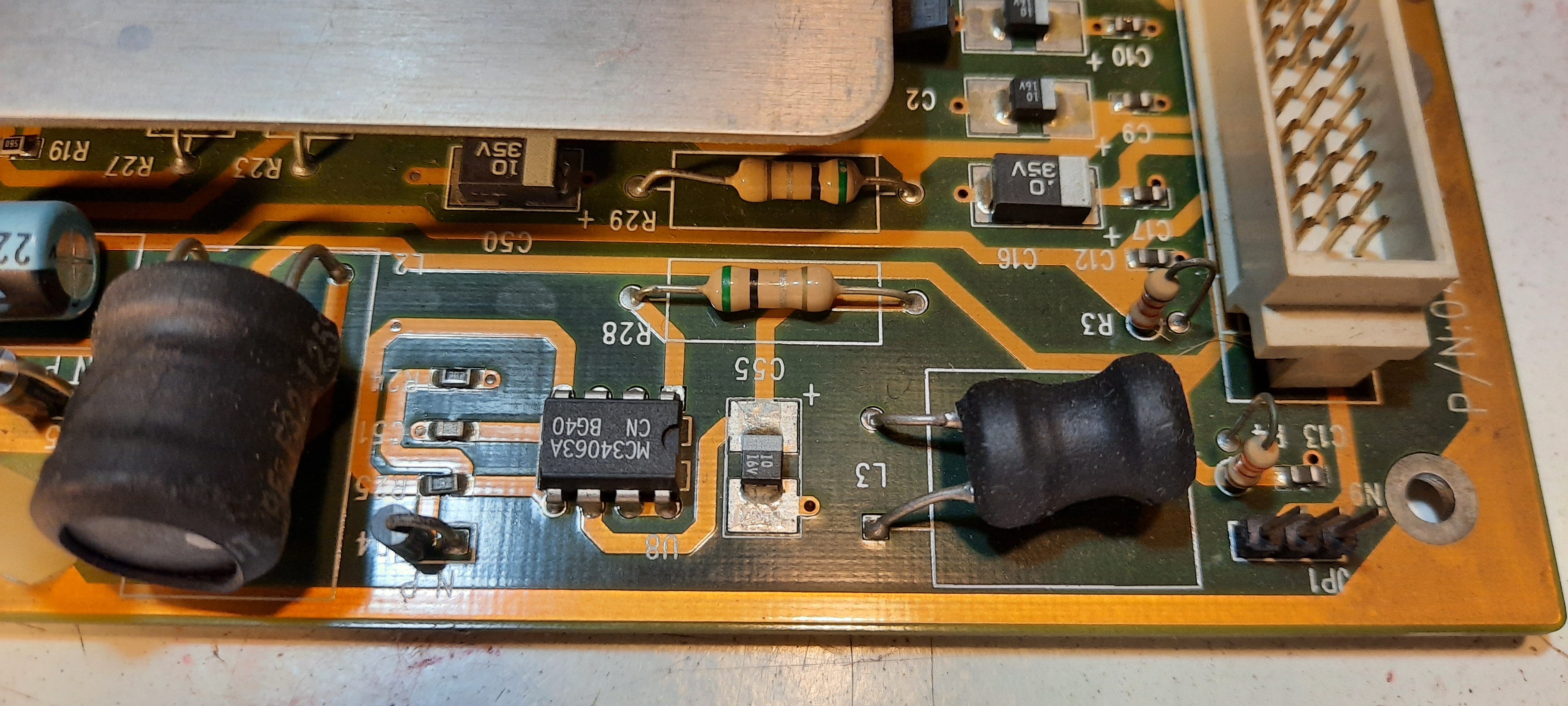

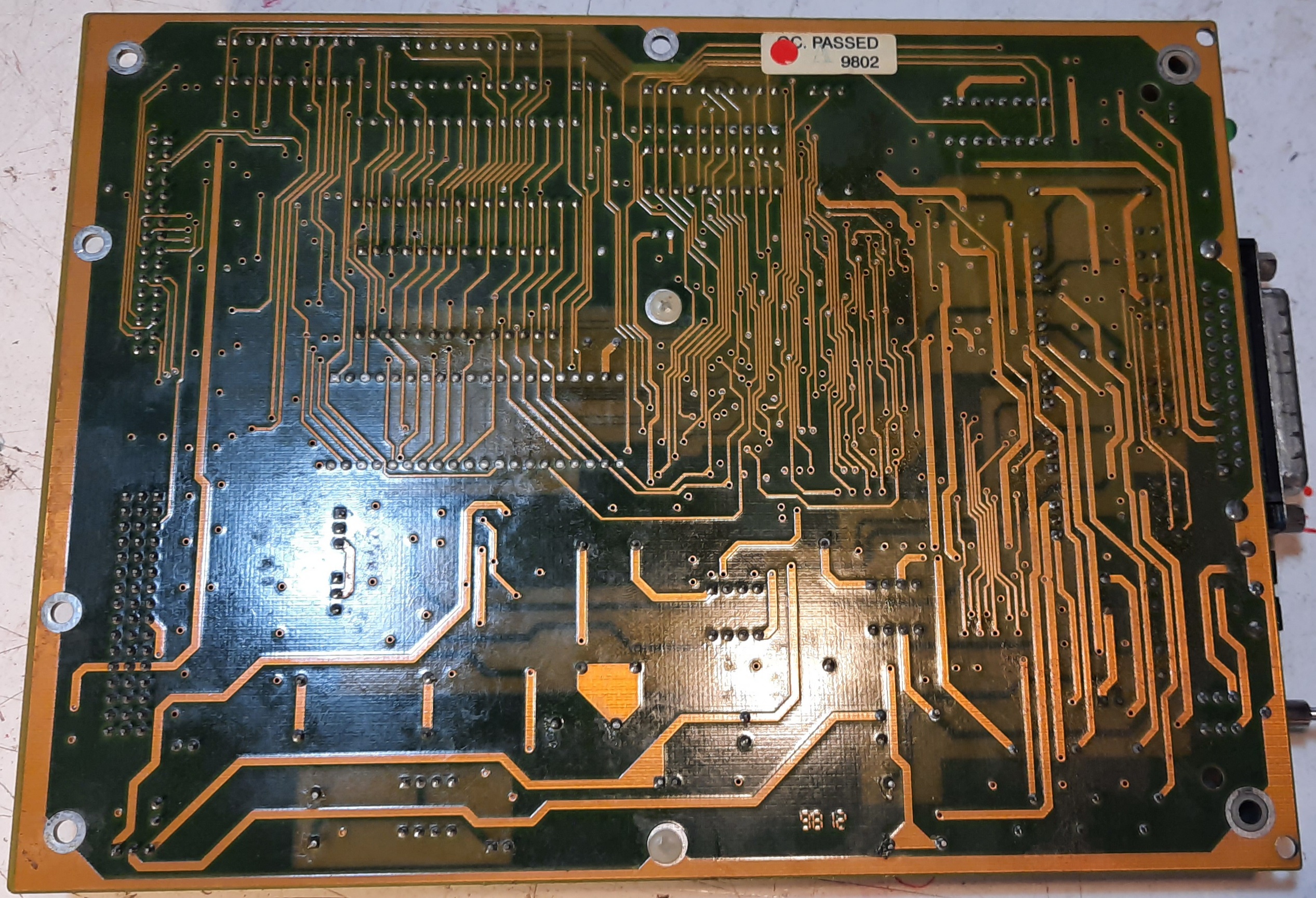

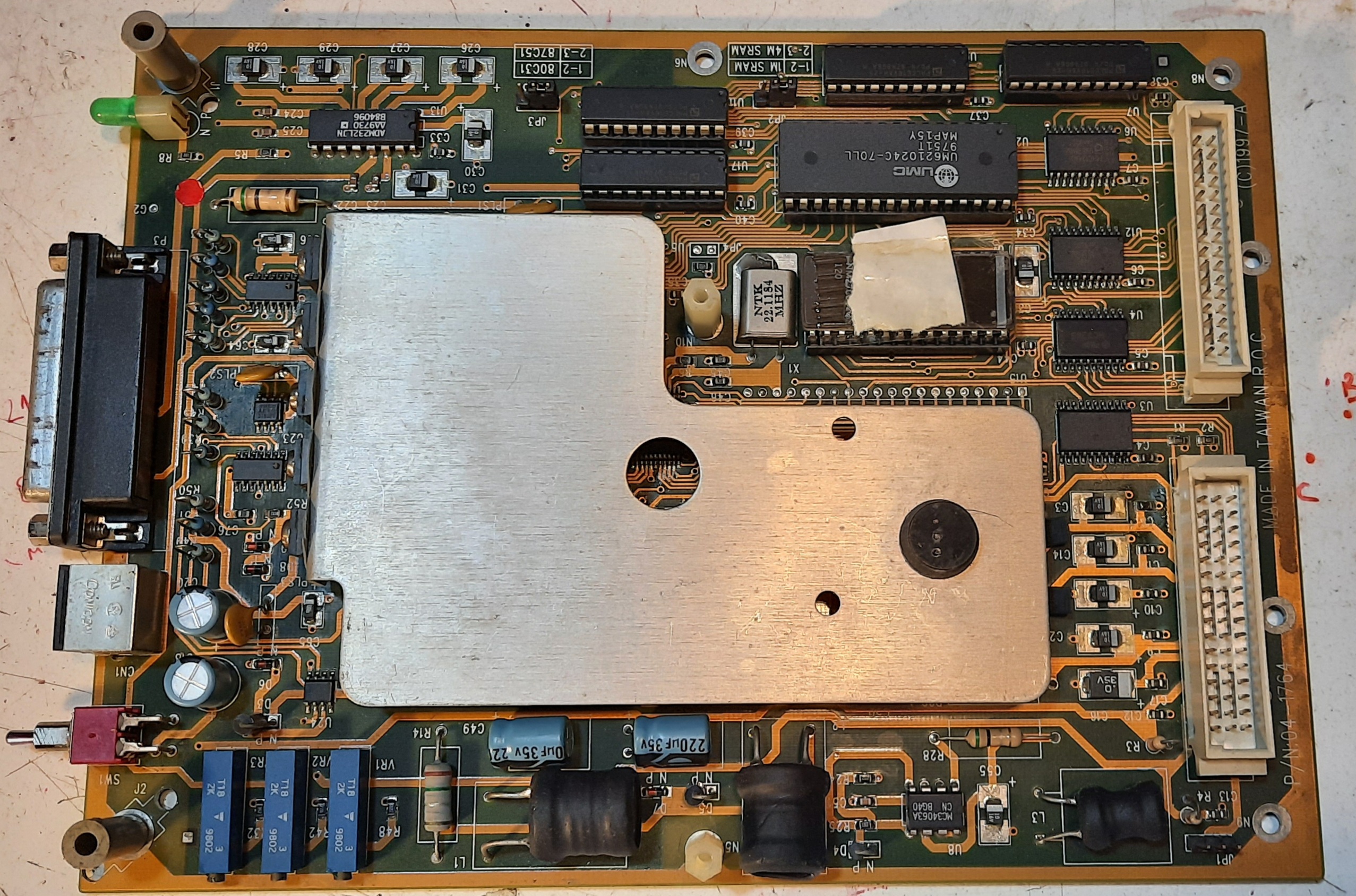

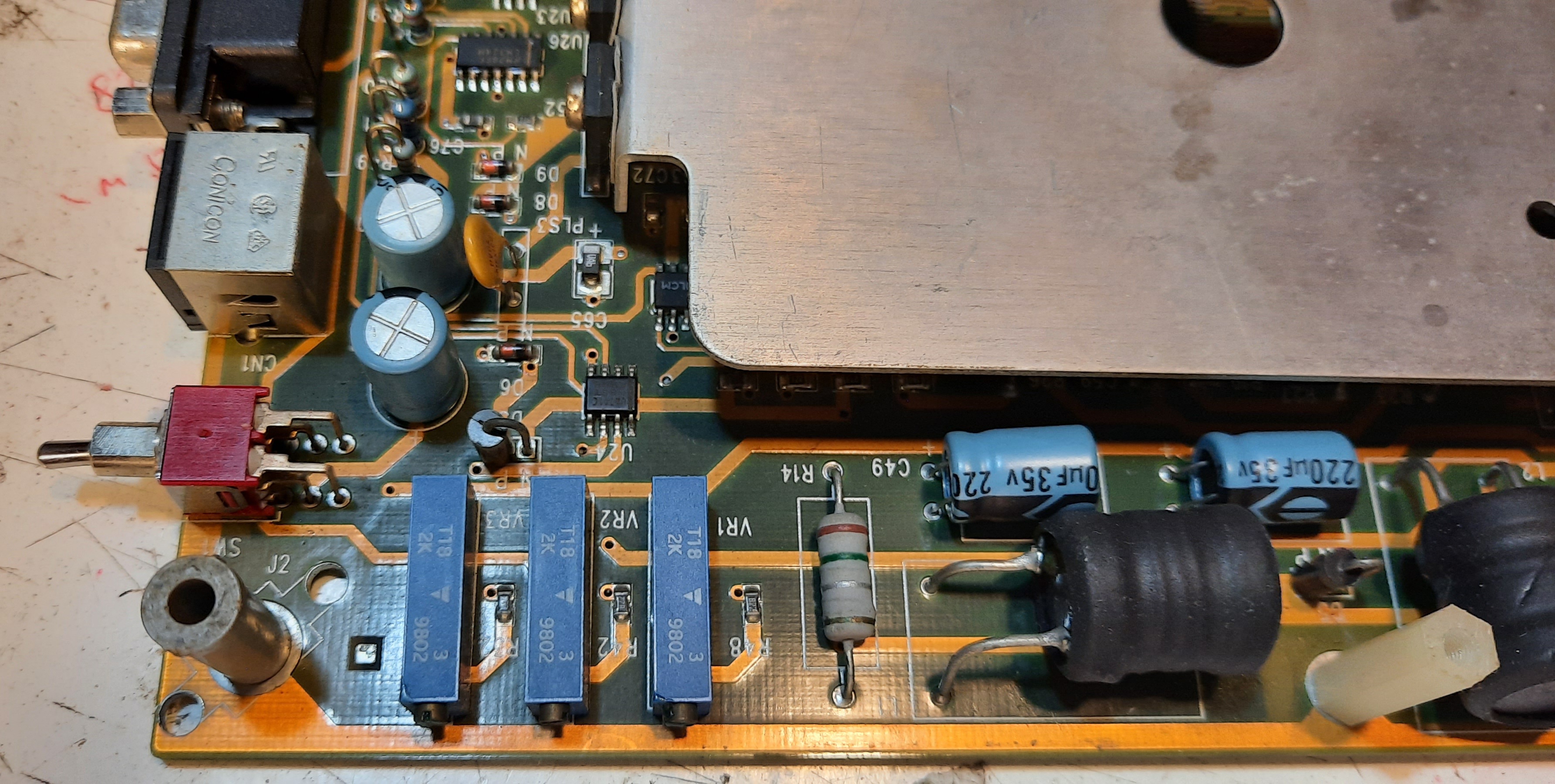

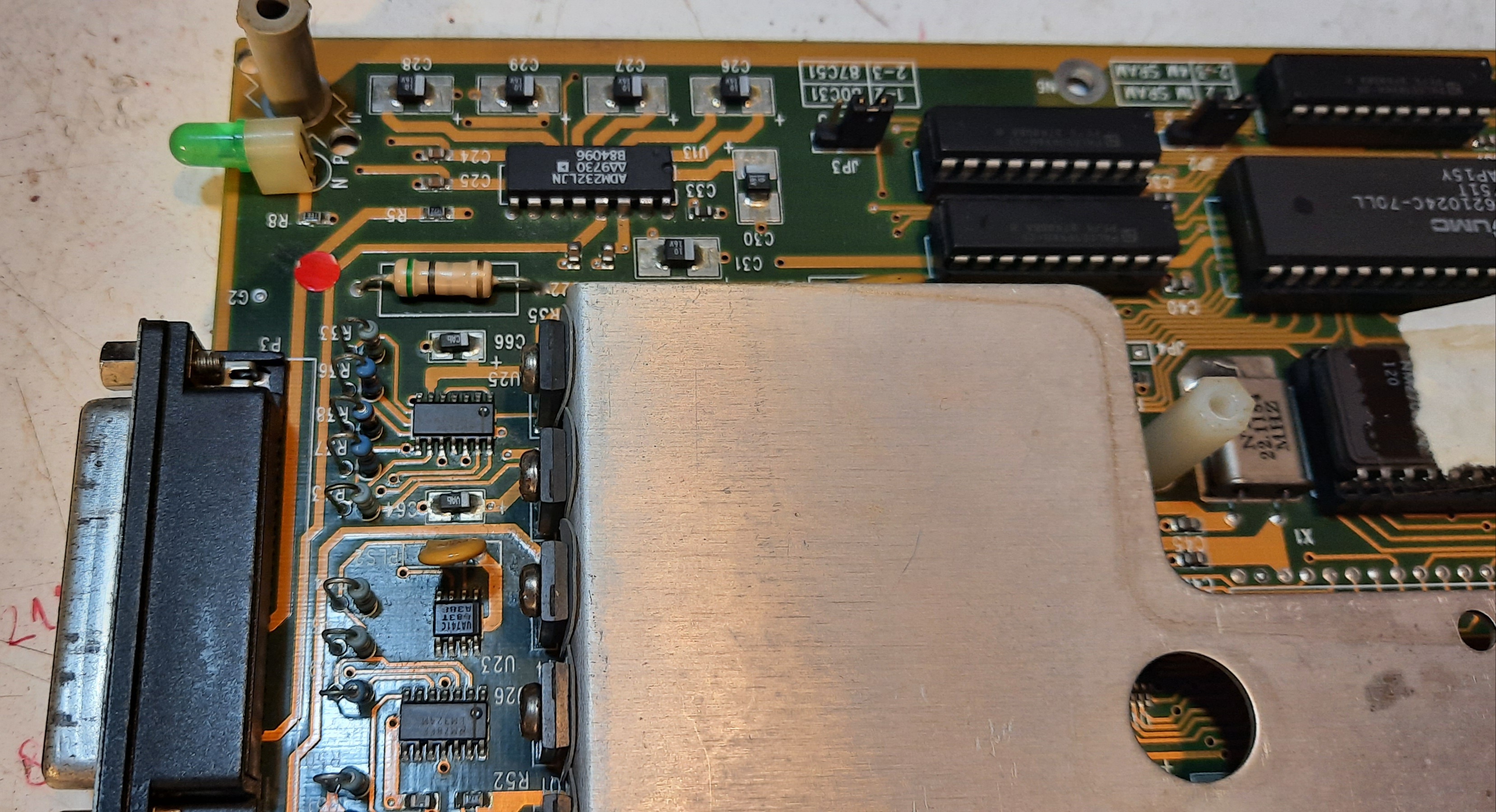

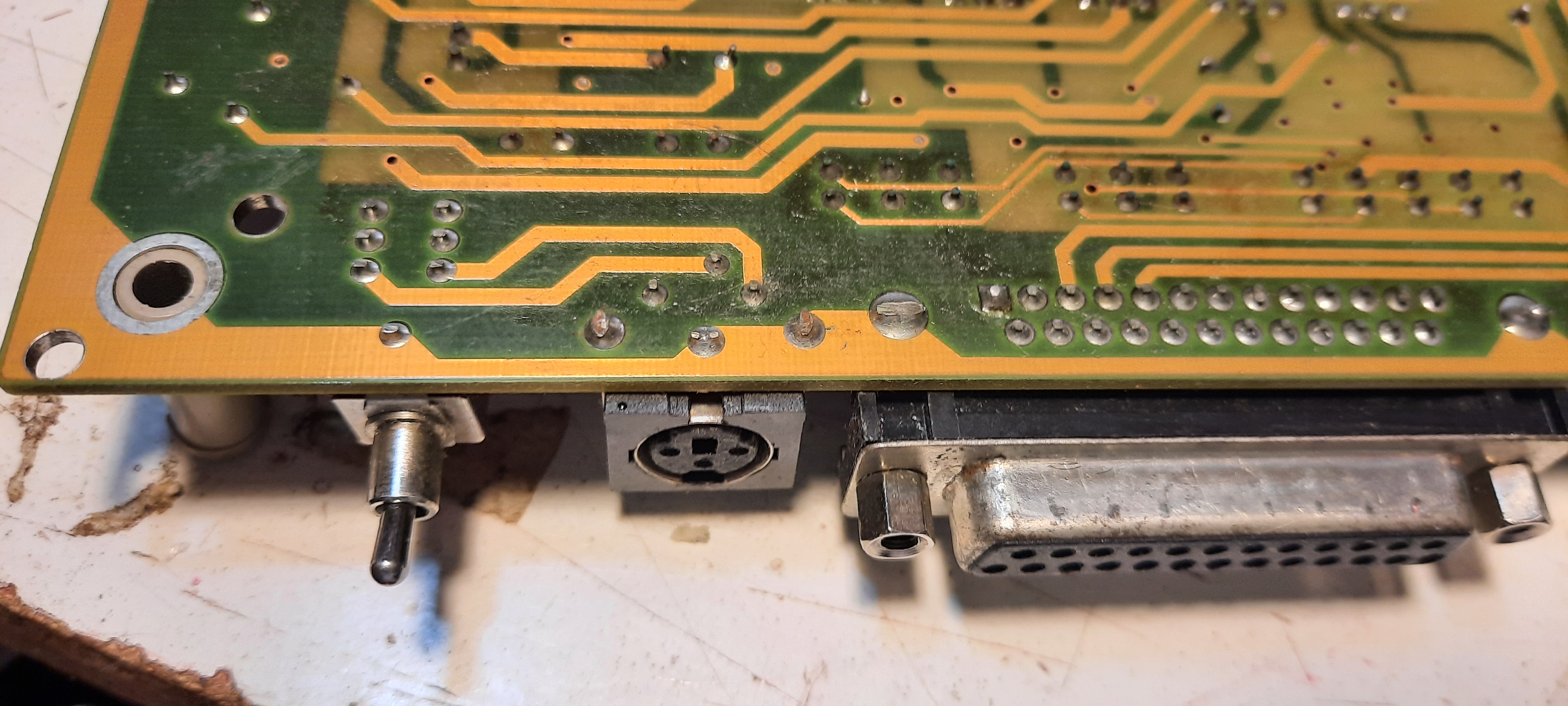

Hilo ALL-11 programmer : this programmer is interesting because it can program
devices that newer programmers no longer support.
******
If you look forward for other information about this universal device Programmer,
do not hesitate to contact me by e-mail at: matthieu.benoit@free.fr
.
Important Notice: Also if you have any data about this programmer, adapters diagrams,
do not hesitate to contribute to this page.
Si vous recherchez des informations pour ce programmateur, vous
pouvez me contacter par e-mail :
matthieu.benoit@free.fr . De même si vous avez des informations sur
ce programmateur, n'hésitez pas à contribuer à cette page.
hilo all11 brochure (.PDF- 4
pages -20.98Mb)
Software Release
ALL-11 Family ALL-11C / ALL-11C2 / ALL-11P / ALL-11P2 / ALL-11P3 / ALL-11A
/ ALL-11AE Windows 98/ME/2000/XP (39.23 Mb Shift-Click to Download)
